- Stock: 3 remaining
- Brand: Ubiquiti
- Model: USW-Pro-Max-24-PoE
- Weight: 5.20kg
- Dimensions: 44.20cm x 32.50cm x 4.40cm
- UPC: 810084692608
Add-on items
| Image | Product | Price | Quantity | Action |
|
Ubiquiti UniFi Etherlighting Patch Cable |
HK$48 |
- + |
Add To Cart |
|
Ubiquiti UniFi WiFi 6 In-Wall Access Point, U6-IW |
HK$1820 HK$1999 |
- + |
Notify Me! |
|
Ubiquiti UniFi 8-Port Enterprise Switch, USW-Enterprise-8-PoE |
HK$4380 HK$4899 |
- + |
Add To Cart |
|
Ubiquiti UniFi 6 Enterprise WI-FI 6E Access Point, U6-Enterprise |
HK$3030 HK$3360 |
- + |
Notify Me! |
|
Ubiquiti UniFi WiFi 6 Mesh Access Point, U6-Mesh |
HK$1730 HK$1999 |
- + |
Add To Cart |
|
Ubiquiti UniFi 6 Long-Range WI-FI 6 Access Point, U6-LR |
HK$1700 HK$1910 |
- + |
Notify Me! |
|
Ubiquiti UniFi 6 Pro Wi-Fi 6 Access Point, U6-Pro |
HK$1480 HK$1599 |
- + |
Add To Cart |
|
Ubiquiti Unifi Camera AI 360, UVC-AI-360 |
HK$4170 HK$4410 |
- + |
Notify Me! |
|
Ubiquiti UniFi 48-Port POE+ 750W Enterprise switch, USW-Enterprise-48-PoE |
HK$15980 HK$16099 |
- + |
Notify Me! |

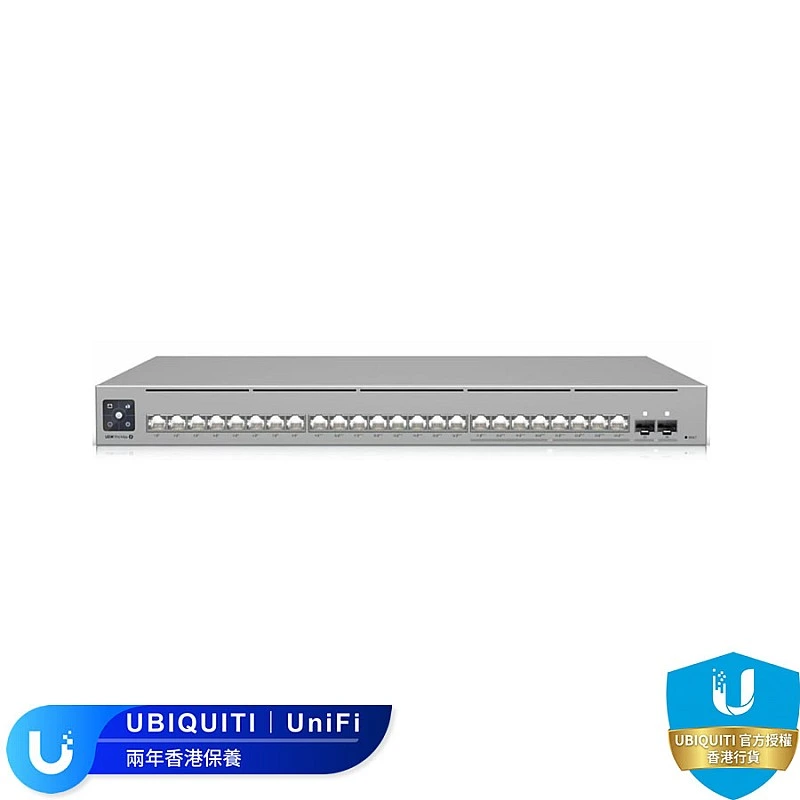

Ubiquiti UniFi Switch Pro Max 24 PoE (USW-Pro-Max-24-PoE) — Enterprise-Grade Etherlighting™ Layer 3 Multi-Gigabit PoE++ Switch
Experience a new level of enterprise network management and power delivery! The UniFi Switch Pro Max 24 PoE (USW-Pro-Max-24-PoE) is a powerful 24-port Layer 3 multi-gigabit switch. Equipped with exclusive Etherlighting™ illumination technology, it perfectly supports up to 400W total available high-power PoE++ and 10G SFP+ fiber uplinks, bringing you an unparalleled network hub and management experience.
An all-in-one featuring 8 x 2.5G RJ45 ports, 16 x 1G RJ45 ports (supporting PoE+ and PoE++), and 2 x 10G SFP+ fiber uplink slots. Whether building high-density Wi-Fi 7 wireless networks, PTZ surveillance camera arrays, or handling bandwidth-intensive office networks and AV transmissions, the USW-Pro-Max-24-PoE provides your enterprise with top-tier networking and power solutions.
Enterprise Application Scenarios (Perfect for Enterprise)
Ready for 2.5G / 10G High-Speed Networks
Equipped with two 10G SFP+ interfaces, eight 2.5 GbE ports, and sixteen 1 GbE ports to perfectly satisfy the ultimate data transmission needs of large enterprises and next-gen Wi-Fi 7 APs, saying goodbye to network bottlenecks.
Layer 3 Advanced Routing Features
Supports DHCP server, Inter-VLAN routing, and Static Routing, significantly reducing the load on core routers and enhancing overall network performance and security.
Etherlighting™ Illumination Technology
Exclusive illumination technology intuitively displays port location, speed, and VLAN status through color and brightness, making rack management and troubleshooting easier than ever.
400W High-Power PoE++ Supply
Delivers up to 400W total PoE availability and features 16 PoE++ (60W) ports, perfectly supporting high-power-consumption network devices and simplifying cabling requirements.
Hardware Specifications
| Device Type | Layer 3 Managed PoE++ Multi-Gigabit Switch |
|---|---|
| Networking Interface |
1G RJ45: (16) 1 GbE (8 PoE+ ports; 8 PoE++ ports) (1G/100M/10M) 2.5G RJ45: (8) 2.5 GbE (All PoE++) (2.5G/1G/100M/10M) SFP+ Uplink: (2) 10G SFP+ (10G/1G) |
| PoE Output |
Total PoE Availability: 400W Max Power Per Port: PoE+ 32W / PoE++ 60W |
| Switching Performance |
Switching Capacity: 112 Gbps Non-Blocking Throughput: 56 Gbps Forwarding Rate: 83.328 Mpps |
| Management & Special Features | 1.3" LCM touchscreen, Etherlighting™ port illumination, DC power backup ready, Layer 3 routing support (DHCP Server, Inter-VLAN Routing) |
| Dimensions | 442 x 325 x 44 mm (Standard 1U Rackmount) |
| Weight | 5.1 kg (5.2 kg with rackmount brackets) |
| Power Method | (1) 100-240V AC, 50/60 Hz Universal Input (1) USP RPS DC Backup Power Input |
| Power Supply | AC/DC, Internal (Provides up to 550W) |
| Max. Power Consumption | Max 50W (Excluding PoE Output) / 450W (Including Max PoE Output) |
| Certifications | CE, FCC, IC |
| Warranty (Authorized Goods) | 2-Year Limited Carry-in Warranty |
Device Details & Appearance
Package Contents
