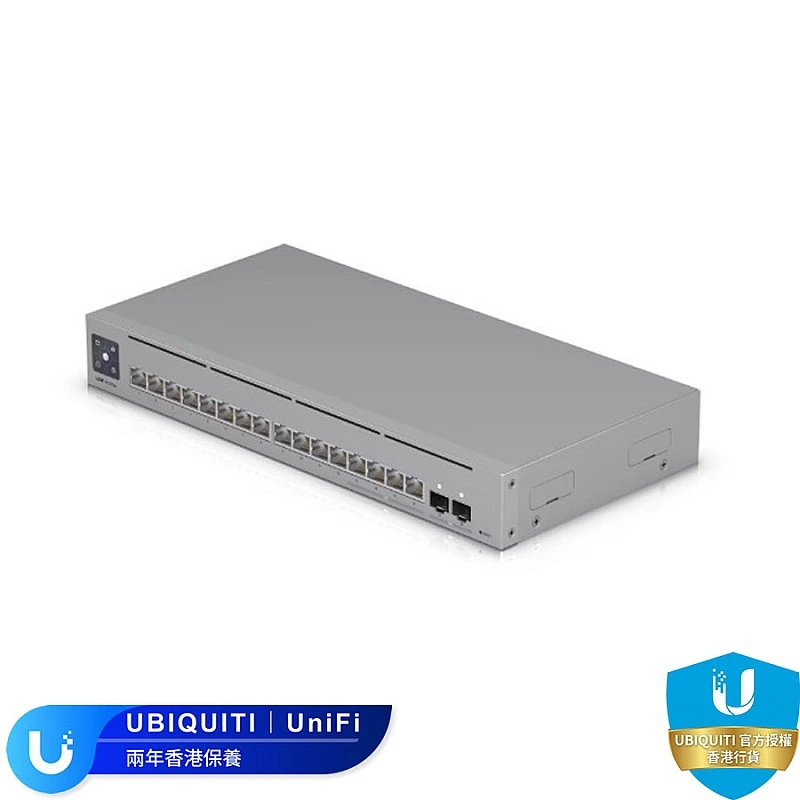

Ubiquiti UniFi Switch Pro Max 16 (USW-Pro-Max-16) — 2.5G Layer 3 Etherlighting™ Switch Built for Enterprise
Experience the next generation of enterprise networking! The UniFi Switch Pro Max 16 (USW-Pro-Max-16) is a powerful 16-port Layer 3 switch equipped with innovative Etherlighting™ technology. It perfectly supports 2.5G and 1G device connections and features 10G SFP+ fiber uplinks, bringing you an unparalleled networking experience.
All in one device: 12 GbE RJ45 ports, 4 2.5G RJ45 ports, and 2 10G SFP+ fiber uplink slots. Whether building a high-density office network or handling high-bandwidth connectivity and AV production, the USW-Pro-Max-16 provides a top-tier network hub solution and supports multiple mounting options (desktop, wall, and rack mount).
Enterprise Application Scenarios (Perfect for Enterprise)
Ready for 2.5G / 10G Backbone Upgrades
Equipped with two 10G SFP+ interfaces and four 2.5 GbE RJ45 ports, it perfectly meets the demands of next-generation high-speed data transmission and eliminates network bottlenecks.
Advanced Layer 3 Routing Features
Supports DHCP server, Inter-VLAN routing, and Static Routing, significantly reducing the load on core routers and enhancing overall network performance and security.
Etherlighting™ Technology
Exclusive lighting technology intuitively displays port location, speed, and VLAN/network status through color and brightness, making rack management and troubleshooting easier than ever.
84 Gbps Ultra-High Switching Capacity
Provides up to 84 Gbps of total switching capacity and 42 Gbps of non-blocking throughput, ensuring ultra-low latency and stable transmission even in dense network environments.
Hardware Specifications
| Device Type | Layer 3 Managed Switch |
|---|---|
| Networking Interface |
GbE RJ45: (12) 1 GbE (1G/100M/10M) 2.5G RJ45: (4) 2.5 GbE (2.5G/1G/100M/10M) SFP+ Uplink: (2) 10G SFP+ (10G/1G) |
| Switching Performance |
Switching Capacity: 84 Gbps Non-Blocking Throughput: 42 Gbps Forwarding Rate: 62.496 Mpps |
| Management & Special Features | 1.3" LCM touchscreen, Etherlighting™ port illumination, Layer 3 routing support (DHCP Server, Inter-VLAN Routing) |
| Dimensions | 325.1 x 160 x 43.7 mm (Supports rack, desktop, and wall mounting) |
| Weight | 2.1 kg (2.2 kg with mounting brackets) |
| Power Method | (1) 100-240V AC, 50/60 Hz Universal Input |
| Power Supply | AC/DC, Internal, 30W |
| Max. Power Consumption | 30W |
| Certifications | CE, FCC, IC |
| Warranty (Authorized Goods) | 2-Year Limited Carry-in Warranty |
Device Details & Appearance
Original Package Contents
