- Stock: 1 remaining
- Brand: Ubiquiti
- Model: USW-Pro-Max-24
- Weight: 4.30kg
- Dimensions: 44.20cm x 32.50cm x 4.40cm
- UPC: 810084692622
Add-on items
| Image | Product | Price | Quantity | Action |
|
Ubiquiti UniFi 48-Port POE+ 750W Enterprise switch, USW-Enterprise-48-PoE |
HK$15980 HK$16099 |
- + |
Notify Me! |
|
Ubiquiti UniFi 8-Port Enterprise Switch, USW-Enterprise-8-PoE |
HK$4380 HK$4899 |
- + |
Add To Cart |
|
Ubiquiti UniFi Etherlighting Patch Cable |
HK$48 |
- + |
Add To Cart |

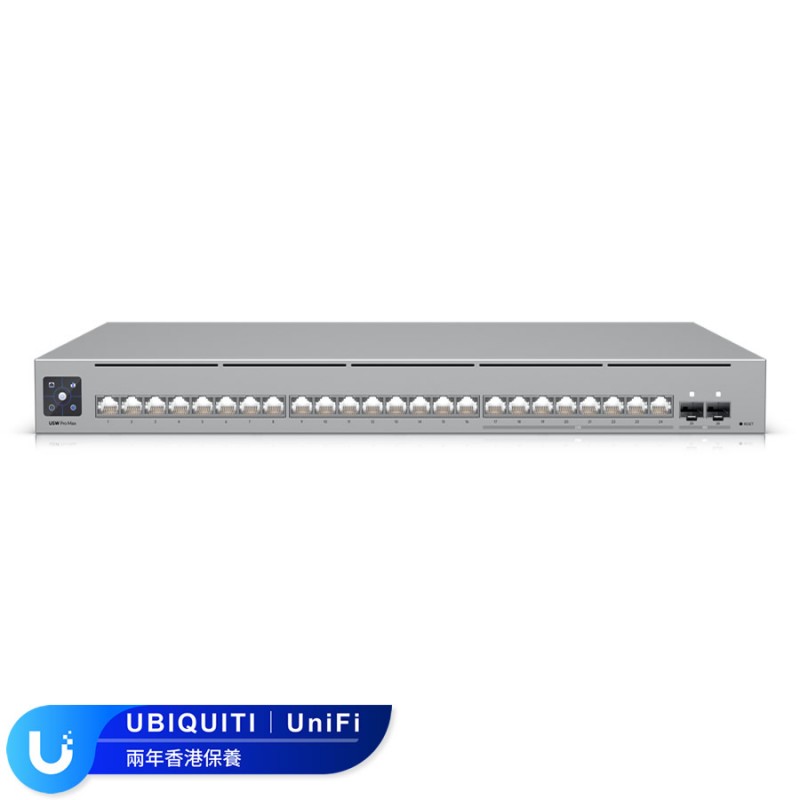

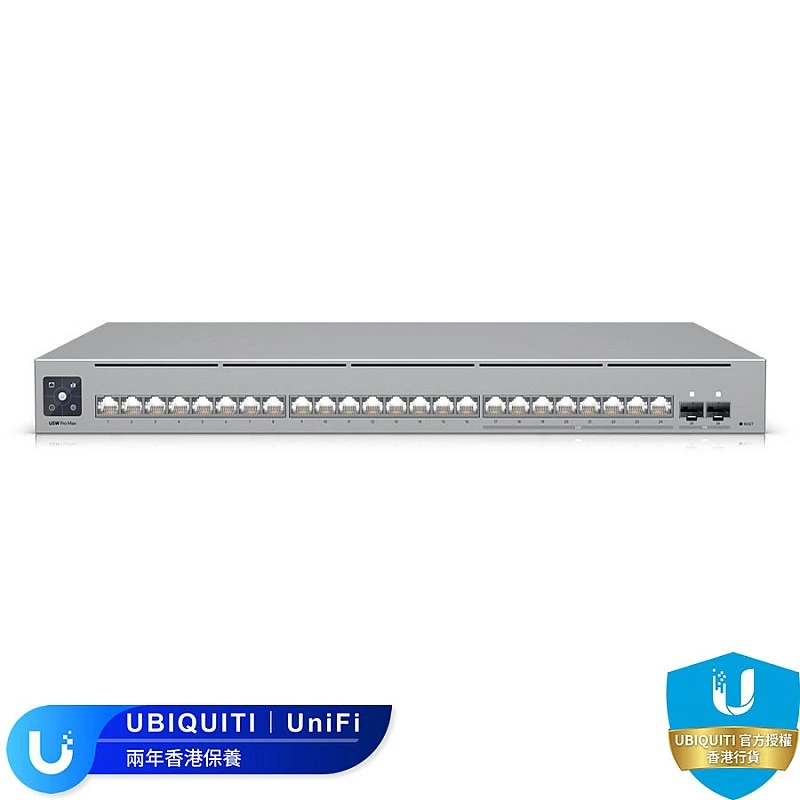

Ubiquiti UniFi Switch Pro Max 24 (USW-Pro-Max-24) — A 2.5G Layer 3 Multi-Gigabit Switch Built for Enterprise
Experience blazing-fast enterprise networking! The UniFi Switch Pro Max 24 (USW-Pro-Max-24) is a 24-port Layer 3 multi-gigabit switch featuring Etherlighting™ technology, born for modern enterprise network upgrades. It perfectly supports 2.5G high-speed device connections and comes equipped with 10G SFP+ fiber uplinks, bringing you a stable and highly efficient network experience.
It integrates 16x 1G RJ45 ports, 8x 2.5G RJ45 ports, and 2x 10G SFP+ fiber uplink slots in a single unit. Whether building a large-scale multi-device office network or handling high-bandwidth server and wireless AP connections, the USW-Pro-Max-24 provides the ultimate network hub solution for your enterprise.
Perfect for Enterprise Applications
Ready for 2.5G / 10G Backbone Upgrades
Equipped with 2x 10G SFP+ interfaces, 8x 2.5 GbE ports, and 16x 1 GbE ports, it perfectly meets the next-generation ultra-fast data transmission needs between enterprises and servers, eliminating network bottlenecks.
Advanced Layer 3 Routing
Supports DHCP server, Inter-VLAN routing, and static routing, significantly reducing the burden on core routers and enhancing overall network performance and security.
Etherlighting™ Technology
Exclusive lighting technology intuitively displays port location, speed, and VLAN status through color and brightness, making rack management and troubleshooting easier than ever.
112 Gbps Ultra-High Switching Capacity
Delivers a total switching capacity of up to 112 Gbps and a non-blocking throughput of 56 Gbps, ensuring ultra-low latency and stable transmission even in highly demanding, dense network environments.
Hardware Specifications
| Device Type | Layer 3 Managed Multi-Gigabit Switch |
|---|---|
| Networking Interface |
1G RJ45: (16) 1 GbE (1G/100M/10M) 2.5G RJ45: (8) 2.5 GbE (2.5G/1G/100M/10M) SFP Uplink: (2) 10G SFP+ (10G/1G) |
| Switching Performance |
Switching Capacity: 112 Gbps Non-Blocking Throughput: 56 Gbps Forwarding Rate: 83 Mpps |
| Advanced Performance |
Supported VLANs: 1,000 MAC Address Table Size: 16,000 IPv4 Static Routes: 256 Packet Buffer Size: 1.5 MB |
| Network & Management |
Hardware Features: 1.3" LCM touchscreen, Etherlighting™ ports, DC RPS power support Layer 3 Features: DHCP Server, DHCP Relay, Inter-VLAN Routing, Static Routing Layer 2 Features: LACP Link Aggregation, STP & RSTP, IGMP Snooping, Port Isolation |
| Enclosure Material | SGCC Steel |
| Dimensions | 442 x 325 x 44 mm (Standard 1U Rackmount) |
| Weight | 4.2 kg (4.3 kg with mount brackets) |
| Power Method | (1) Universal input, 100-240V AC, 50/60 Hz (1) USP RPS DC input |
| Power Supply | AC/DC, Internal, 60W |
| Max. Power Consumption | 50W |
| Heat Dissipation | 170.6 BTU/hr |
| Operating Environment |
Operating Temperature: -5 to 40° C (23 to 104° F) Operating Humidity: 10 to 90% Noncondensing |
| ESD/EMP Protection | Air: ± 16kV, Contact: ± 12kV |
| Certifications | CE, FCC, IC, Anatel |
| Warranty | 2-Year Limited Carry-in Warranty |
Device Details & Appearance
Package Contents
