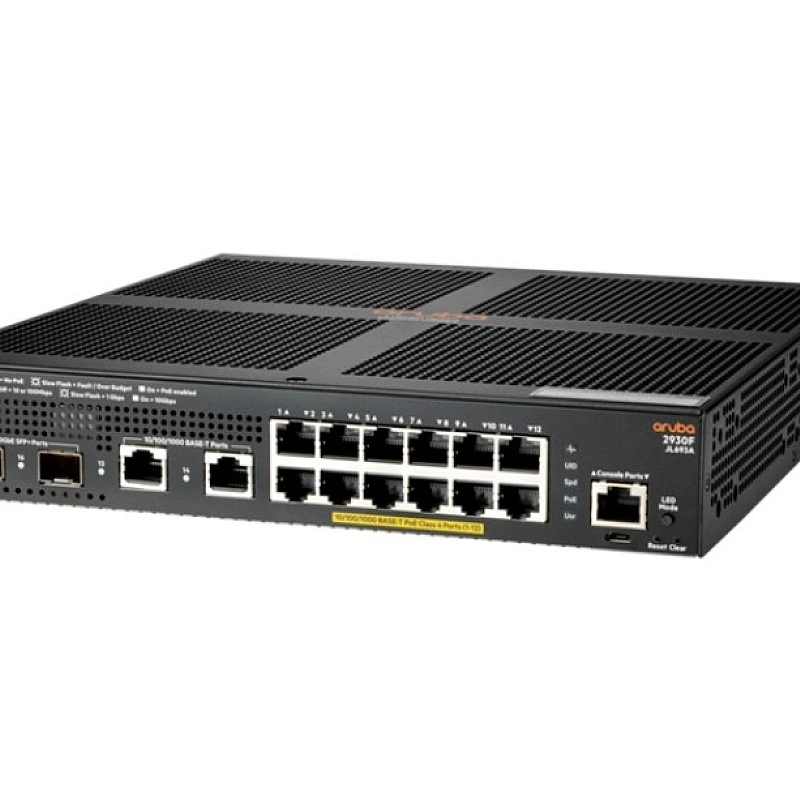

Aruba 2930F 12G PoE+ Switch, JL693A

Differentiator： Popular Aruba 16-port Gig + 10G access switch with 139 Watts PoE+ power.
This model has 12x 10/100/1000 PoE+ ports and four built-in ports (2x 10G / 1G SFP+ transceiver slots and 2x 1GBASE-T) for uplink connectivity. PoE+ is supported with a power budget of 139 Watts.

Power consumption： 170 W (maximum)

Heat dissipation： 68.2 BTU/hr (72.0 kJ/hr)

Input voltage： 90 - 264 VAC, rated

Ports： (12) RJ-45 autosensing 10/100/1000 PoE+ ports
(2) SFP+ 1/10GbE ports
(2) 1GbE ports
PHY-less

Latency： 1,000 Mb latency: < 3.8 µs
10Gbps latency: < 2.9 µs

Switching capacity： 68 Gbps

Throughput： up to 41.7 Mpps

Memory and processor： Dual Core ARM Cortex A9 @ 1016 MHz
1 GB DDR3 SDRAM
Packet buffer size: 12.38 MB 4.5MB Ingress/7.785 Egress
4 GB eMMC

PoE capability： 139 W PoE+

Management features： Aruba AirWave
Central Network Management
IMC - Intelligent Management Center
Command-line interface
Web browser
Configuration menu
SNMP manager
Telnet
RMON1
FTP
Out-of-band management (serial RS-232C or micro USB)

Warranty： Limited Lifetime Warranty

Weight： 2.2 kg

Minimum dimensions ( H x W x D)： 4.39 x 25.4 x 25.4 cm
