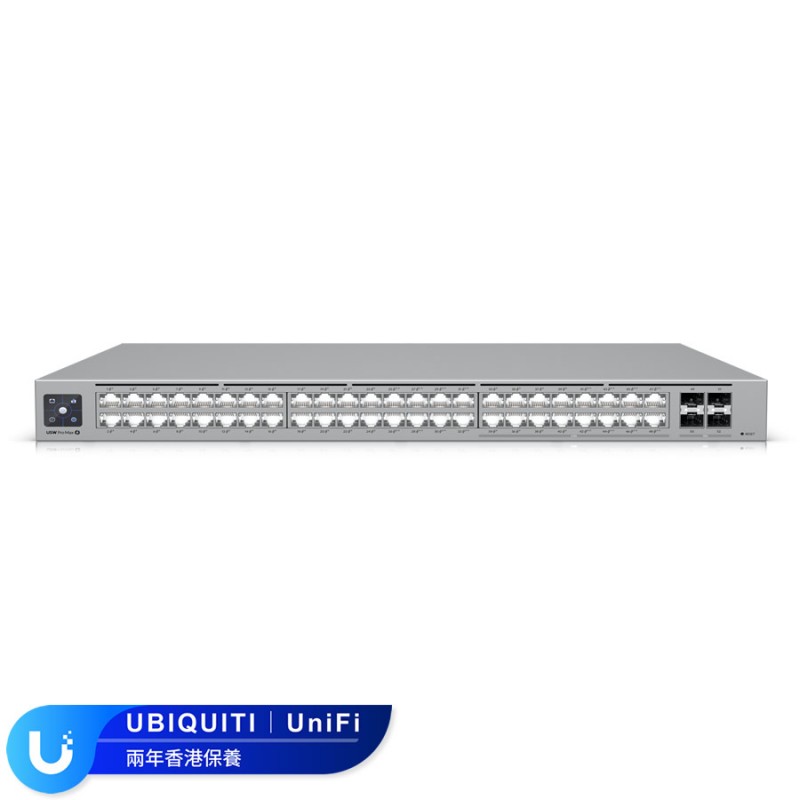

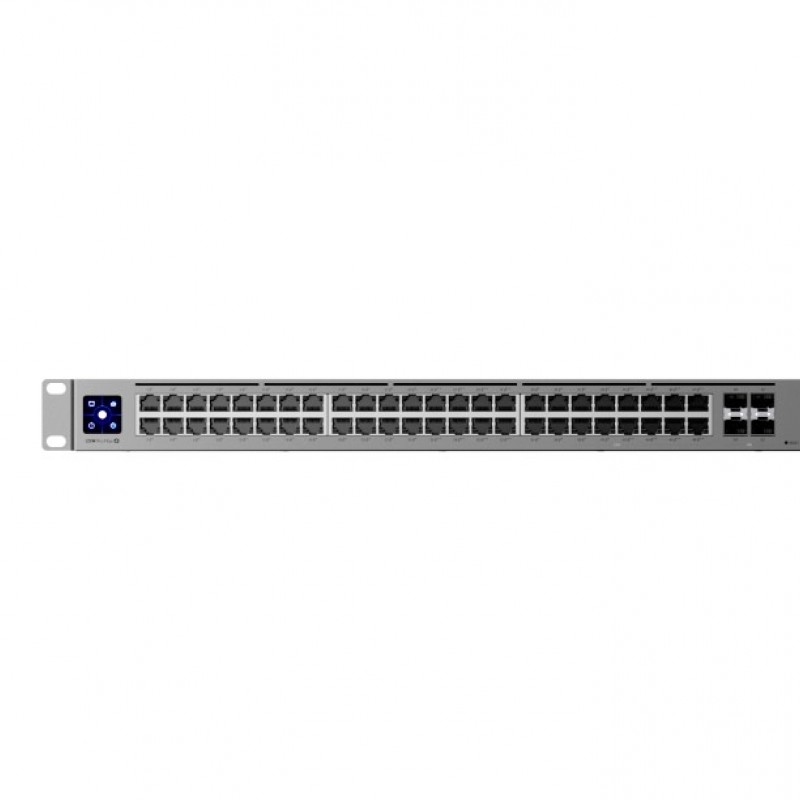

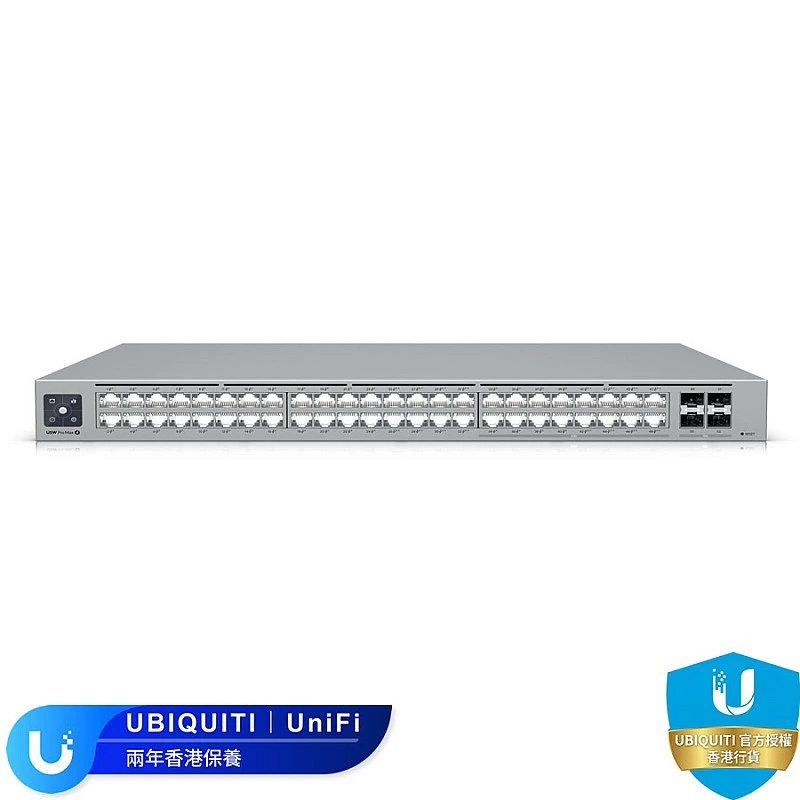

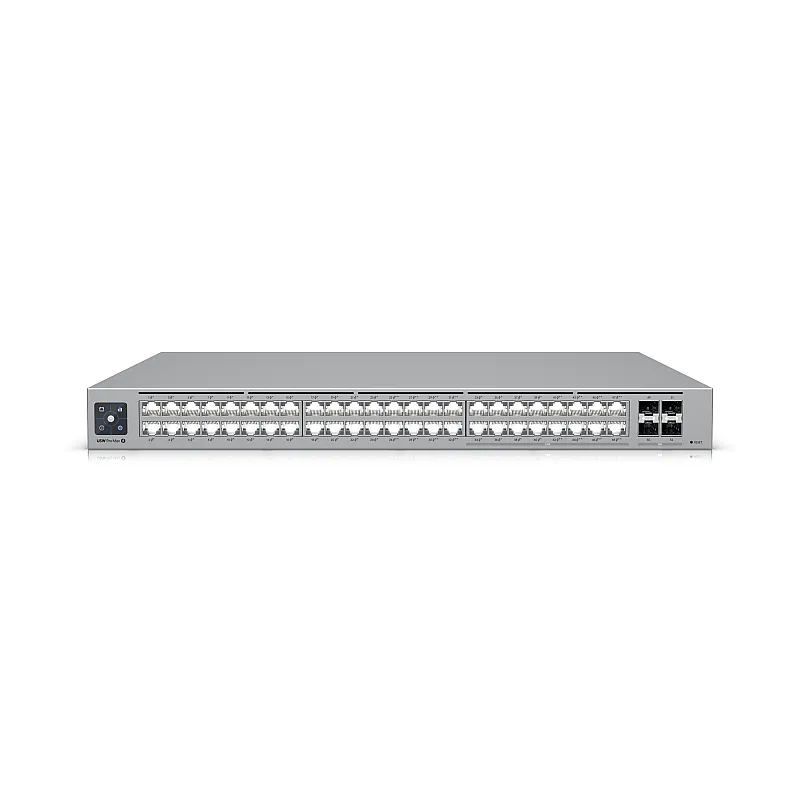

Ubiquiti UniFi Switch Pro Max 48 PoE (USW-Pro-Max-48-PoE) — Layer 3 Multi-Gigabit PoE Switch Designed for Enterprise
Experience blazing-fast enterprise-grade networking! The UniFi Switch Pro Max 48 PoE (USW-Pro-Max-48-PoE) is a high-performance 48-port Layer 3 multi-gigabit PoE switch equipped with innovative Etherlighting™ technology. It flawlessly supports 2.5G device connectivity and high-power PoE++ supply, paired with 10G SFP+ fiber uplinks, delivering an unparalleled networking and power experience.

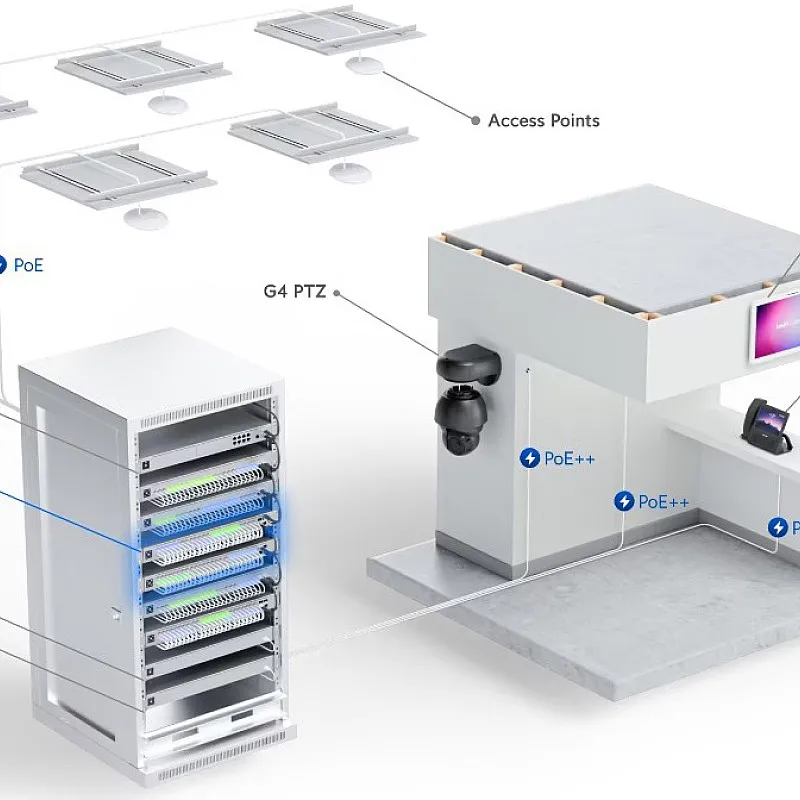

An all-in-one powerhouse featuring 32 GbE ports, 16 2.5G ports, and 4 10G fiber uplink slots. Providing up to a 720W total PoE budget, whether you are building a high-density Wi-Fi 6/7 network, a surveillance system, or handling high-speed internal enterprise data transfers, the USW-Pro-Max-48-PoE delivers the ultimate central networking solution for your business.
Perfect for Enterprise
Ready for 2.5G Upgrades & High-Power PoE++
Equipped with 16 2.5 GbE ports and up to 32 PoE++ (60W) ports with a total budget of 720W, perfectly meeting the demands of Wi-Fi 7 APs and power-hungry devices.
Advanced Layer 3 Routing
Supports DHCP server, Inter-VLAN routing, and Static Routing, significantly reducing the burden on core routers and enhancing overall network performance and security.

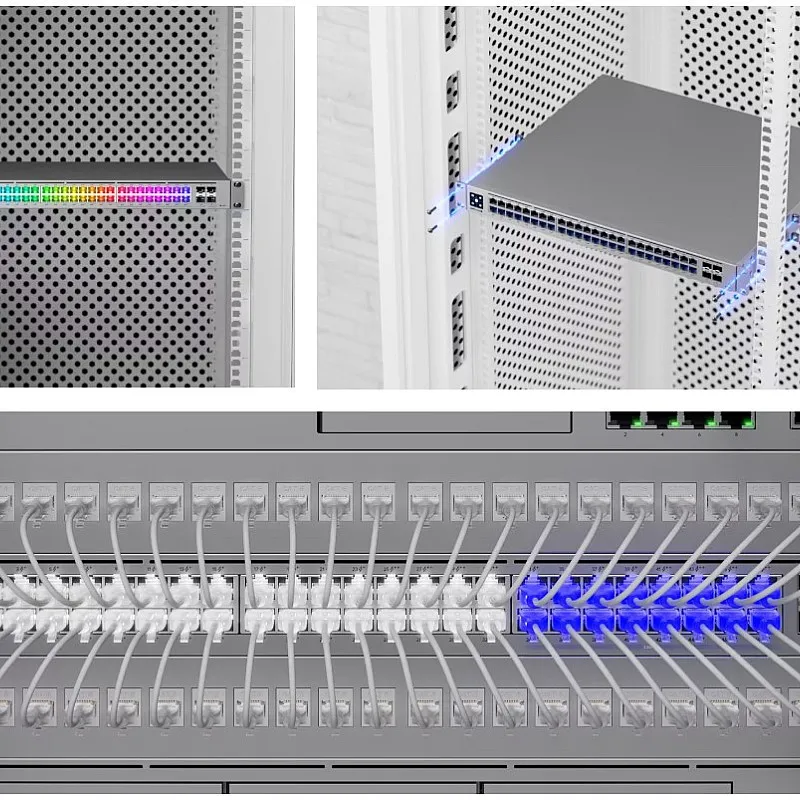

Etherlighting™ Technology
Exclusive lighting technology intuitively displays port location, speed, and VLAN status through color and brightness, making rack management and troubleshooting easier than ever.
224 Gbps High Switching Capacity
Delivers up to 224 Gbps total switching capacity and 112 Gbps non-blocking throughput, ensuring ultra-low latency even in highly demanding, dense network environments.
Hardware Specifications
| Device Type | Layer 3 Managed Multi-Gigabit PoE Switch |
|---|---|
| Networking Interface |
GbE RJ45: (32) 10/100/1000 Mbps 2.5G RJ45: (16) 1/2.5 Gbps SFP+ Uplink: (4) 10G SFP+ |
| PoE Interface |
PoE/PoE+ (30W): (16) Ports (1-16) PoE++ (60W): (32) Ports (17-48) Total PoE Budget: 720W |
| Switching Performance |
Switching Capacity: 224 Gbps Non-Blocking Throughput: 112 Gbps Forwarding Rate: 166.66 Mpps |
| Management & Special Features | 1.3" LCM touch screen, Etherlighting™ technology, Layer 3 routing support (DHCP Server, Inter-VLAN Routing) |
| Dimensions | 442.4 x 399.6 x 43.7 mm (Standard 1U rack-mountable) |
| Weight | 6.2 kg (6.3 kg with mounting brackets) |
| Power Method | (1) 100-240V AC, 50/60 Hz universal input (1) USP RPS DC backup power input |
| Power Supply | AC/DC, Internal, 820W |
| Max. Power Consumption | 100W (Excluding PoE output) |
| Certifications | CE, FCC, IC |
| Warranty | 2-Year Limited Carry-in Warranty |

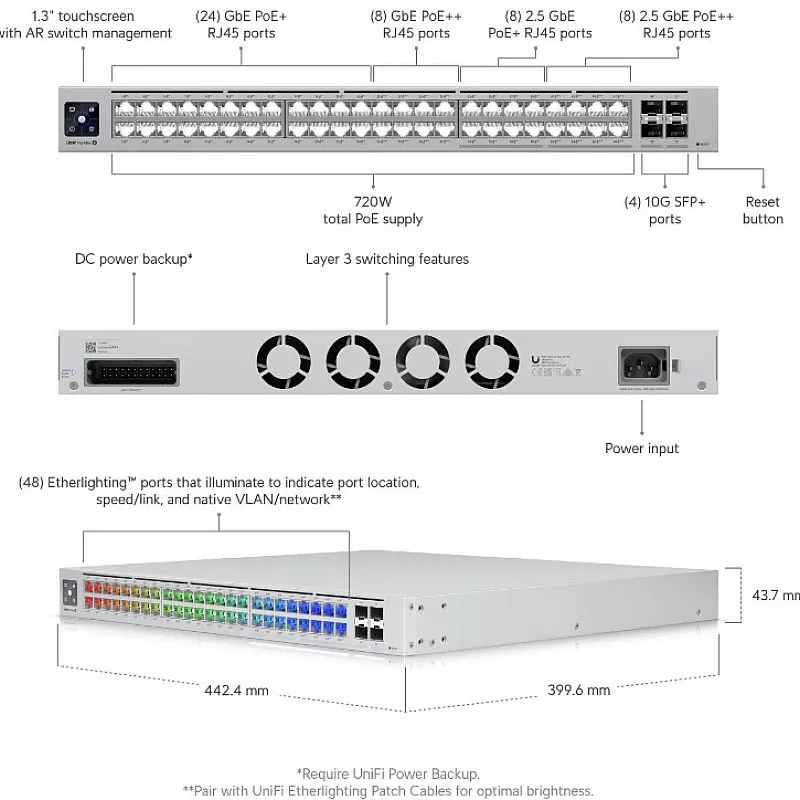

Design and Form Factor

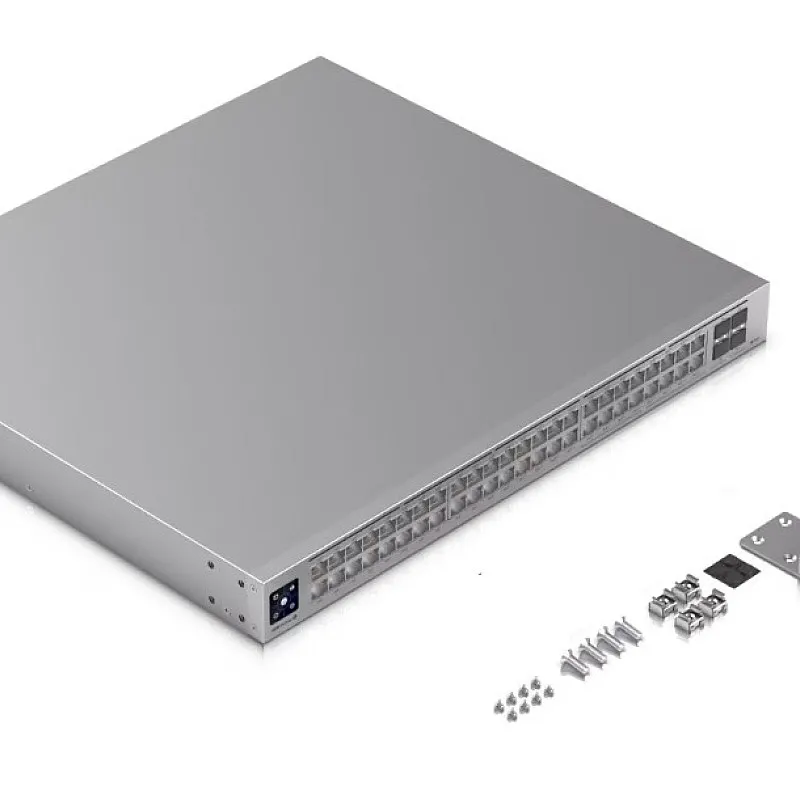

Package Contents
