- Stock: 16 remaining
- Brand: Ubiquiti
- Model: USW-Lite-16-PoE
- UPC: 810010071118
Add-on items
Ubiquiti UniFi Switch Lite 16 PoE (USW-Lite-16-PoE) — Compact 16-Port Gigabit Layer 2 PoE Switch
Enjoy flexible and quiet network deployment! The UniFi Switch Lite 16 PoE (USW-Lite-16-PoE) is a compact, fanless 16-port Layer 2 Gigabit managed switch designed specifically for small-to-medium businesses and smart homes. Its sleek design, complete with wall-mounting accessories, delivers a seamless and stable networking experience.
It features 16 Gigabit network ports, with 8 supporting 802.3at PoE+ power. With a total PoE budget of 45W, it easily powers various PoE endpoint devices such as UniFi Access Points and IP cameras. Centrally managed via the UniFi Network application, configuring and monitoring the switch's network functions has never been easier.
Key Features
8-Port PoE+ Output
Equipped with 8 auto-sensing 802.3at PoE+ ports. The total power capacity is 45W, with a maximum of 30W per port, perfectly meeting the power requirements of APs and IP Cameras.
Layer 2 Management Features
Supports essential Layer 2 switching protocols and features, including Port Isolation, providing highly flexible and reliable network traffic management and security settings.
Fanless Silent & Wall-Mountable Design
Features a minimalist, compact body with a fanless cooling system for zero-noise operation. It includes wall-mountable accessories, making it aesthetic and practical for both desktop and wall placement.
32 Gbps Total Switching Capacity
Provides up to 32 Gbps total switching capacity and 16 Gbps non-blocking throughput, ensuring ultra-low latency and stable transmission in environments with multiple connected devices.
Hardware Specifications
| Device Type | Layer 2 Managed PoE Switch |
|---|---|
| Networking Interface | (16) 10/100/1000 Mbps Gigabit RJ45 (GbE RJ45) |
| PoE Interface |
PoE Ports: (8) 802.3af/at PoE+ Max. PoE Wattage per Port: 30W Total PoE Availability: 45W |
| Switching Performance |
Switching Capacity: 32 Gbps Non-Blocking Throughput: 16 Gbps Forwarding Rate: 24 Mpps |
| Special Features | Fanless Design, Wall-mountable, Centrally managed by the UniFi Network application |
| Dimensions | 192 x 185 x 44 mm (7.6 x 7.3 x 1.7") |
| Weight | 1.2 kg (2.6 lb) |
| Power Method | Universal AC Input, 100-240V AC, 50/60 Hz |
| Power Supply | AC/DC, Internal, 60W |
| Max. Power Consumption | 15W (Excluding PoE output) / 60W (Including PoE output) |
| Certifications | CE, FCC, IC, NDAA Compliant |
| Official Warranty | 2-Year Limited Carry-in Warranty |

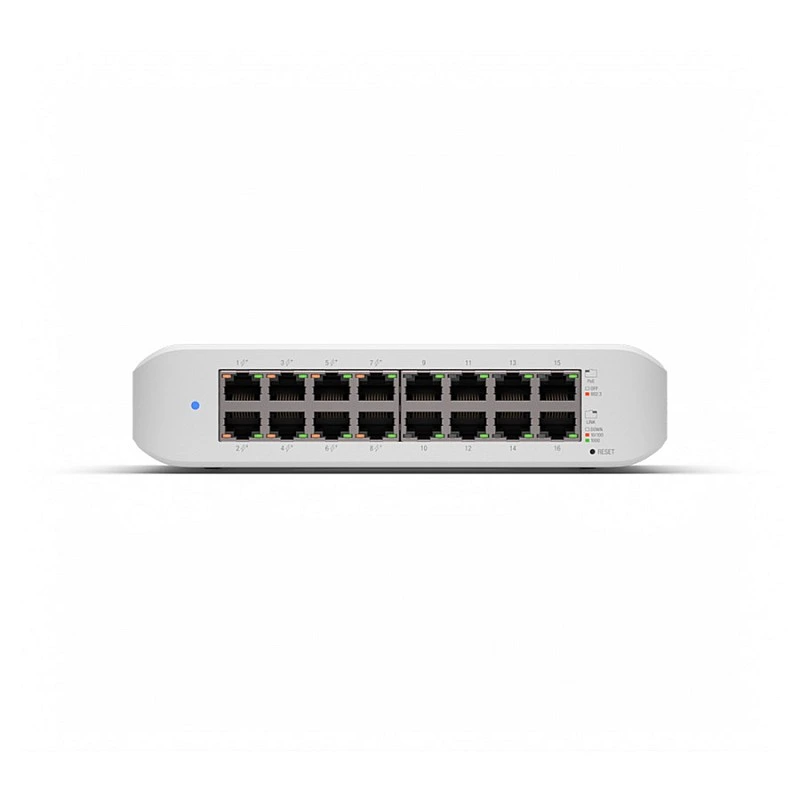

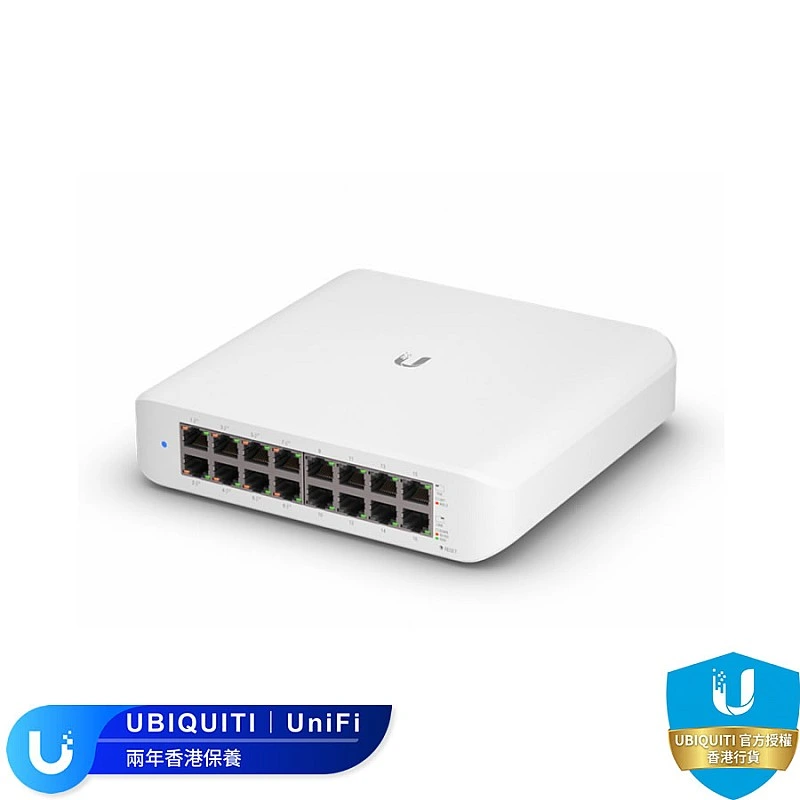

Device Details & Appearance
Original Package Contents
