- Stock: 3 remaining
- Brand: Ubiquiti
- Model: USW-Ultra-210W
- Weight: 320.00g
- Dimensions: 20.30cm x 7.60cm x 3.30cm
- UPC: 810084693711
Add-on items
| Image | Product | Price | Quantity | Action |
|
Ubiquiti UniFi AC Adapter 210W, UACC-Adapter-AC-210W |
HK$880 HK$1000 |
- + |
Add To Cart |
|
Ubiquiti UniFi 48-Port POE+ 750W Enterprise switch, USW-Enterprise-48-PoE |
HK$15980 HK$16099 |
- + |
Notify Me! |
|
Ubiquiti Unifi Camera AI 360, UVC-AI-360 |
HK$4170 HK$4410 |
- + |
Notify Me! |
|
Ubiquiti UniFi 6 Pro Wi-Fi 6 Access Point, U6-Pro |
HK$1480 HK$1599 |
- + |
Add To Cart |
|
Ubiquiti UniFi 6 Long-Range WI-FI 6 Access Point, U6-LR |
HK$1700 HK$1910 |
- + |
Notify Me! |
|
Ubiquiti UniFi WiFi 6 Mesh Access Point, U6-Mesh |
HK$1730 HK$1999 |
- + |
Add To Cart |
|
Ubiquiti UniFi 6 Enterprise WI-FI 6E Access Point, U6-Enterprise |
HK$3030 HK$3360 |
- + |
Notify Me! |
|
Ubiquiti UniFi 8-Port Enterprise Switch, USW-Enterprise-8-PoE |
HK$4380 HK$4899 |
- + |
Add To Cart |
|
Ubiquiti UniFi WiFi 6 In-Wall Access Point, U6-IW |
HK$1820 HK$1999 |
- + |
Notify Me! |

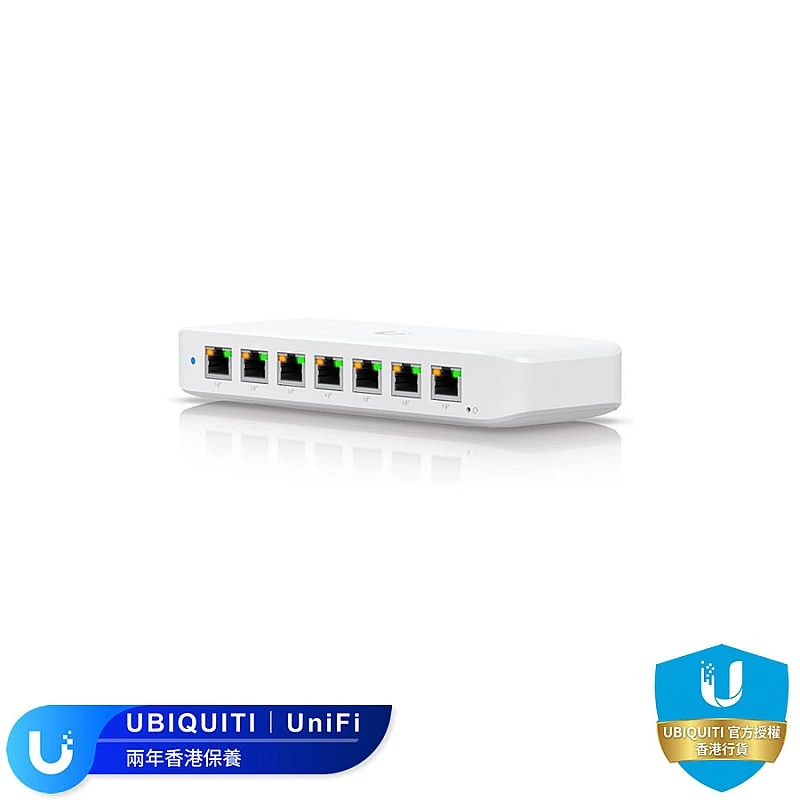

Ubiquiti UniFi Switch Ultra 210W (USW-Ultra-210W) — Compact and Flexible 8-Port Layer 2 PoE Switch
Experience a minimalist yet powerful network deployment! The UniFi Switch Ultra 210W (USW-Ultra-210W) is a compact and highly capable Layer 2 multi-port GbE PoE switch designed to adapt to various installation environments. It supports versatile deployment options including wall mounting, desktop placement, and magnetic attachment, bringing you an unparalleled flexible networking experience.

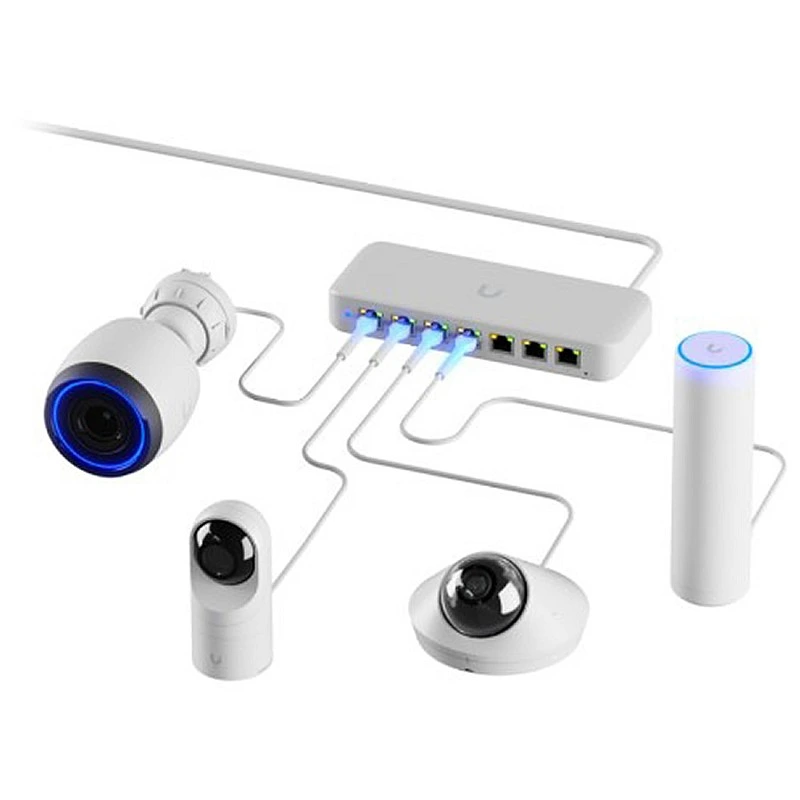

It features 8 x 1 GbE RJ45 ports (including 1 PoE++ input and 7 PoE+ outputs). Equipped with a dedicated 210W external power adapter, it provides a total PoE power budget of up to 202W. Whether connecting high-density wireless access points (APs), IP cameras, or VoIP phones, the USW-Ultra-210W delivers the most stable and reliable power and connectivity solution.
Perfect for Enterprise & SMB
Up to 202W Total PoE Budget
Includes a 210W high-power AC power adapter, providing up to 202W total PoE power availability. With 7 PoE+ (802.3at) output ports, it effortlessly powers multiple high-consumption network devices.
Flexible Layer 2 Management Features
Supports STP / RSTP, Port Isolation, Storm Control, and up to 256 VLANs, comprehensively enhancing local network security and transmission efficiency.

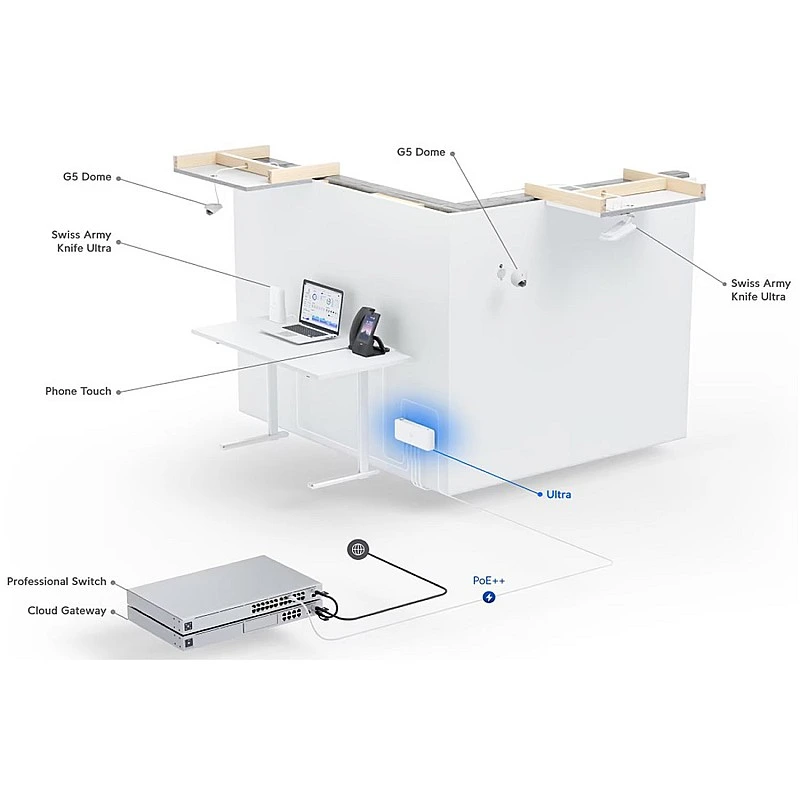

Compact and Versatile Mounting
Extremely compact form factor (only 20cm long), suitable not only for desktop use but also supports wall mounting and even magnetic mounting to adapt to tight or unique deployment environments.
Stable Fanless Silent Design
Features a high-quality Polycarbonate housing and fanless cooling design for silent operation. Delivers 16 Gbps total switching capacity and 8 Gbps non-blocking throughput, ensuring smooth and stable network transmission.
Hardware Specifications
| Device Type | Compact Layer 2 PoE Managed Switch |
|---|---|
| Networking Interface |
GbE RJ45: (8) 1 GbE (1G/100M/10M) (Includes 1 PoE++ Input and 7 PoE+ Outputs) |
| Switching Performance |
Switching Capacity: 16 Gbps Non-Blocking Throughput: 8 Gbps Forwarding Rate: 12 Mpps |
| PoE Output |
PoE Interfaces: (7) PoE+ (Max. 30W per port) Total PoE Budget: 202W (When using the included 210W AC power adapter) |
| Special Features | Supports Layer 2 Management (STP/RSTP, Port Isolation, Storm Control), up to 256 VLANs, and versatile mounting options (Desktop/Wall/Magnetic) |
| Dimensions | 203 x 76 x 33 mm (8 x 3 x 1.3") |
| Weight |
Device: 320 g (11.3 oz) Wall Mount: 45 g (1.6 oz) 210W Adapter: 770 g (1.7 lb) |
| Power Method | (1) AC/DC Adapter (Included) (1) PoE++ Input |
| Power Supply | AC/DC, External Power Adapter, 210W |
| Max. Power Consumption | 8W (Excluding PoE Output, using power adapter) 210W (Including PoE Output) |
| Environment |
Operating Temperature: -20°C to 60°C (-4°F to 140°F) Operating Humidity: 10% to 90% (Non-condensing) |
| Certifications | CE, FCC, IC, Anatel |
| Warranty | 2-Year Limited Carry-in Warranty |

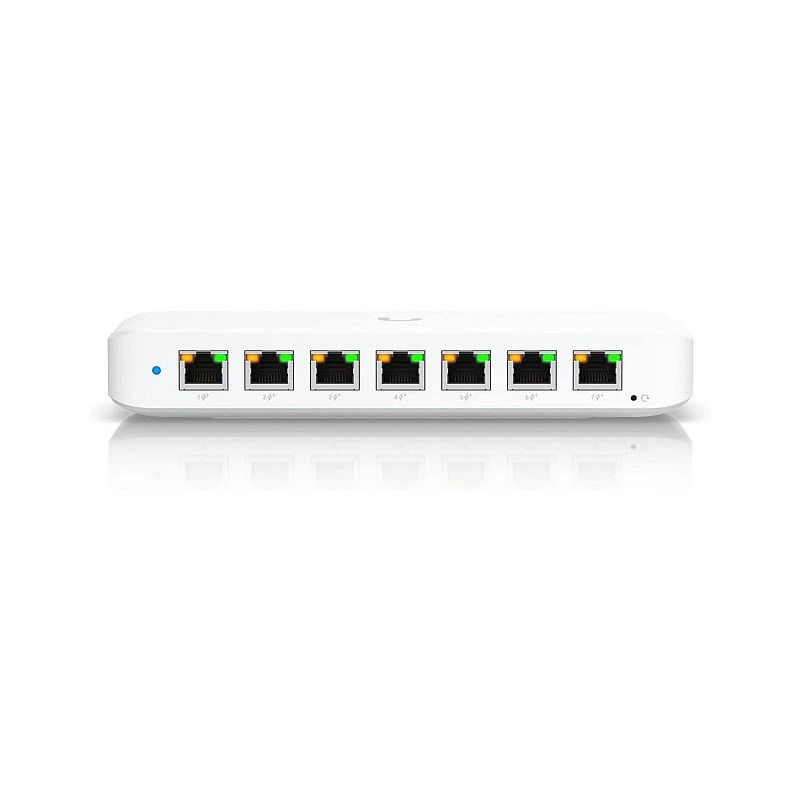

Device Details and Appearance
Package Contents
