- Stock: Pre-Order remaining
- Brand: Ubiquiti
- Model: USW-Ultra
- Weight: 320.00g
- Dimensions: 20.30cm x 7.60cm x 3.30cm
- UPC: 810084693698
Add-on items
| Image | Product | Price | Quantity | Action |
|
Ubiquiti UniFi AC Adapter 210W, UACC-Adapter-AC-210W |
HK$880 HK$1000 |
- + |
Add To Cart |
|
Ubiquiti UniFi WiFi 6 In-Wall Access Point, U6-IW |
HK$1820 HK$1999 |
- + |
Notify Me! |
|
Ubiquiti UniFi 8-Port Enterprise Switch, USW-Enterprise-8-PoE |
HK$4380 HK$4899 |
- + |
Notify Me! |
|
Ubiquiti UniFi 6 Enterprise WI-FI 6E Access Point, U6-Enterprise |
HK$3030 HK$3360 |
- + |
Notify Me! |
|
Ubiquiti UniFi WiFi 6 Mesh Access Point, U6-Mesh |
HK$1730 HK$1999 |
- + |
Notify Me! |
|
Ubiquiti UniFi 6 Long-Range WI-FI 6 Access Point, U6-LR |
HK$1700 HK$1910 |
- + |
Notify Me! |
|
Ubiquiti UniFi 6 Pro Wi-Fi 6 Access Point, U6-Pro |
HK$1480 HK$1599 |
- + |
Notify Me! |
|
Ubiquiti Unifi Camera AI 360, UVC-AI-360 |
HK$4170 HK$4410 |
- + |
Notify Me! |
|
Ubiquiti UniFi 48-Port POE+ 750W Enterprise switch, USW-Enterprise-48-PoE |
HK$15980 HK$16099 |
- + |
Notify Me! |

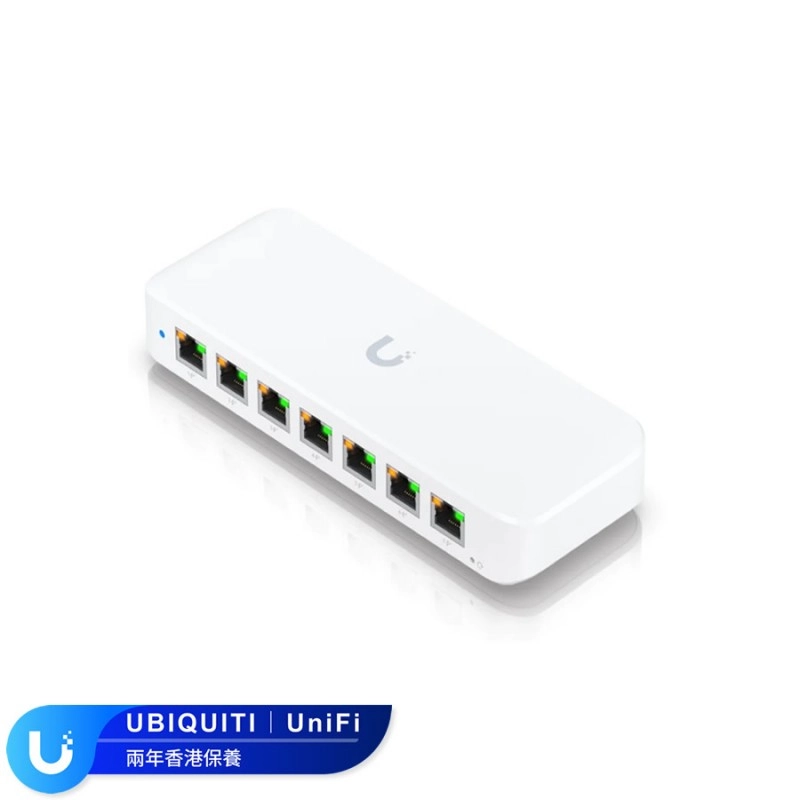

Ubiquiti UniFi Switch Ultra (USW-Ultra) — Compact and Flexible 8-Port Layer 2 PoE Network Switch
A perfect combination of minimalist design and powerful performance! The UniFi Switch Ultra (USW-Ultra) is a compact yet fully-featured 8-port Layer 2 managed switch designed specifically for modern edge network deployments. It supports versatile mounting options and flexible PoE power configurations, providing a stable and reliable connection for your security cameras, Wi-Fi APs, and various network devices.
It features 1 PoE++ input port and 7 PoE+ output ports all in one device. Depending on your chosen power configuration (PoE++ input, or external 60W / 210W power adapter), the USW-Ultra can deliver a maximum total PoE power budget of up to 202W. Whether hidden in a ceiling, mounted on a wall, or placed on a desktop, it seamlessly integrates into your network architecture.
Application Scenarios & Core Advantages (Perfect for Edge Deployment)
Flexible PoE Architecture
Features 1 PoE++ input and 7 PoE+ outputs. Choose between PoE++ powering or an external adapter to provide a PoE budget ranging from 16W up to 202W, flexibly meeting the demands of various devices.
Layer 2 Management Features
Fully supports STP/RSTP spanning tree protocols, Port Isolation, egress rate limiting, and port mirroring, providing a secure and stable infrastructure for edge networks.
Versatile Mounting Options
The ultra-compact polycarbonate chassis design supports desktop placement, wall mounting (accessories included), and features magnetic mounting, perfectly concealing and adapting to tight wiring spaces.
Stable & Reliable Switching Performance
Delivers 16 Gbps total switching capacity and 8 Gbps non-blocking throughput, ensuring the 8 Gigabit ports maintain ultra-low latency transmission even under full load.
Hardware Specifications
| Device Type | Layer 2 Managed PoE Switch |
|---|---|
| Networking Interface |

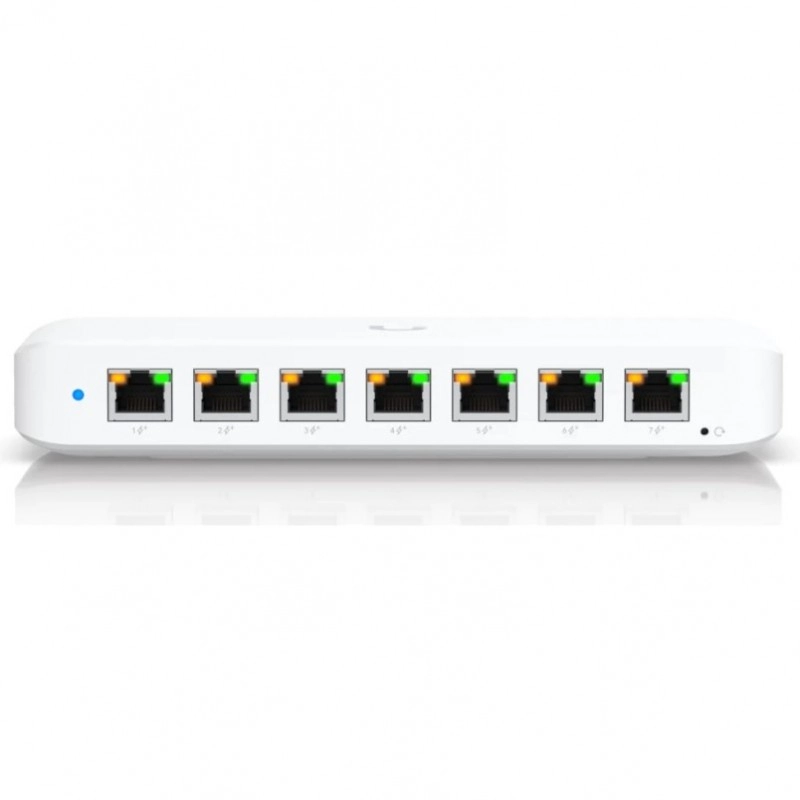

GbE RJ45: (8) 10/100/1000 Mbps PoE Configuration: (1) PoE++ Input Port, (7) PoE+ Output Ports |
| Total PoE Availability |
Using PoE+ Input: 16W Using PoE++ Input / 60W PoE Adapter: 42W Using 60W AC Adapter Input: 52W Using 210W AC Adapter Input: 202W *Max. PoE Wattage per Port is 30W |
| Switching Performance |
Switching Capacity: 16 Gbps Non-Blocking Throughput: 8 Gbps Forwarding Rate: 12 Mpps |
| Management & Special Features | Supports STP & RSTP, Port Isolation, Port Mirroring, Egress Rate Limit, and up to 256 VLANs |
| Dimensions | 203 x 76 x 33 mm (8 x 3 x 1.3") |
| Weight | Device: 320 g (11.3 oz) / Wall Mount: 45 g |

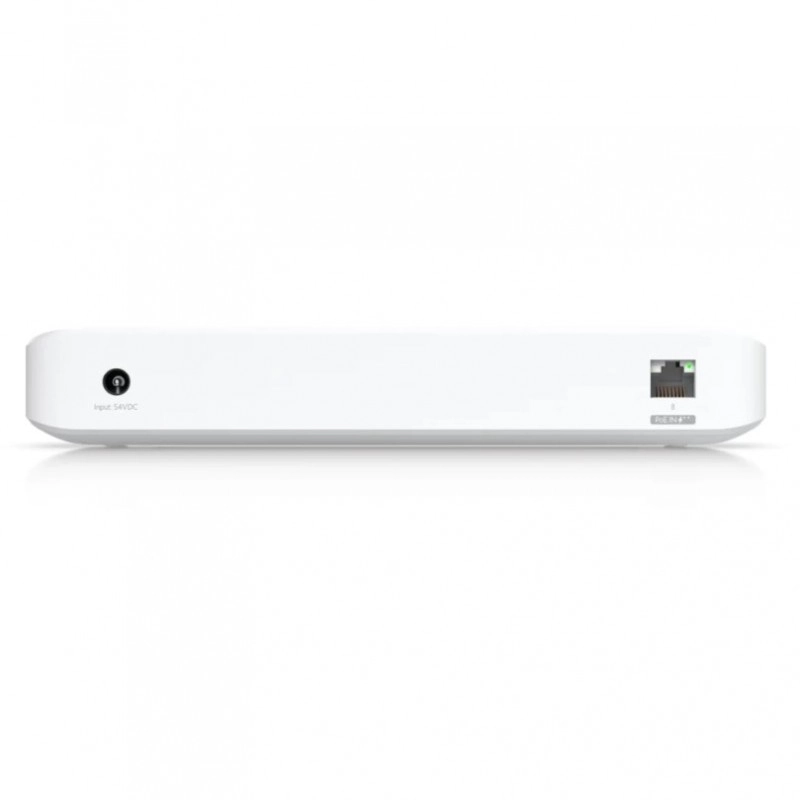

| Power Method | (1) 54V DC Power Input (supports external adapter) (1) PoE++ Input (DC Input PoE) |
| Max. Power Consumption | 9W (using PoE input) / 8W (using adapter input) *Excludes PoE output power |
| Material & Environment | Enclosure Material: Polycarbonate Operating Temperature: -30 to 60° C (using PoE++ input) |
| Certifications | CE, FCC, IC, Anatel |
| Warranty | 2-Year Limited Carry-in Warranty |
Device Details & Appearance
Package Contents
