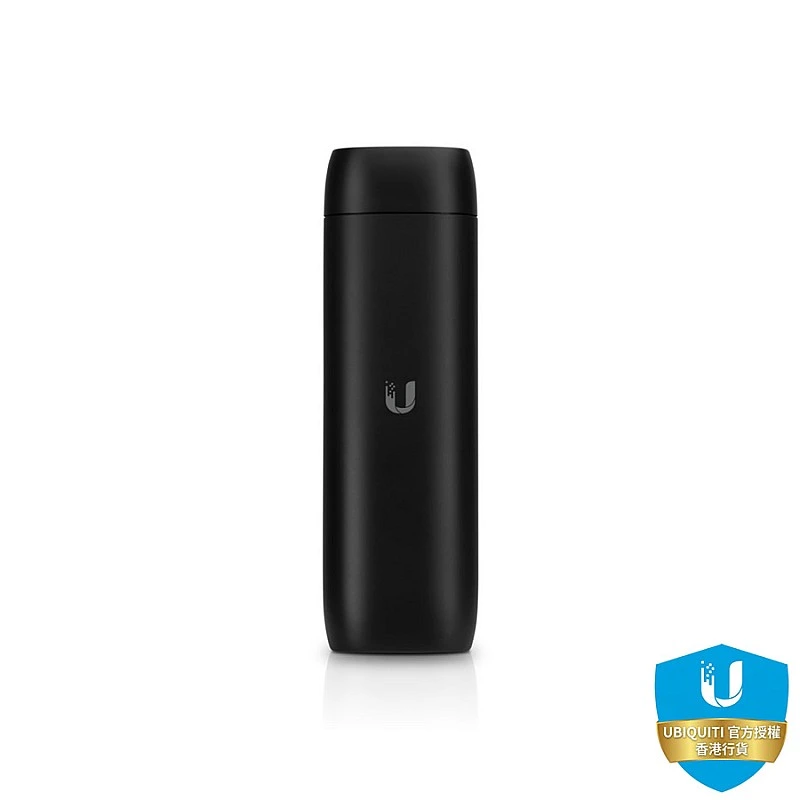

Ubiquiti UniFi Protect ViewPort (UP-Viewport) — 4K Live Video Output Terminal Built for Surveillance Centers
Easily bring your surveillance video to any screen! The UniFi Protect ViewPort (UP-Viewport) is a video output device specifically designed for the UniFi Protect system. It allows you to output surveillance feeds directly to an HDMI display without needing a computer, providing the most fluid and intuitive experience for your security monitoring.
The device supports up to 4K 30 FPS ultra-high-definition HDMI video output and can simultaneously display real-time feeds from up to 16 cameras. With just a single Gigabit PoE network port handling both power and connectivity, it provides the perfect surveillance display solution whether for retail stores, offices, or large security control centers.
Enterprise-Grade Applications (Perfect for Surveillance)
4K Live Video Output
Supports direct HDMI output at up to 4K (30 FPS) resolution, providing exceptionally clear surveillance footage to ensure no detail is missed.
Up to 16-Camera Split Screen
Perfectly integrated with the UniFi Protect management system. Customize matrix layouts to monitor up to 16 camera feeds simultaneously on a single screen.
PoE Powered & Plug-and-Play
Achieve both device power and video data transmission through a single 802.3af PoE Gigabit network cable, greatly simplifying wiring hassles.
Flexible Concealed Mounting
Includes a TV VESA mount and wall mounting accessories, allowing the device to be perfectly hidden behind a display to maintain a clean aesthetic.
Hardware Specifications
| Device Type | UniFi Protect Display Terminal |
|---|---|
| Processor | ARM Octa-Core Cortex™-A53 |
| Networking Interface | (1) GbE RJ45 Port |
| Management Interface | UniFi Protect |
| Video Output |
HDMI Port, up to 4K @ 30 FPS Supports simultaneous display of up to 16 camera feeds |
| Enclosure Material | Polycarbonate |
| Dimensions | 156.9 x 52 x 37.3 mm (6.18 x 2.05 x 1.47") |
| Weight | 250 g (8.82 oz) (Without mount) |
| Power Method | 802.3af PoE |
| Max. Power Consumption | 9.5W |
| ESD/EMP Protection | Air: ± 8kV, Contact: ± 4kV |
| Operating Environment |
Temperature: 0 to 40° C (32 to 104° F) Humidity: 20 to 80% Non-condensing |
| Certifications | CE, FCC, IC |
| Warranty | 1-Year Limited Carry-in Warranty |
Device Details & Appearance
Package Contents
