Ubiquiti UniFi Switch Pro XG 24 PoE (USW-Pro-XG-24-PoE) — 10G/25G Layer 3 Multi-Gigabit PoE Switch for Enterprise Backbone
Experience blazing-fast enterprise networking! The UniFi Switch Pro XG 24 PoE (USW-Pro-XG-24-PoE) is a highly capable 24-port Layer 3 multi-gigabit PoE switch designed to push the limits of modern enterprise networks. It perfectly supports high-density 10G and 2.5G device connections, and features 25G SFP28 fiber uplinks, delivering an unparalleled backbone network experience.
Packed with (16) 10G RJ45 ports, (8) 2.5G RJ45 ports, and (2) 25G SFP28 fiber uplink slots, it offers a massive total PoE power budget of up to 720W. Whether you are building a large multi-device office network, a data center, or handling ultra-high-bandwidth server connections and video production, the USW-Pro-XG-24-PoE provides the ultimate top-tier network hub solution for your enterprise.
Perfect for Enterprise
Ready for 10G / 25G Backbone Upgrades
Equipped with (2) 25G SFP28 ports and (16) 10 GbE RJ45 ports, perfectly meeting the needs of next-gen high-speed data transmission between large enterprises and servers. Say goodbye to network bottlenecks.
Advanced Layer 3 Routing
Supports DHCP server, Inter-VLAN routing, and Static Routing, significantly reducing the load on your core router while improving overall network performance and security.
Etherlighting™ Technology
Exclusive lighting technology intuitively displays port location, speed/link, and VLAN status through color and brightness, making rack management and troubleshooting easier than ever.
460 Gbps Ultra-High Capacity
Offers up to 460 Gbps total switching capacity and 230 Gbps non-blocking throughput, ensuring ultra-low latency and stable transmission even in heavy-load network environments.
Technical Specifications
| Device Type | Layer 3 Managed Etherlighting™ Multi-Gigabit PoE Switch |
|---|---|
| Networking Interfaces |
10G RJ45: (16) 1/2.5/5/10 GbE RJ45 ports 2.5G RJ45: (8) 10/100/1000/2500 Mbps RJ45 ports SFP Uplink: (2) 1/10/25G SFP28 ports |
| PoE Interfaces |
(8) PoE+ IEEE 802.3af/at (16) PoE++ IEEE 802.3af/at/bt |
| PoE Specifications |
Total PoE Power Budget: 720W Max. PoE+ Wattage per Port: 30W Max. PoE++ Wattage per Port: 60W |
| Switching Performance |
Switching Capacity: 460 Gbps Non-Blocking Throughput: 230 Gbps Forwarding Rate: 342.24 Mpps |
| Special Features | 1.3" LCM color touchscreen, Etherlighting™ technology, Layer 3 routing (DHCP Server, Inter-VLAN Routing) |
| Power Method |
(1) Universal input, 100-240V AC, 50/60 Hz (1) USP RPS DC input (52V DC, 13.84A / 11.5V DC, 13A) |
| Power Supply | AC/DC, Internal 820W |
| Max. Power Consumption | 100W (Excluding PoE output) |
| Enclosure Material | SGCC Steel |
| Dimensions | 442.4 x 399.6 x 43.7 mm (Standard 1U Rackmount) |
| Weight | 6.1 kg (Without mount brackets) / 6.2 kg (With mount brackets) |
| Environment |
Operating Temperature: -5 to 40° C (23 to 104° F) Operating Humidity: 10% to 90% Noncondensing |
| Certifications | CE, FCC, IC |
| Warranty | 2-Year Limited Carry-in Warranty |

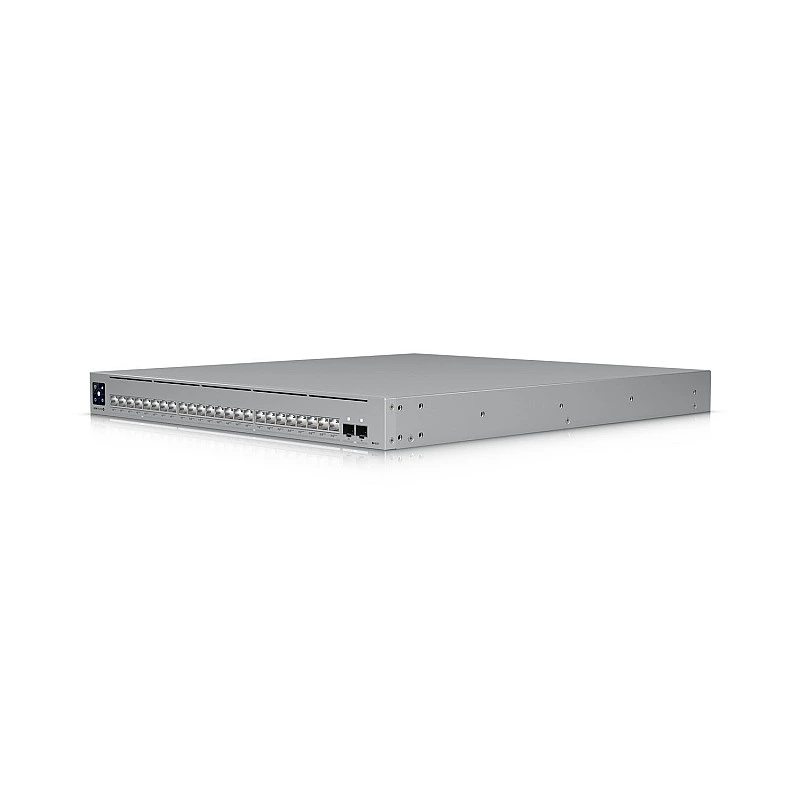

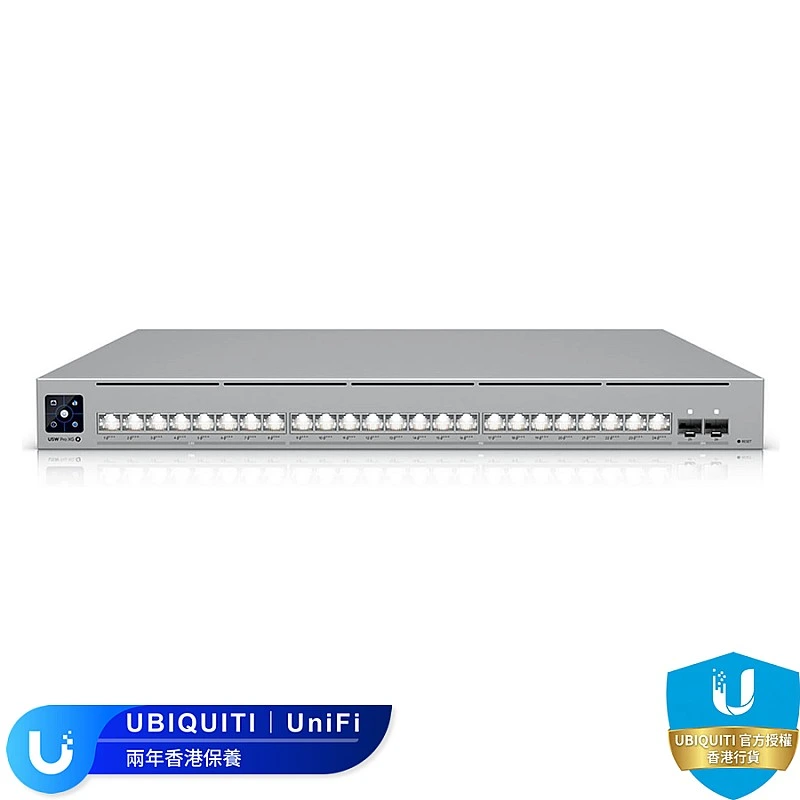

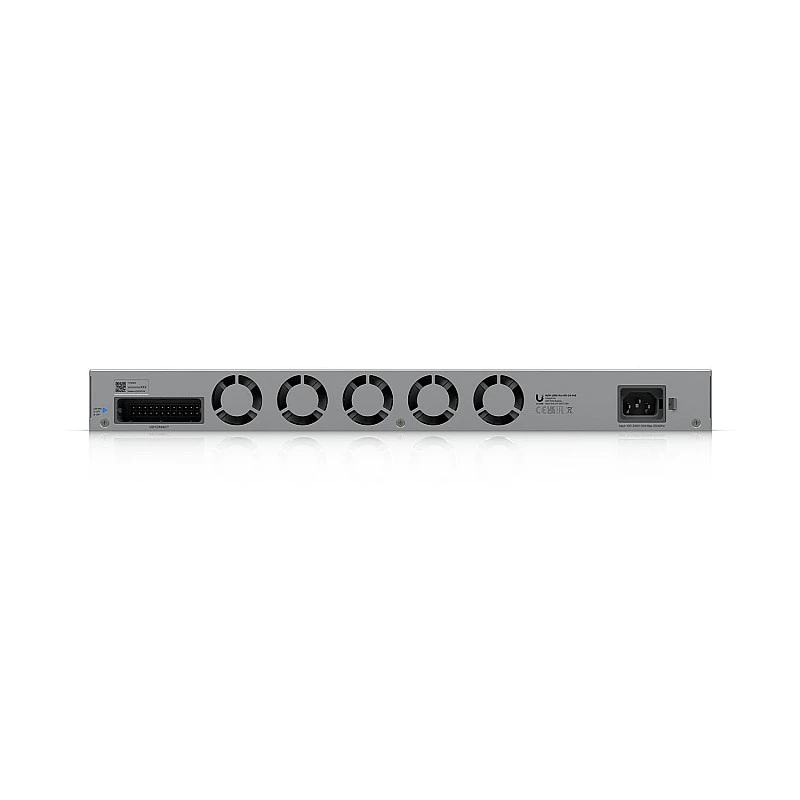

Device Details & Appearance
Package Contents
