Ubiquiti UniFi Switch Pro XG 24 (USW-Pro-XG-24) — 10G/25G Layer 3 Multi-Gigabit Switch Built for Enterprise Backbones
Experience ultra-fast enterprise networking! The UniFi Switch Pro XG 24 (USW-Pro-XG-24) is a powerful 24-port Layer 3 multi-gigabit switch designed to push the limits of modern enterprise networks. Perfectly supporting high-density 10G and 2.5G device connections, and equipped with 25G SFP28 fiber uplinks, it delivers an unparalleled backbone network experience.
It integrates sixteen 10G RJ45 ports, eight 2.5G RJ45 ports, and two 25G fiber uplink slots in a single device. Whether you are building a multi-device large office network, a data center, or handling ultra-high bandwidth server connections and video production, the USW-Pro-XG-24 provides the ultimate top-tier networking hub solution for your enterprise.
Enterprise Applications (Perfect for Enterprise)
Ready for 10G / 25G Backbone Upgrades
Equipped with 2x 25G SFP28 interfaces, 16x 10 GbE RJ45 ports, and 8x 2.5 GbE ports, perfectly meeting the needs of next-gen high-speed data transmission between large enterprises and servers, eliminating network bottlenecks.
Advanced Layer 3 Routing Features
Supports DHCP server, Inter-VLAN routing, and Static Routing, significantly reducing the load on the core router while enhancing overall network performance and security.
Etherlighting™ Technology
Exclusive lighting technology intuitively displays port location, speed/link, and VLAN status through color and brightness, making rack management and troubleshooting easier than ever.
460 Gbps Ultra-High Switching Capacity
Provides up to 460 Gbps of total switching capacity and 230 Gbps non-blocking throughput, ensuring ultra-low latency and stable transmissions even in highly dense network environments.
Hardware Specifications
| Device Type | Layer 3 Managed Multi-Gigabit Switch |
|---|---|
| Networking Interface |
10G RJ45: (16) 10 GbE (10G/5G/2.5G/1G/100M/10M) 2.5G RJ45: (8) 2.5 GbE (2.5G/1G/100M/10M) SFP Uplink: (2) 25G SFP28 (25G/10G/1G) |
| Switching Performance |
Switching Capacity: 460 Gbps Non-Blocking Throughput: 230 Gbps Forwarding Rate: 342 Mpps |
| L2 & L3 Features |
Supports 1,000 VLANs, 32,000 MAC address table size, 512 IPv4 static routes, 8 MB packet buffer size Supports DHCP Server/Relay, Inter-VLAN routing, IGMP Snooping, LACP, 802.1X control |
| Special Features | 1.3" LCM color touchscreen, Etherlighting™ port illumination, supports Out-of-Band (OOB) Ethernet management |
| Dimensions | 442 x 480 x 44 mm (Standard 1U Rack Mount) |
| Weight | 7.2 kg (7.3 kg with rack mount brackets) |
| Enclosure Material | SGCC Steel |
| Power Method | (1) 100-240V AC, 50/60 Hz Universal Input (1) USP RPS DC Backup Power Input |
| Power Supply | AC/DC, Internal, 200W |
| Max. Power Consumption | 150W |
| Operating Environment |
Temperature: -5 to 40° C (23 to 104° F) Humidity: 10 to 90% Noncondensing |
| ESD Protection | Air: ± 30kV, Contact: ± 20kV |
| Certifications & Compliance | CE, FCC, IC, Anatel, NDAA Compliant |
| Warranty (HK Official Stock) | 2-Year Limited Carry-in Warranty |

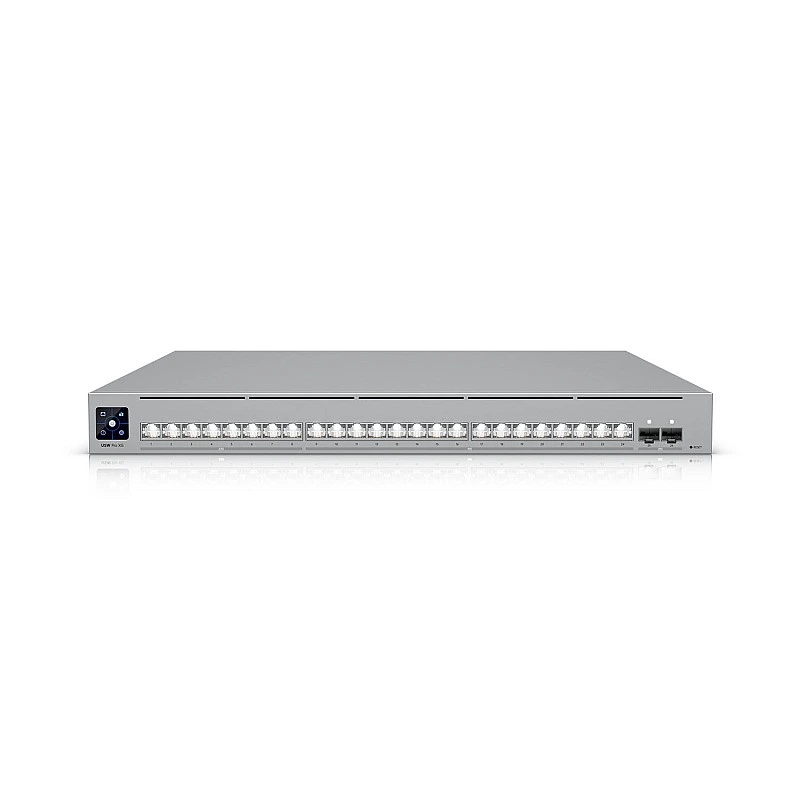

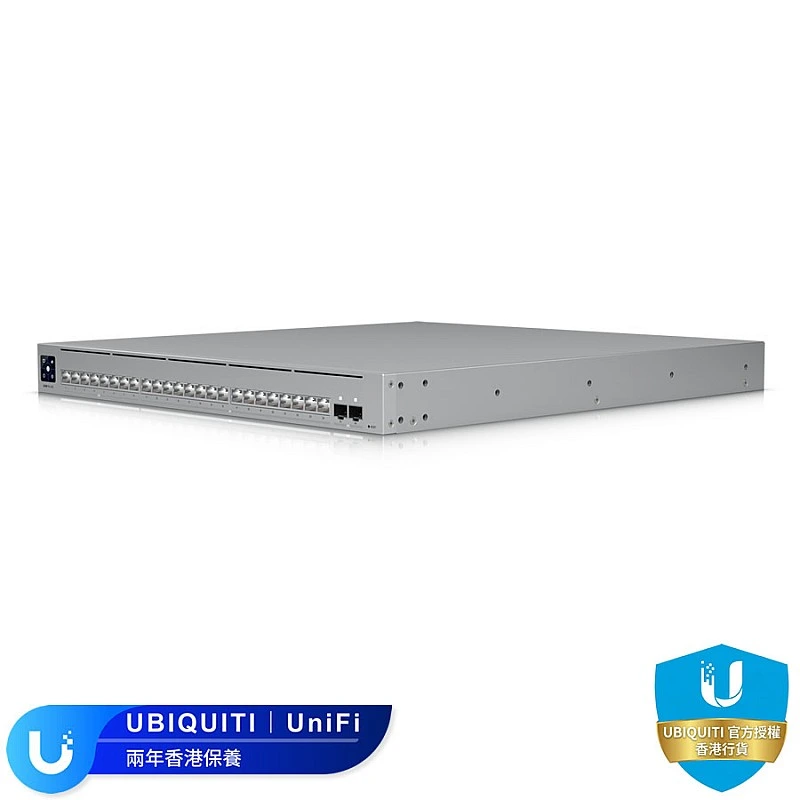

Chassis Details & Appearance
