- Stock: Pre-Order remaining
- Brand: Ubiquiti
- Model: USW-Pro-XG-48-PoE
Add-on items
| Image | Product | Price | Quantity | Action |
|
Ubiquiti UniFi Etherlighting Patch Cable |
HK$48 |
- + |
Add To Cart |
|
Ubiquiti UniFi Sliding Rack Rails (UACC-Rack-Rails-Slide) - Authorized Goods |
HK$1190 |
- + |
Notify Me! |

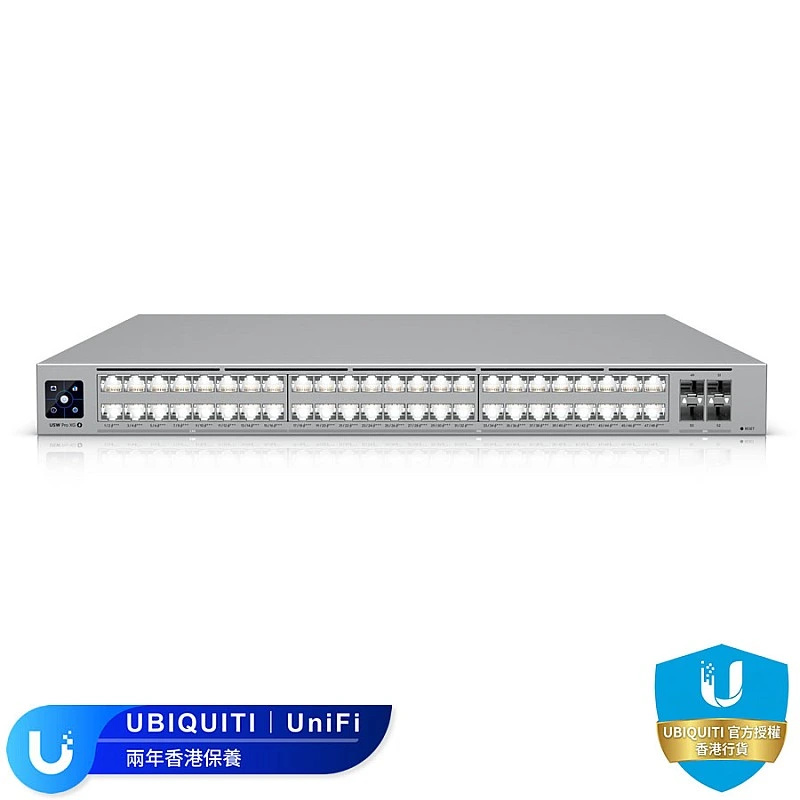

Ubiquiti UniFi Switch Pro XG 48 PoE (USW-Pro-XG-48-PoE) — 10G/25G Layer 3 Multi-Gigabit PoE Switch Designed for Enterprise Backbones
Experience lightning-fast enterprise-grade networking! The UniFi Switch Pro XG 48 PoE (USW-Pro-XG-48-PoE) is a high-performance 48-port Layer 3 multi-gigabit PoE switch designed to push the limits of modern enterprise networks. It flawlessly supports high-density 10G and 2.5G device connections with powerful PoE delivery, equipped with 25G SFP28 fiber uplinks to bring you an unparalleled backbone network experience.
An all-in-one hub featuring (32) 10GbE ports, (16) 2.5GbE ports (all supporting PoE+++), and (4) 25G fiber uplink slots. With up to 1,080W of total PoE availability, whether you are building a large multi-device office network, handling high-bandwidth Wi-Fi 7 Access Points (APs), connecting servers, or deploying surveillance systems, the USW-Pro-XG-48-PoE provides the ultimate central networking solution for your business.
Perfect for Enterprise
Ready for 10G / 25G Backbone Upgrades
Equipped with (4) 25G SFP28 interfaces and (32) 10 GbE RJ45 ports, perfectly meeting the demands for next-generation, high-speed data transmission between large enterprise environments and servers, eliminating network bottlenecks.
Advanced Layer 3 Routing
Supports DHCP server, Inter-VLAN routing, and Static Routing, which significantly reduces the burden on the core router while enhancing overall network performance and security.
Etherlighting™ Technology
Exclusive illuminated ports visually indicate port location, speed/link, and native VLAN/network using color and brightness, making rack management and troubleshooting easier than ever.
920 Gbps Ultra-High Switching Capacity
Delivers up to 920 Gbps of total switching capacity and 460 Gbps of non-blocking throughput, ensuring ultra-low latency and stable transmission even under highly intensive network loads.
Hardware Specifications
| Device Type | Layer 3 Managed Multi-Gigabit PoE Switch |
|---|---|
| Networking Interface |
10G RJ45: (32) 10 GbE (All support PoE+++) (10G/5G/2.5G/1G/100M/10M) 2.5G RJ45: (16) 2.5 GbE (All support PoE+++) (2.5G/1G/100M/10M) SFP Uplinks: (4) 25G SFP28 (25G/10G/1G) |
| PoE Output |
Supports PoE / PoE+ / PoE++ / PoE+++ (Up to 90W per port) Total Available PoE: 1,080W (200-240V AC) / 972W (100-120V AC) |
| Switching Performance |
Switching Capacity: 920 Gbps Non-Blocking Throughput: 460 Gbps Forwarding Rate: 684 Mpps |
| System & Capacity |
Supported VLANs: 1,000 MAC Address Table Size: 128,000 Packet Buffer Size: 8 MB |
| Management & Special Features |
1.3" LCM Color Touchscreen, Etherlighting™ Port Illumination Layer 3 Routing: DHCP Server, DHCP Relay, Inter-VLAN Routing, Static Routing |
| Dimensions | 442 x 480 x 44 mm (Standard 1U Rackmountable) |
| Weight | 8.7 kg (Without mounting brackets) / 8.8 kg (With mounting brackets) |
| Materials & Protection |
Enclosure Material: SGCC Galvanized Steel ESD/EMP Protection: Air: ± 30kV, Contact: ± 20kV |
| Power Method | (1) 100-240V AC, 50/60 Hz Universal Input (1) USP RPS DC Backup Power Input |
| Power Supply | Internal AC/DC Power Supply, 1,350W |
| Max. Power Consumption | 200W (Excluding PoE output) 1,280W (Including PoE output, 200-240V AC) |
| Operating Environment |
Operating Temperature: -5°C to 40°C (23°F to 104°F) Operating Humidity: 10% to 90% (Noncondensing) |
| Certifications | CE, FCC, IC, NDAA Compliant |
| Official Warranty | 2-Year Limited Carry-in Warranty |

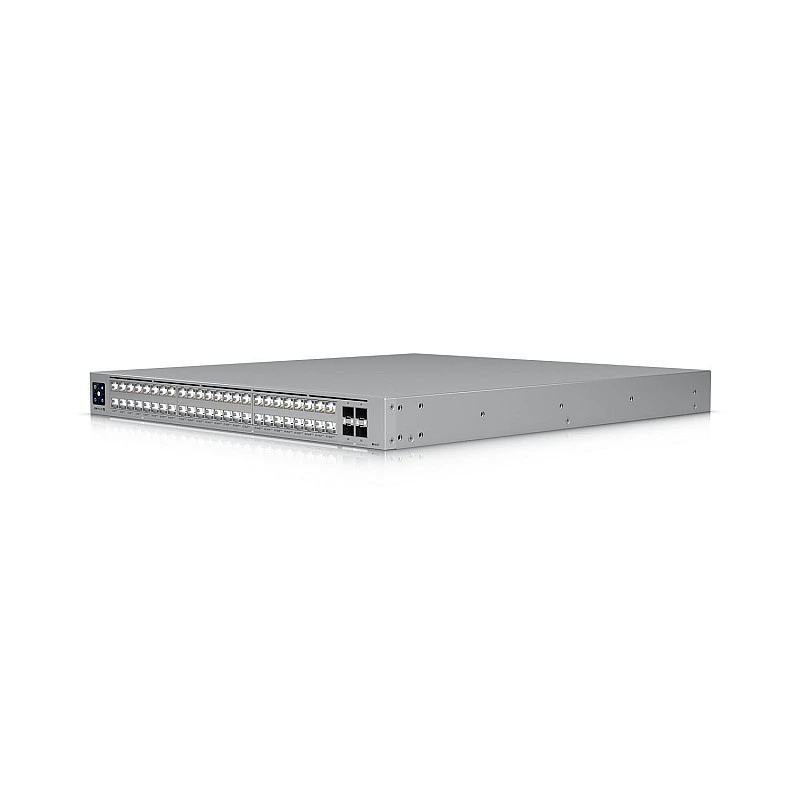

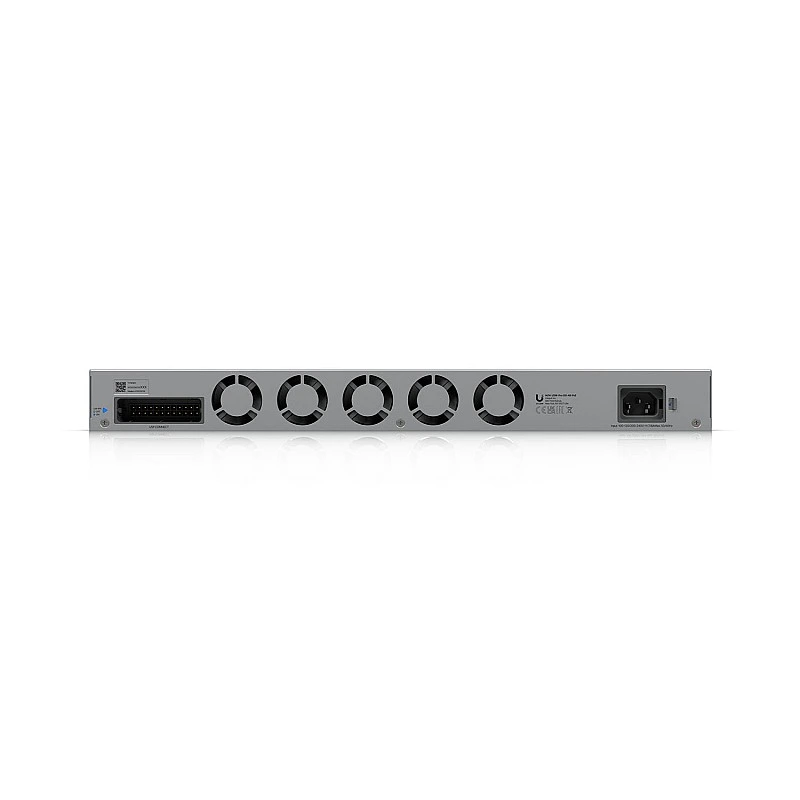

Device Details & Appearance
Package Contents
