- Stock: 3 remaining
- Brand: Ubiquiti
- Model: USW-Pro-Max-16-PoE
- Weight: 2.10kg
- Dimensions: 32.51cm x 16.00cm x 4.37cm
- UPC: 810084694558
Add-on items
| Image | Product | Price | Quantity | Action |
|
Ubiquiti UniFi 6 Pro Wi-Fi 6 Access Point, U6-Pro |
HK$1480 HK$1599 |
- + |
Add To Cart |
|
Ubiquiti Pro Max 16 Rack Mount, UACC-Pro-Max-16-RM |
HK$700 HK$890 |
- + |
Notify Me! |
|
Ubiquiti UniFi Etherlighting Patch Cable |
HK$48 |
- + |
Add To Cart |

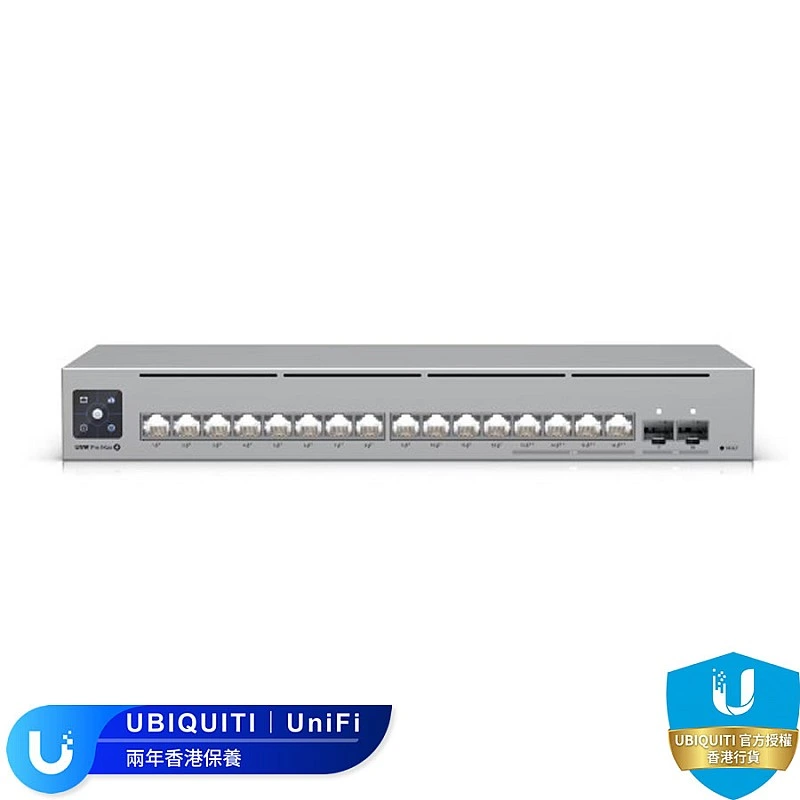

Ubiquiti UniFi Switch Pro Max 16 PoE (USW-Pro-Max-16-PoE) — Layer 3 Etherlighting™ PoE Switch Built for Enterprise Backbones
Experience the next generation of enterprise networks! The UniFi Switch Pro Max 16 PoE (USW-Pro-Max-16-PoE) is a powerful 16-port Layer 3 PoE switch designed to break through the limits of modern enterprise networks and device powering. It perfectly supports high-bandwidth 2.5G device connections and PoE++ high-power output, and is equipped with 10G SFP+ fiber uplinks, bringing you the ultimate network backbone experience.
An all-in-one device featuring 12x 1G network ports (PoE+), 4x 2.5G network ports (PoE++), and 2x 10G fiber uplink slots. Whether building an office network supporting high-power WiFi 7 APs or handling high-bandwidth surveillance cameras and server connections, the USW-Pro-Max-16-PoE provides a top-tier network hub solution featuring brilliant Etherlighting™ indicators.
Enterprise Application Scenarios (Perfect for Enterprise)
Ready for 2.5G / 10G Network Upgrades
Equipped with two 10G SFP+ fiber interfaces and four 2.5 GbE RJ45 ports, perfectly meeting the high-speed data transmission needs between next-generation WiFi APs and servers, saying goodbye to network bottlenecks.
Advanced Layer 3 Routing Features
Supports DHCP server, Inter-VLAN routing, and Static Routing, significantly reducing the burden on the core router and improving overall network performance and security.
Etherlighting™ Technology
Exclusive lighting technology intuitively displays port location, speed, and VLAN status through color and brightness, making rack management and troubleshooting easier than ever.
Powerful 180W PoE Budget
Provides up to a 180W total PoE budget, featuring PoE++ ports that support up to 60W, ensuring stable operation for power-hungry devices (such as PTZ cameras and WiFi 7 APs).
Hardware Specifications
| Device Type | Layer 3 Etherlighting™ Managed PoE Switch |
|---|---|
| Networking Interface |
1G RJ45 (PoE+ Support): (12) GbE (1G/100M/10M) 2.5G RJ45 (PoE++ Support): (4) 2.5 GbE (2.5G/1G/100M/10M) SFP+ Uplink: (2) 10G SFP+ (10G/1G) |
| Switching Performance |
Total Switching Capacity: 84 Gbps Non-Blocking Throughput: 42 Gbps Forwarding Rate: 62.496 Mpps |
| PoE Interface |
Total Available PoE: 180W Max. Power per Port: PoE (15.4W) / PoE+ (30W) / PoE++ (60W) |
| Management & Special Features | 1.3" LCM Touchscreen, Etherlighting™ Port Technology, Layer 3 Routing Support (DHCP Server, Inter-VLAN Routing) |
| Dimensions | 325.1 x 160 x 43.7 mm (Desktop / Wall-mount / 1U Rack-mount Support) |
| Weight | 2.1 kg (4.6 lb) |
| Power Method | External DC Power Adapter |
| Power Supply | 54V, 210W (External AC/DC Adapter) |
| Max. Power Consumption | 30W (Excluding PoE output) / 210W (With maximum PoE output) |
| Certifications | CE, FCC, IC |
| Warranty | 2-Year Limited Carry-in Warranty |
Device Details and Appearance
Original Package Contents
