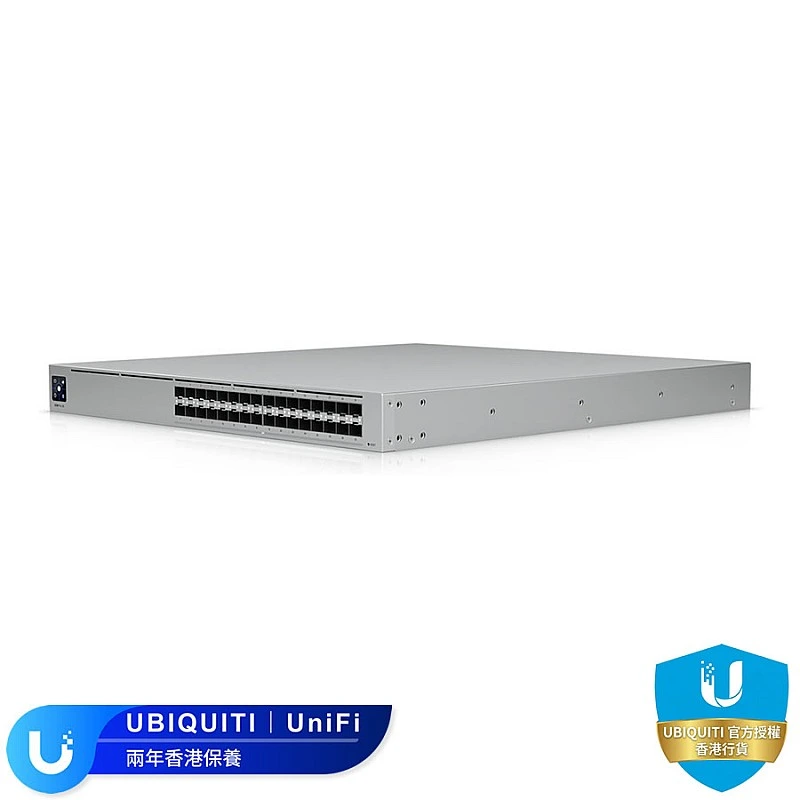

Ubiquiti UniFi Switch Pro XG Aggregation (USW-Pro-XG-Aggregation) — A 25G Layer 3 Aggregation Switch Built for Enterprise Backbones
Experience ultra-fast enterprise-class networking! The UniFi Switch Pro XG Aggregation (USW-Pro-XG-Aggregation) is a powerful 32-port Layer 3 aggregation switch designed to push the limits of modern enterprise networks. It perfectly supports high-density 25G SFP28 device connections, bringing you an unparalleled backbone network experience.
A single device packed with thirty-two 25G SFP28 fiber ports. Whether you are building a large multi-device office network, a data center, or handling ultra-high bandwidth server connections and large-scale video production, the USW-Pro-XG-Aggregation provides your enterprise with the ultimate top-tier network hub solution.
Enterprise Application Scenarios (Perfect for Enterprise)
Ready for 25G Ultra-Fast Backbone Upgrades
Equipped with 32x 25G SFP28 interfaces, perfectly meeting the needs of next-generation ultra-fast data transmission between large enterprises and servers. Say goodbye to network bottlenecks.
Layer 3 Advanced Routing Features
Supports DHCP Server, Inter-VLAN routing, and Static Routing. Significantly reduces the burden on the core router, enhancing overall network performance and security.
Etherlighting™ Technology
Exclusive lighting technology intuitively indicates port location, speed, and VLAN status through color and brightness, making rack management and troubleshooting easier than ever.
1.6 Tbps Ultra-High Switching Capacity
Provides up to 1.6 Tbps total switching capacity and 800 Gbps non-blocking throughput, ensuring ultra-low latency and stable transmission even in highly demanding, dense network environments.
Hardware Specifications
| Device Type | Layer 3 Managed Aggregation Switch |
|---|---|
| Networking Interface | 25G SFP28: (32) 25 Gbps Fiber Ports (backward compatible with 25G/10G/1G) |
| Switching Performance |
Switching Capacity: 1.6 Tbps Non-Blocking Throughput: 800 Gbps Forwarding Rate: 1.2 Bpps |
| Hardware Capacity |
MAC Address Table Size: 32,000 Packet Buffer Size: 8 MB Supported VLANs: 1,000 IPv4 Static Routes: 512 |
| Special Features | 1.3" LCM Touchscreen, Etherlighting™ Port Lighting Technology, Layer 3 Routing Support (DHCP Server, DHCP Relay, Inter-VLAN Routing, Static Routing) |
| Dimensions | 442.4 x 480 x 43.7 mm (Standard 1U Rackmount) |
| Weight | 7.1 kg (7.2 kg with rackmount brackets) |
| Power Method | (1) 100-240V AC, 50/60 Hz Universal Input (1) USP RPS DC Backup Power Input |
| Power Supply | AC/DC, Internal Power Supply, 200W |
| Max. Power Consumption | 200W |
| Environment |
Operating Temperature: -5°C to 40°C (23°F to 104°F) Operating Humidity: 10% to 90% (Non-condensing) |
| Certifications | CE, FCC, IC, Anatel |
| Warranty | 2-Year Limited Carry-in Warranty |

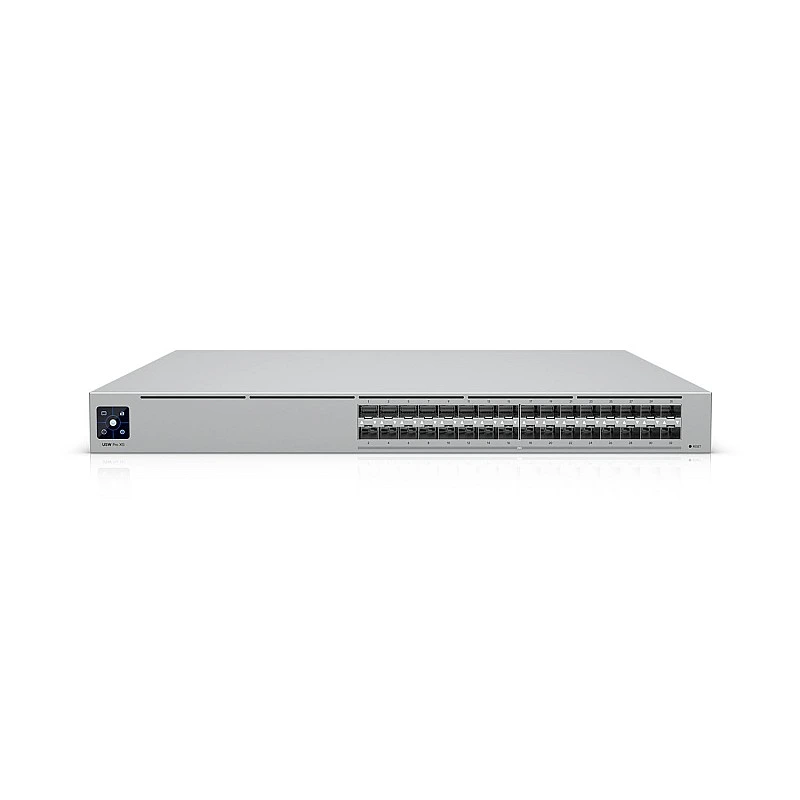

Device Details and Appearance
Original Package Contents
