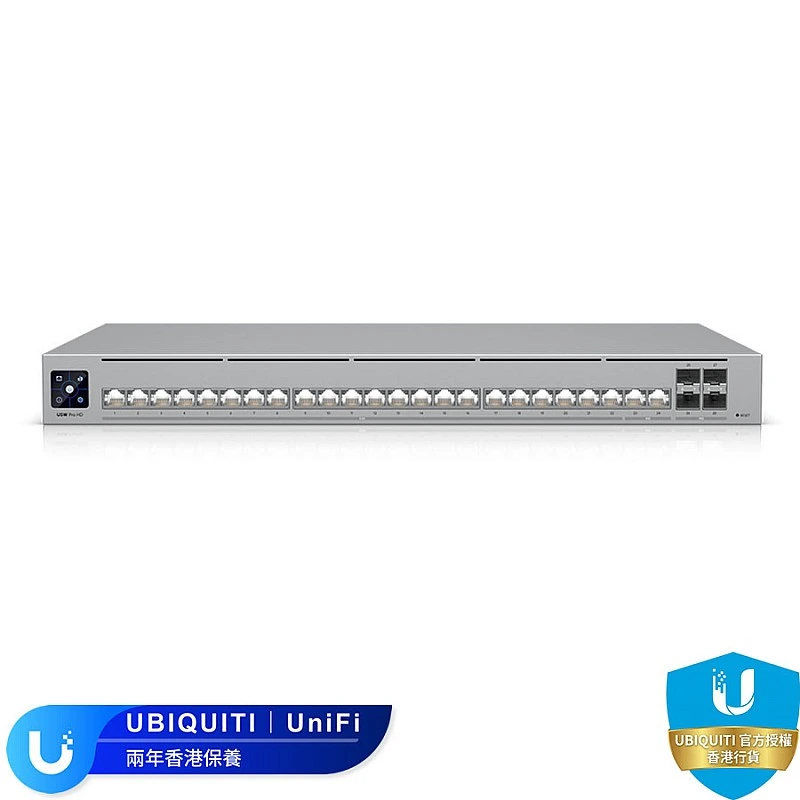

Ubiquiti UniFi Switch Pro HD 24 (USW-Pro-HD-24) — 2.5G/10G Layer 3 Multi-Gigabit Switch Built for Enterprise Backbones
Experience ultra-fast enterprise-grade networking! The UniFi Switch Pro HD 24 (USW-Pro-HD-24) is a powerful 24-port Layer 3 multi-gigabit switch designed to push the limits of modern enterprise networks. It perfectly supports high-density 2.5G and 10G device connections and features 10G SFP+ fiber uplinks, bringing you an unparalleled backbone network experience.
An all-in-one device equipped with 22x 2.5G network ports, 2x 10G network ports, and 4x 10G SFP+ fiber uplink slots. Whether building a multi-device large office network, a data center, or handling ultra-high bandwidth server connections and workstations, the USW-Pro-HD-24 provides a top-tier network hub solution for your enterprise.
Perfect for Enterprise
Ready for 2.5G / 10G Backbone Upgrades
Equipped with 4x 10G SFP+ interfaces, 2x 10 GbE RJ45 ports, and 22x 2.5 GbE RJ45 ports, perfectly meeting the next-generation ultra-fast data transmission needs between large enterprises and servers, eliminating network bottlenecks.
Advanced Layer 3 Routing Features
Supports DHCP server, Inter-VLAN routing, and Static Routing, significantly reducing the burden on core routers and enhancing overall network performance and security.
Etherlighting™ Technology
Exclusive lighting technology intuitively displays port location, speed, and VLAN status through color and brightness, making rack management and troubleshooting easier than ever.
230 Gbps Ultra-High Switching Capacity
Delivers up to 230 Gbps total switching capacity and 115 Gbps non-blocking throughput, ensuring ultra-low latency and stable transmission even in highly demanding, dense network environments.
Hardware Specifications
| Device Type | Managed Layer 3 Multi-Gigabit Switch |
|---|---|
| Networking Interfaces |
10G RJ45: (2) 10 GbE (10G/5G/2.5G/1G/100M/10M) 2.5G RJ45: (22) 2.5 GbE (2.5G/1G/100M/10M) SFP Uplink: (4) 10G SFP+ (10G/1G) |
| Switching Performance |
Total Switching Capacity: 230 Gbps Non-Blocking Throughput: 115 Gbps Forwarding Rate: 171.13 Mpps |
| Management & Special Features | 1.3" LCM touchscreen, Etherlighting™ port illumination, Layer 3 routing support (DHCP Server, Inter-VLAN Routing) |
| Dimensions | 442 x 285 x 44 mm (Standard 1U Rackmount) |
| Weight | Approx. 4.3 kg (Approx. 4.4 kg with mounting brackets) |
| Power Method | (1) 100-240V AC, 50/60 Hz Universal Input (1) USP RPS DC Backup Power Input |
| Power Supply | AC/DC, Internal, 50W |
| Max. Power Consumption | 50W |
| Certifications | CE, FCC, IC |
| Warranty | 2-Year Limited Carry-in Warranty |

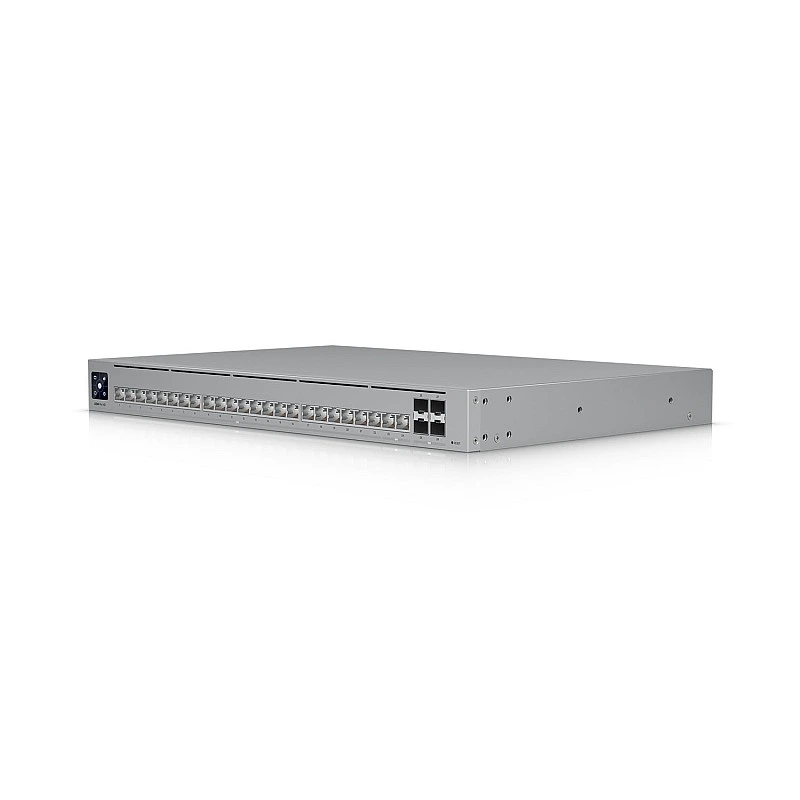

Device Details and Appearance
Package Contents
