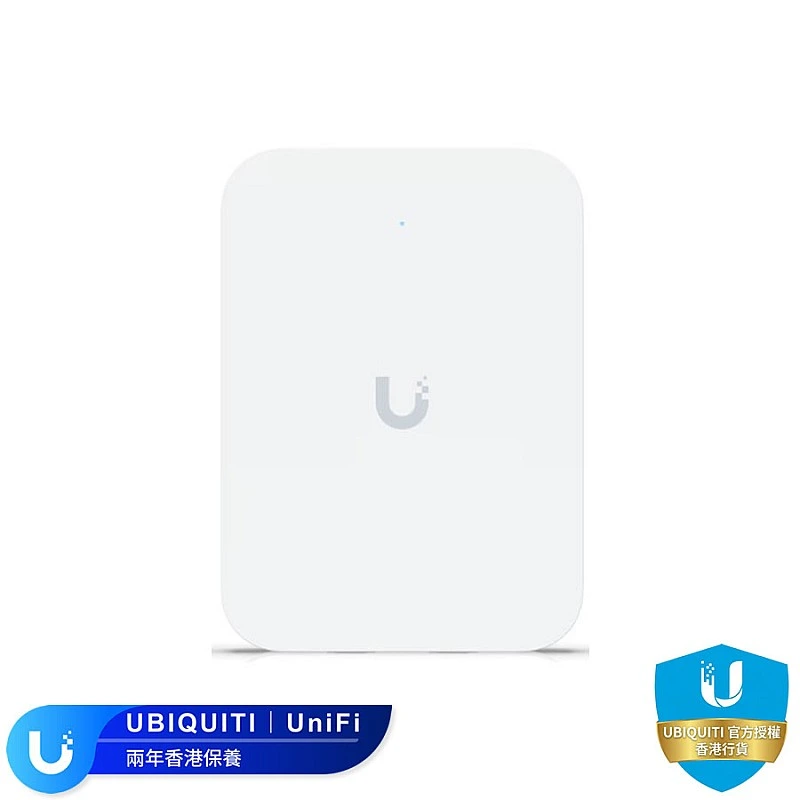

Ubiquiti UniFi 7 In-Wall (U7-IW) — WiFi 7 In-Wall Access Point Designed for Hotel and Room-Level Coverage
Be the first to experience the blazing-fast next-generation WiFi 7! The UniFi 7 In-Wall (U7-IW) is an in-wall access point featuring 4 Spatial Streams. Designed for room-level coverage and seamless installation in hospitality, office, and residential environments, it brings you an unparalleled wireless network experience.
It integrates three 2.5 GbE RJ45 ports (with PoE output support) and up to 115 m² (1,250 ft²) of WiFi coverage in a single unit. Whether handling high-density environments with over 200+ connected devices or providing wired networking and power for multimedia and smart home devices, the U7-IW offers the ideal room-level network hub solution.
Perfect for Enterprise & Hospitality
Ready for the Ultra-Fast WiFi 7 Upgrade
Supports the latest WiFi 7 (802.11be) standard, delivering up to 4.3 Gbps throughput on the 5 GHz band. Perfectly fulfills next-generation high-speed data transmission needs and says goodbye to network bottlenecks.
Built-in 2.5 GbE & PoE Output

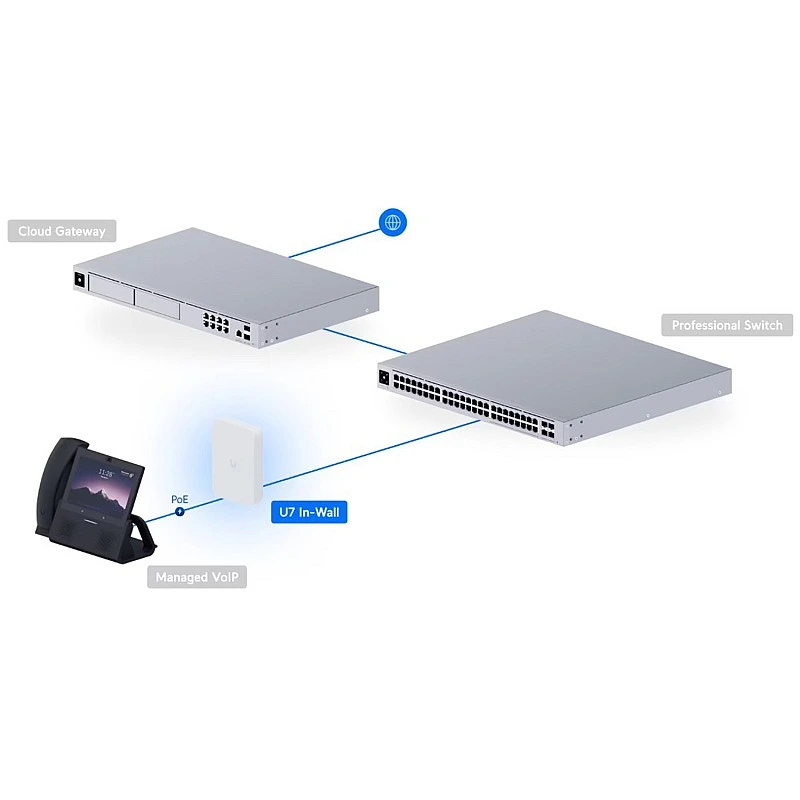

The bottom panel features three 2.5 GbE RJ45 ports, supporting PoE+ input and a single-port PoE output (PoE Out) to easily connect and power devices like IP phones or IP cameras.
Optimized Room-Level Tuning
Designed specifically for individual rooms and hospitality environments, providing up to 115 m² (1,250 sq. ft.) of dedicated, dead-zone-free coverage.
Up to 200+ Connected Devices
Equipped with 4 spatial streams to ensure ultra-low latency and stable transmission even in highly congested network environments, supporting over 200 concurrently connected devices.
Hardware Specifications
| Device Type | In-Wall WiFi 7 Access Point |
|---|---|
| Networking Interface | (3) 2.5 GbE RJ45 ports |
| WiFi & Antenna |
WiFi 7 (802.11be) 5 GHz: 2 x 2 DL/UL MU-MIMO (8 dBi) 2.4 GHz: 2 x 2 DL/UL MU-MIMO (4 dBi) |
| Wireless Performance |
5 GHz Throughput: 4.3 Gbps (BW240) 2.4 GHz Throughput: 688 Mbps (BW40) Spatial Streams: 4 |
| Coverage & Capacity |
Coverage Area: 115 m² (1,250 ft²) Concurrent Clients: 200+ |
| Special Features | (1) PoE+ input and (1) PoE output, Isolated Guest Network, PPSK (Private Pre-Shared Key), Band Steering |
| Dimensions | 137 x 98.7 x 30.2 mm (with metal wall mount) |
| Weight | 400 g (14.1 oz) |
| Power Method | PoE or PoE+ (PoE+ is required to enable PoE output) |
| Max. Power Consumption | 13W (excluding PoE output load) |
| Certifications | CE, FCC, IC, SRRC, Anatel |
| Warranty | 2-Year Limited Carry-in Warranty |

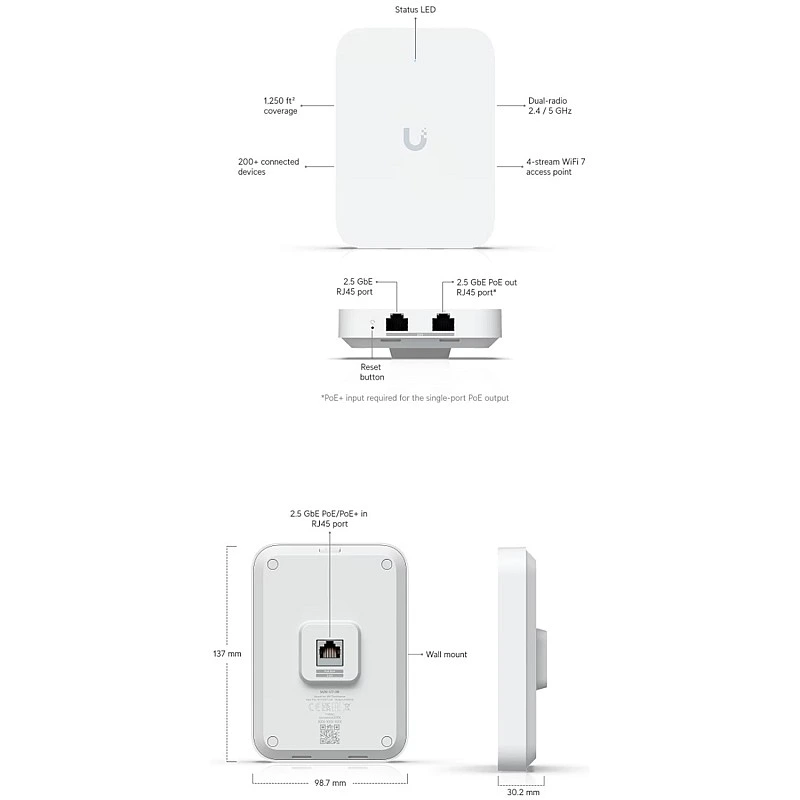

Device Details and Appearance
Package Contents
