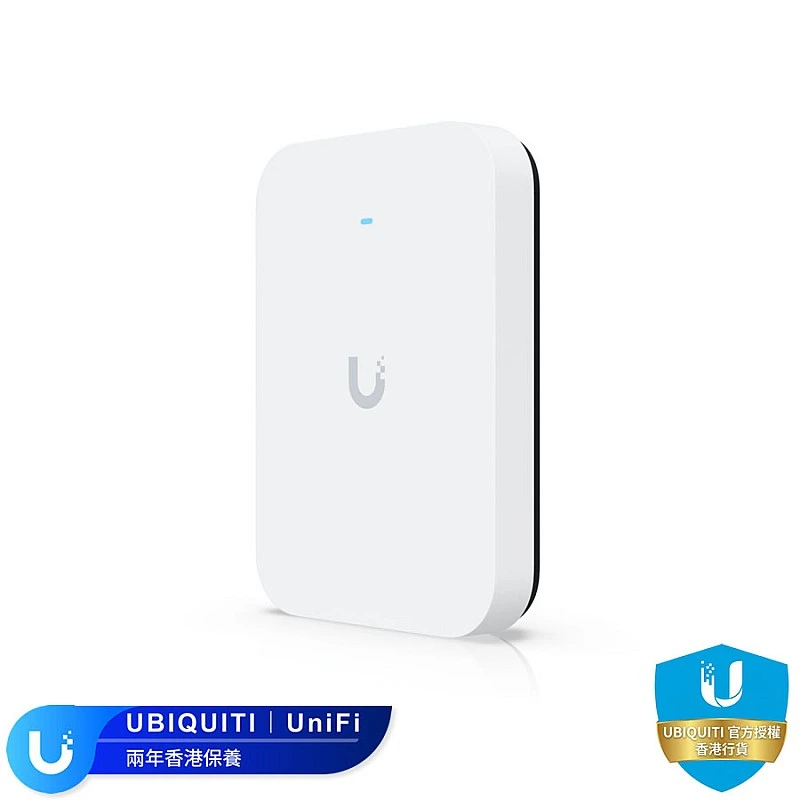

Ubiquiti UniFi U7 Pro XG Wall (U7-Pro-XG-Wall) — Premium Wall-Mounted WiFi 7 Access Point with 10 GbE Uplink
Experience the ultra-fast and seamless next-generation wireless network! The UniFi U7 Pro XG Wall (U7-Pro-XG-Wall) is a powerful WiFi 7 wall-mounted access point supporting the new 6 GHz band and a wide 320 MHz channel width. Designed specifically for high-density environments, large offices, and peak bandwidth demands, it brings you a breakthrough wireless connectivity experience.
Its minimalist wall-mounted design packs powerful performance, featuring 1 x 10 GbE high-speed uplink port and 6 built-in Spatial Streams, capable of supporting over 300+ concurrent client devices. A single unit can cover up to 140 square meters (1,500 ft²), making it the optimal hub solution for building a future-proof, high-speed, and unobstructed network.
Perfect for Enterprise
Boundary-Pushing WiFi 7 Speeds
Supports the latest 802.11be WiFi 7 protocol and the 6 GHz band (up to 320 MHz channel width), with max throughput pushing the limits (up to 5.8 Gbps on 6 GHz), completely eliminating wireless network bottlenecks.
10 GbE High-Speed Uplink

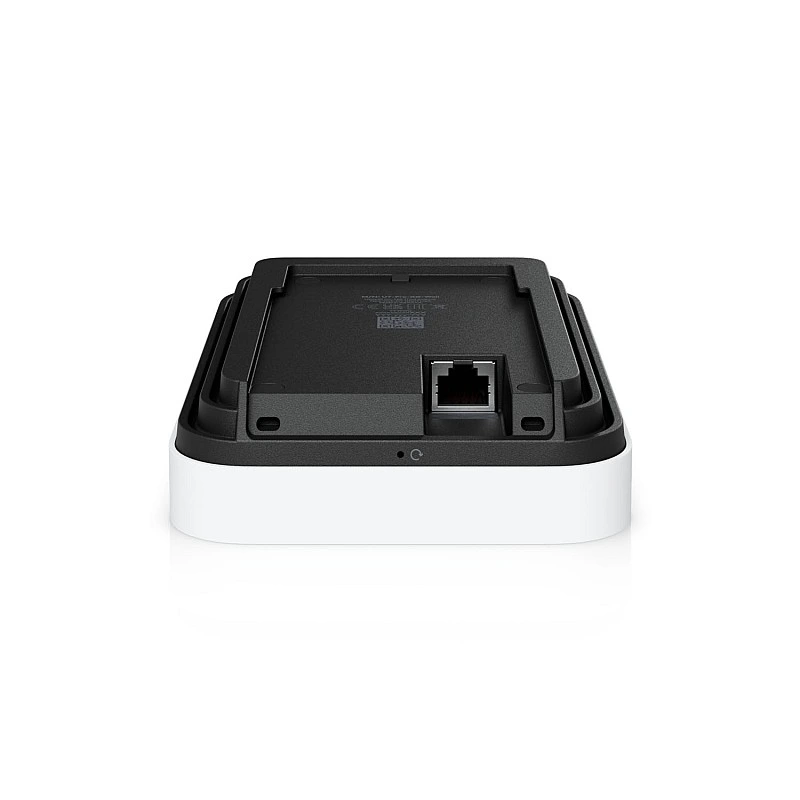

Equipped with one 10 GbE RJ45 network port and PoE+ technology, ensuring ultra-high-capacity wireless data is transmitted smoothly to the backbone network.
Extreme Capacity & Broad Coverage
Features 6 built-in Spatial Streams, supporting 300+ concurrent client devices, with a single-unit coverage area of up to 140 square meters (1,500 ft²).
Invisible Aesthetic Wall Design
Designed specifically for wall mounting with a compact and elegant exterior. It can be paired with accessories like a Paintable Cover to seamlessly blend into various modern interior designs.
Hardware Specifications
| Device Type | Wall-mounted WiFi 7 Access Point (AP) |
|---|---|
| WiFi Standard | WiFi 7 (802.11be), backwards compatible with WiFi 6 / WiFi 5 / WiFi 4 |
| Networking Interface | Uplink: (1) 10 GbE RJ45 port |
| Max. Data Rate |
6 GHz: 5.8 Gbps (BW320 channel width) 5 GHz: 4.3 Gbps (BW240 channel width) 2.4 GHz: 688 Mbps (BW40 channel width) |
| Antenna & MIMO |
6 GHz: 6 dBi, 2 x 2 (DL/UL MU-MIMO) 5 GHz: 6 dBi, 2 x 2 (DL/UL MU-MIMO) 2.4 GHz: 4 dBi, 2 x 2 (DL/UL MU-MIMO) |
| Spatial Streams | 6 |
| Coverage & Capacity |
Coverage Area: 140 square meters (1,500 ft²) Max. Client Count: 300+ devices |
| Dimensions | 155 x 108 x 33.5 mm (6.1 x 4.3 x 1.3") |
| Weight | 505 g (1.1 lb) |
| Mounting | Wall-mounted |
| Power Method | PoE+ (Voltage range: 42.5–57V DC) |
| Max. Power Consumption | 22W |
| Certifications | CE, FCC, IC |
| Authorized Warranty | 2-Year Limited Carry-in Warranty |

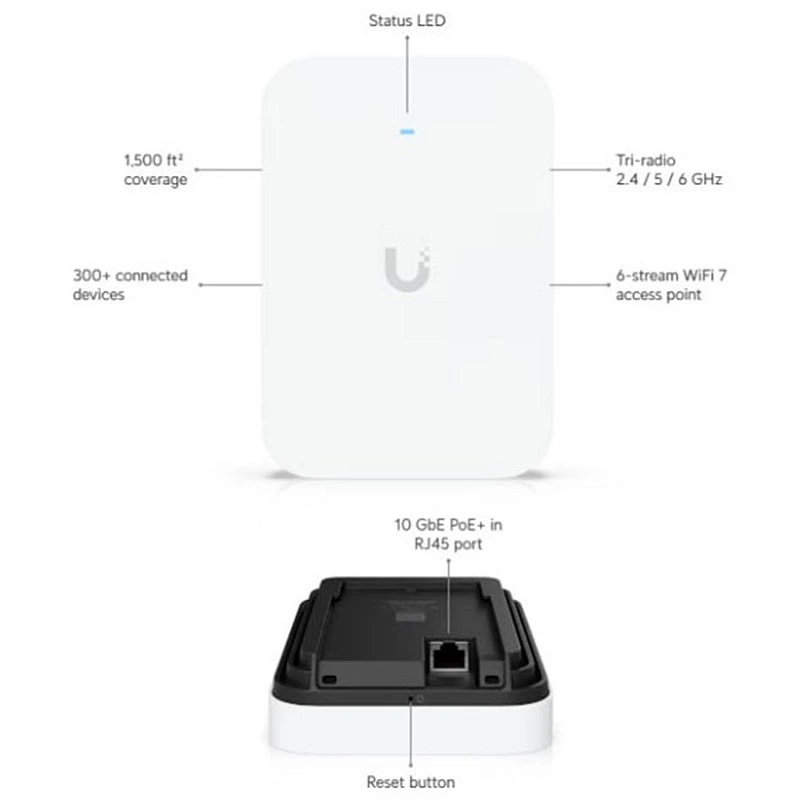

Product Appearance Details

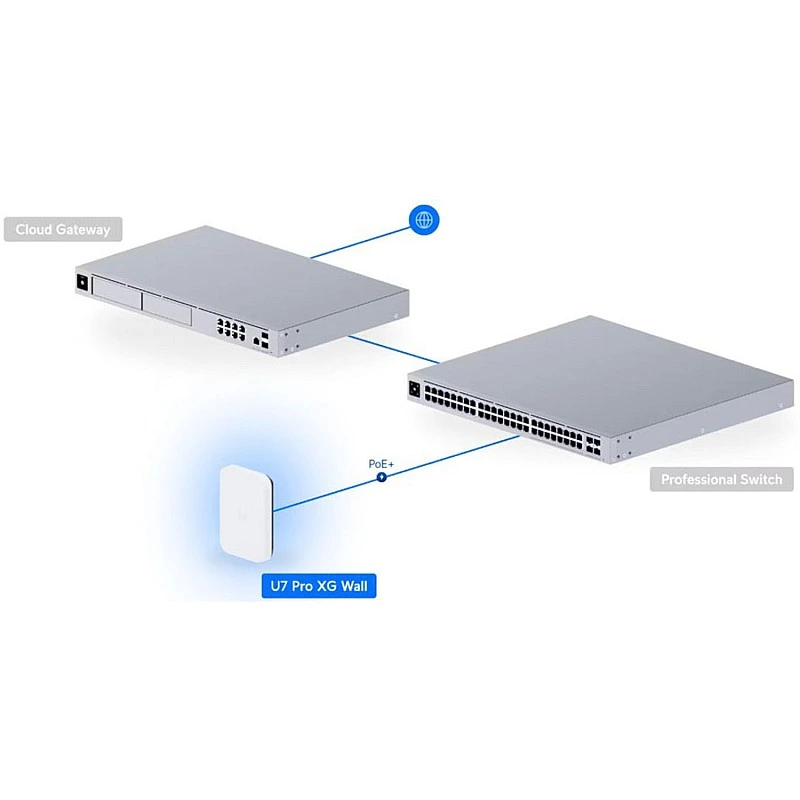

Installation and Accessories Reference
