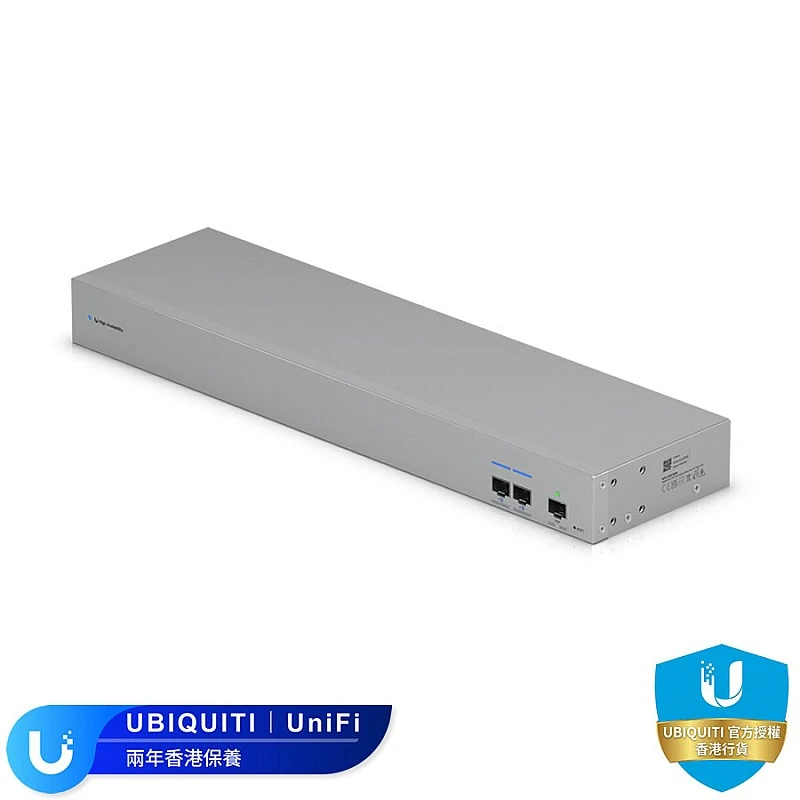

Ubiquiti UniFi WAN Switch (USW-WAN) — 10G SFP+ High Availability Redundant Switch Built for Shadow Mode
Ensure your network never goes offline! The UniFi WAN Switch (USW-WAN) is a 10G SFP+ redundant switch designed specifically for Shadow Mode High Availability architecture. It connects two UniFi gateways to a single ISP, enabling seamless failover when the primary gateway fails and completely eliminating the risk of a single point of failure at the WAN edge.
The device is equipped with three 10G SFP+ fiber ports and one 1 GbE RJ45 management port. To meet the demands of rigorous enterprise environments, it features built-in Dual AC Inputs for hardware-level power redundancy, making it an essential solution for building uninterrupted critical network infrastructure. (Note: If connecting multiple ISPs, please deploy one additional USW-WAN switch per ISP.)
High Availability Features
Built for Shadow Mode
Perfectly supports the Shadow Mode architecture of UniFi gateways, connecting two gateways to the same ISP to achieve seamless failover and ensure continuous operation of your enterprise network.
10G SFP+ High-Speed Transmission
Equipped with three 10G SFP+ fiber interfaces (1 ISP uplink, 2 downlinks), effortlessly handling 10 Gbps high-speed ISP broadband access without becoming a network bottleneck.
Dual Power Redundancy
Built-in dual AC power inputs and two 36W internal power supplies significantly reduce the risk of network outages caused by single point power failures, providing true enterprise-grade stability.
Dedicated Management Port
Features a dedicated 1 GbE RJ45 management port for securely connecting to the UniFi Network for monitoring and configuration, maintaining physical isolation from external data transmission.
Hardware Specifications
| Device Type | High Availability Redundant Switch (WAN Switch) |
|---|---|
| Networking Interface |
10G Fiber Ports: (3) 10G SFP+ (10G/1G) Dedicated Management Port: (1) 1 GbE RJ45 (1G/100M/10M) |
| Switching Performance |
Switching Capacity: 20 Gbps Non-Blocking Throughput: 10 Gbps Forwarding Rate: 15 Mpps |
| Special Features | Shadow Mode High Availability, Dual AC Power Input Redundancy |
| Software Requirements | UniFi Network version 9.1.119 or newer |
| Dimensions | 442.4 x 120 x 43.7 mm (Standard 1U Rackmount) |
| Weight | 2.2 kg (2.3 kg with rackmount brackets) |
| Materials | SGCC steel |
| Environment |
Operating Temperature: -5 to 40° C (23 to 104° F) Operating Humidity: 10 to 90% Noncondensing |
| ESD/EMP Protection | Air: ± 16kV, Contact: ± 22kV |
| Power Method | (2) 100-240V AC, 50/60 Hz Universal Input |
| Power Supply | (2) AC/DC, Internal, 36W |
| Max. Power Consumption | 13W |
| Certifications | CE, FCC, IC, NDAA Compliant |
| Warranty (Hong Kong Official) | 2-Year Limited Carry-in Warranty |
Device Details and Appearance
Package Contents
