- Stock: Available For Order remaining
- Brand: Synology
- Model: RS1626xs+
Synology RackStation RS1626xs+ — 1U 4-Bay High-Performance Enterprise Storage Server
The perfect balance of enterprise-class performance! The Synology RS1626xs+ is a highly flexible 1U 4-Bay storage server. Powered by a robust Intel Xeon D-1726 6-core processor and 16 GB DDR4 ECC RDIMM memory, it delivers outstanding file services, virtualization storage, and data protection for medium to large enterprises.
Delivering incredible transmission bandwidth, it achieves over 84,000 4K random write IOPS, sequential read speeds of 2,100 MB/s, and sequential write speeds of 1,500 MB/s. Natively equipped with 4 x 3.5-inch or 2.5-inch SATA drive bays and 2 dedicated M.2 NVMe SSD acceleration slots, it can easily scale up to a total of 16 bays by connecting 1 expansion unit. Combining expansion flexibility with powerful computing capabilities, the RS1626xs+ is an excellent investment for modern enterprises.
Built for Enterprises
Intel Xeon Enterprise Performance
Equipped with an Intel Xeon D-1726 6-core processor and 16 GB DDR4 ECC RDIMM memory (expandable up to 64 GB), it stably drives large virtual machines and I/O-intensive database workloads.
1U 4-Bay Flexible Expansion
The compact 1U chassis provides 4 standard drive bays and 2 dedicated M.2 SSD slots. Through the expansion port, it can connect to 1 expansion unit (RX1225RP) to flexibly expand to a total of 16 drive bays.
Built-in 10GbE & PCIe 4.0

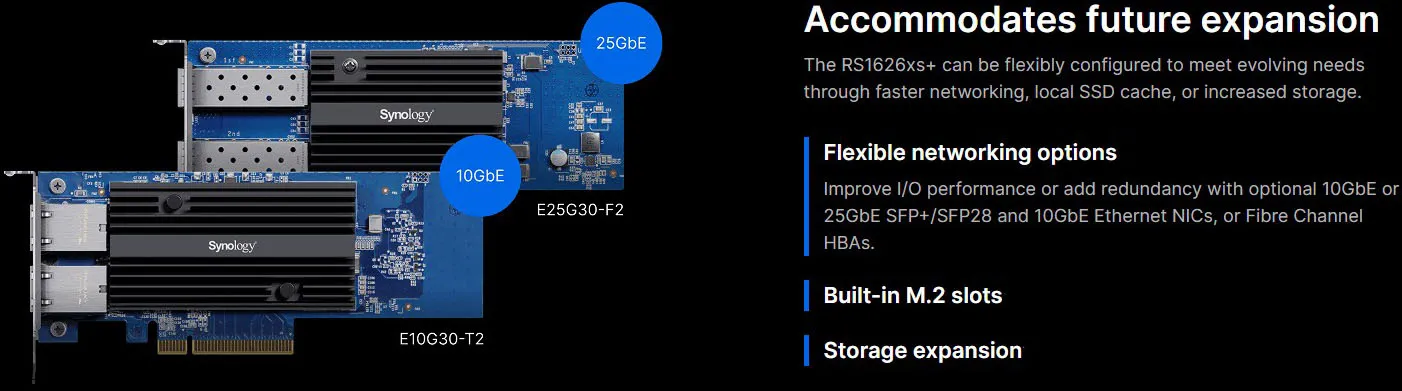

Built-in with 2 x 10GbE network ports, 1 x independent OOB management port, and 1 x PCIe Gen4 x8 slot, allowing you to seamlessly add 10/25GbE network cards or Fibre Channel to break through access bottlenecks.
High Reliability for Mission-Critical Tasks
Equipped with a 250W Redundant Power Supply and support for Synology High Availability cluster, minimizing the risk of single points of failure.
Hardware Specifications
| Device Type | 1U 4-Bay Rackmount Enterprise Storage Server |
|---|---|
| CPU | Intel Xeon D-1726 * 6-core, 12-thread, base clock 2.9 GHz, max boost up to 3.5 GHz |
| System Memory |
16 GB DDR4 ECC RDIMM (Pre-installed 16 GB x 1) * Total of 4 memory slots, expandable up to 64 GB (16 GB x 4) |
| Drive Bays |
4 x 3.5" or 2.5" SATA HDD/SSD 2 x M.2 2280 NVMe SSD * Supports hot-swappable drives (excluding M.2 slots), expandable up to 16 bays (with 1 x Synology RX1225RP expansion unit) |
| Network & External Ports |
2 x 10GbE RJ-45 network ports 1 x OOB (Out-of-Band) independent management port 2 x USB 3.2 Gen 1 ports 1 x Mini-SAS HD expansion port |
| PCIe Expansion |
1 x PCIe Gen4 x8 slot (x8 link) * Supports 10/25GbE network interface cards or Fibre Channel host bus adapters |
| RAID Support | Synology RAID F1, Basic, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10 |
| Form Factor | 1U Rackmount * 44 mm x 481.9 mm x 668.5 mm |
| Weight | 9.5 kg |
| System Fan | 4 x (40 mm x 40 mm) fans (Supports Full-Speed, Cool, and Quiet modes) |
| Power Supply | 250W Redundant Power Supply (100V-240V AC) |
| Noise Level | 52.6 dB(A) |
| Warranty | 5-Year Limited Hardware Warranty |

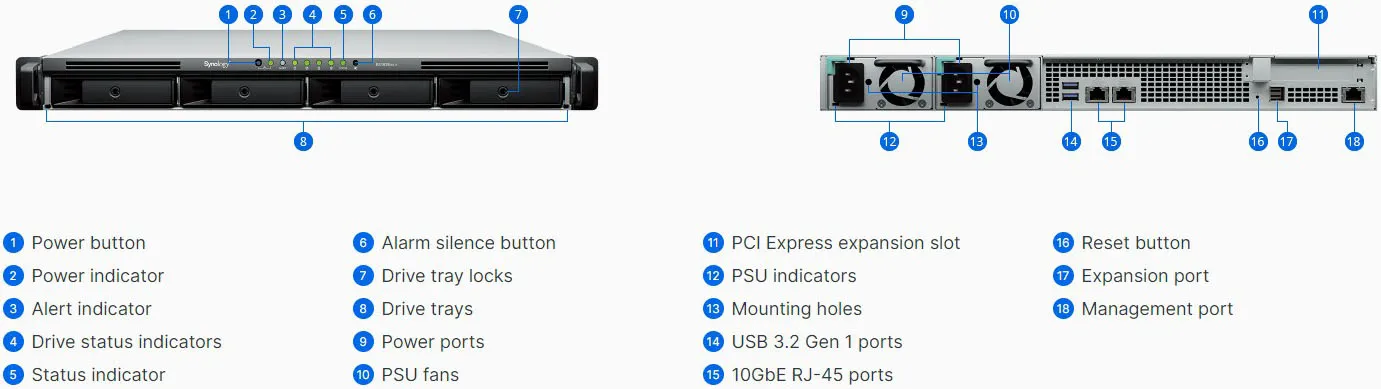

Chassis Details & Ports
