New
Available For Order
Synology RackStation RS2423RP+II 2U 12-Bay Enterprise-Class High-Performance Storage Server AMD Ryzen V1780B / Quad Core 3.35GHz / 8GB DDR4 ECC UDIMM - Authorized Goods
- Stock: Available For Order remaining
- Brand: Synology
- Model: RS2423RP+II
Synology RackStation RS2423RP+II — 2U 12-Bay Enterprise-Class High-Performance Storage Server
Official Hong Kong Import: High-Efficiency Enterprise Storage System for Centralized Data Management
The perfect combination of enterprise-class performance and flexibility! Synology RS2423RP+II is a highly scalable 2U 12-bay rackmount storage server. Powered by a robust AMD Ryzen V1780B quad-core processor and 8 GB DDR4 ECC UDIMM memory, it provides small and medium-sized businesses and branch offices with high-performance, reliable, and cost-efficient file management, data backup, and surveillance solutions.

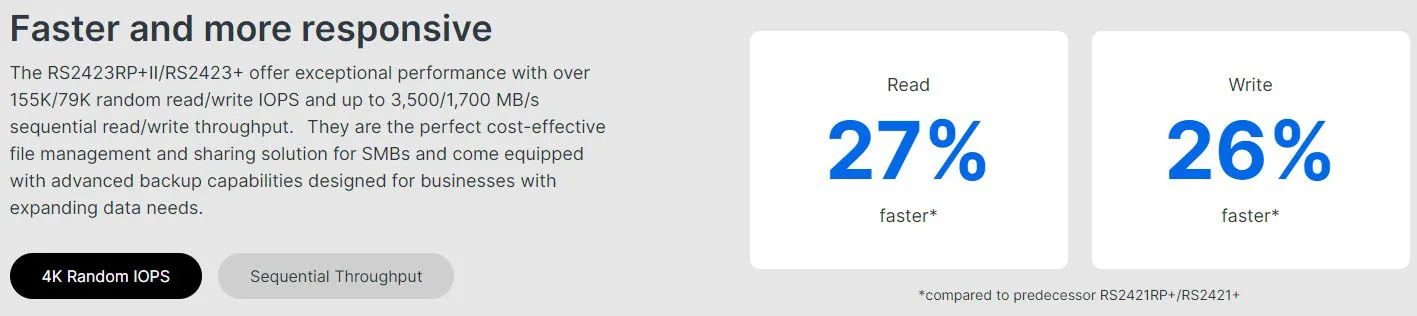

Delivering outstanding throughput, with sequential reads over 3,500 MB/s and sequential writes over 1,700 MB/s (along with over 155K / 79K random 4K read/write IOPS). It comes equipped with 12 native 3.5" or 2.5" SATA drive bays and can be easily expanded up to 24 bays by connecting one Synology RX1223RP expansion unit, comprehensively meeting the growing data storage demands of enterprises.
Built for Enterprises
AMD Ryzen Enterprise Performance
Equipped with an AMD Ryzen V1780B 4-core processor and 8 GB DDR4 ECC UDIMM memory (expandable up to 32 GB), delivering over 3,500 / 1,700 MB/s sequential read/write performance.
2U 12-Bay Flexible Expansion
The compact 2U chassis provides 12 standard drive bays. Easily expand up to 24 drive bays by connecting one RX1223RP expansion unit via the Mini-SAS HD expansion port.
Built-in 10GbE & PCIe Expansion
Includes one 10GbE port, two Gigabit ports, and one PCIe Gen3 x8 slot to seamlessly add 10/25GbE network cards or M.2 NVMe SSD cache adapter cards.
Mission-Critical Reliability
Supports Link Aggregation for network failover and load balancing, along with Synology High Availability to form an active-passive cluster maximizing service uptime.
Product Specifications
| I. Hardware Specifications | |
|---|---|
| Device Type | 2U 12-Bay Rackmount Enterprise Storage Server |
| CPU |
AMD Ryzen V1780B (1 pc) * 64-bit architecture, 4 cores / 8 threads, base frequency 3.35 GHz, turbo frequency up to 3.6 GHz |
| Hardware Encryption Engine | Supported (AES-NI) |
| System Memory |
8 GB DDR4 ECC UDIMM (Pre-installed 8 GB x 1) * Total 2 memory slots, expandable up to 32 GB (16 GB x 2) |
| Drive Bays & Expansion |
12 x 3.5" SATA HDD or 2.5" SATA SSD * Hot-swappable drive support * Expandable up to 24 drive bays with 1 Synology RX1223RP expansion unit |
| External Ports |
1 x RJ-45 10GbE LAN Port 2 x RJ-45 1GbE LAN Ports (Maximum transmission unit MTU is 1,500 bytes for 1GbE ports) 2 x USB 3.2 Gen 1 Ports 1 x Expansion Port (Mini-SAS HD) |
| PCIe Expansion |
1 x PCIe Gen3 x8 slot (x4 link) * Supports 10/25GbE network interface cards, M.2 NVMe SSD adapter cards, or M.2 SSD & 10GbE combo adapter cards |
| Appearance & Rack Support |
2U Rackmount (Height 88 mm x Width 482 mm x Depth 552 mm) * Supports 4-post 19" rack installation (Requires optional Synology Rail Kit RKS-02) |
| Weight | 11.5 kg |
| System Fan |
3 pcs (60 mm x 60 mm x 3 pcs) Easy Replacement System Fans * Fan Speed Modes: Full-Speed Mode, Cool Mode, Quiet Mode |
| Power Supply & Consumption |
350W Redundant Power Supply (100V to 240V AC, 50/60 Hz, Single Phase) * Power Consumption: 119.95 W (Access) / 46.21 W (HDD Hibernation) * British Thermal Unit (BTU): 409.56 BTU/hr (Access) / 157.78 BTU/hr (HDD Hibernation) * Supports Power Recovery, Scheduled Power On/Off, Wake on LAN / WAN |
| Noise Level | 52.3 dB(A) |
| Temperature & Humidity |
Operating Temperature: 0°C to 35°C (32°F to 95°F) | Storage Temperature: -20°C to 60°C (-5°F to 140°F) * Operating Humidity: 8% to 80% RH | Storage Humidity: 5% to 95% RH |
| Certification & Environment |
FCC, CE, BSMI, VCCI, RCM, UKCA, EAC, CCC, KC, UL * RoHS Compliant |
| Packaging Content | Main Unit x 1, Accessory Pack x 1, AC Power Cord x 1, Quick Installation Guide x 1 |
| Optional Accessories |
• DDR4 ECC UDIMM Memory: D4EU02-8G / D4EU02-16G • Expansion Units: RX1223RP • Compatible HDDs & SSDs: Enterprise 3.5" SATA HDD (HAT5300 Series), Plus Series 3.5" SATA HDD (HAT3300 Series), Enterprise 2.5" SATA SSD (SAT5200 Series) • M.2 SSD Adapter Cards: E10M20-T1 (M.2 SSD & 10GbE Combo Card) / M2D20 • Network Interface Cards: 25GbE (E25G30-F2) / 10GbE (E10G30-F2, E10G30-T2, E10G18-T1) • Rail Kit: RKS-02 (Sliding Rail Kit) |
| Warranty |
3-Year Limited Hardware Warranty * Extendable to 5 years with optional EW202 or Extended Warranty Plus |
| II. DSM Software Specifications | |
| Storage Management |
Maximum Single Volume Size: 200 TB (32 GB memory required) / 108 TB (Default configuration) Maximum Internal Volumes: 64 * Supports SSD Read/Write Cache, SSD TRIM, Storage Efficiency (Deduplication & Compression) |
| RAID Support & Expansion |
Synology Hybrid RAID (SHR), Basic, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10 * RAID Migration: Basic to RAID 1, Basic to RAID 5, RAID 1 to RAID 5, RAID 5 to RAID 6 * Volume Expansion with Larger HDDs: SHR, RAID 1, RAID 5, RAID 6, RAID 10 * Volume Expansion by Adding a HDD: SHR, JBOD, RAID 5, RAID 6 * Global Hot Spare Supported: SHR, RAID 1, RAID 5, RAID 6, RAID 10 |
| Supported File System |
Internal Drives: Btrfs, ext4 External Drives: Btrfs, ext4, ext3, FAT32, NTFS, HFS+, exFAT |
| File Services |
Supported Protocols: SMB, AFP, NFS, FTP, WebDAV, Rsync * Maximum Number of SMB Connections (FSCT-Based): 380 * Windows Access Control List (ACL) Integration & NFS Kerberos Authentication |
| Account & Shared Folder |
Maximum Local User Accounts: 1,024 | Maximum Local Groups: 256 Maximum Shared Folders: 256 | Maximum Shared Folder Sync Tasks: 12 |
| Backup, Hybrid Cloud & High Availability |
• Synology High Availability: Active-Passive server cluster support • Hyper Backup: Folder and package backup, entire system backup (requires DSM 7.2 or later) • Hybrid Share: Maximum 10 Hybrid Share folders • Log Center: 1,000 Syslog events per second |
| Virtualization |
• VMware vSphere: ESXi 8.0 (up to U2), ESXi 7.0 (up to U3), ESXi 6.7 (up to U3), ESXi 6.5 (up to U3) • Microsoft Hyper-V: Windows Server 2025, Windows Server 2022 • Citrix XenServer: XenServer 8, Citrix Hypervisor 8.2 LTSR CU1 • OpenStack: Cinder |
| General Specifications |
SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, HTTP, HTTPS, FTP, SNMP, LDAP, CalDAV * Supported Browsers: Chrome, Firefox, Edge, Safari | Supports English, Simplified Chinese, Traditional Chinese, etc. (21 languages) |
| III. Add-on Package Specifications | |
| SAN Manager |
Maximum iSCSI Target Number: 64 | Maximum LUN Number: 128 * Supports LUN Clone / Snapshot and Windows ODX |
| Snapshot Replication |
Maximum Snapshots per Shared Folder: 256 | Maximum Snapshots per LUN: 64 | Maximum Snapshots per System: 4,096 * Maximum Replication Tasks for Shared Folders: 32 | LUNs: 16 | System: 32 |
| Synology Drive & Office |
• Synology Drive: Recommended Concurrent Users: 680 | Hosted Files: 5,000,000 • Synology Office: Recommended Concurrent Users: 660 |
| Synology MailPlus |
Free Email Accounts: 5 (Additional accounts require license purchase) Recommended Maximum Users: 790 |
| Surveillance Station |
Default Licenses: 2 | Maximum IP Cameras: 75 channels * H.264 Total FPS: 1080p: 75 channels (2100 FPS) / 3M: 75 (1500) / 5M: 75 (900) / 4K: 55 (550) * H.265 Total FPS: 1080p: 75 channels (2250 FPS) / 3M: 75 (2250) / 5M: 75 (1500) / 4K: 75 (900) |
| Virtual Machine Manager | Recommended Virtual Machine Instances: 8 | Recommended Virtual DSM Number: 8 (including 1 Free License) |
| Synology AI Console & Other Packages |
• Synology AI Console: Third-party AI model integration, max de-identification rate 380 words/sec • Central Management System (CMS): Multi-server centralized management • Synology Chat: Max users: 150 | VPN Server: Max connections: 12 • Download Station: Max concurrent download tasks: 80 | Synology Photos: Facial & object recognition | Media Server: DLNA compliant |

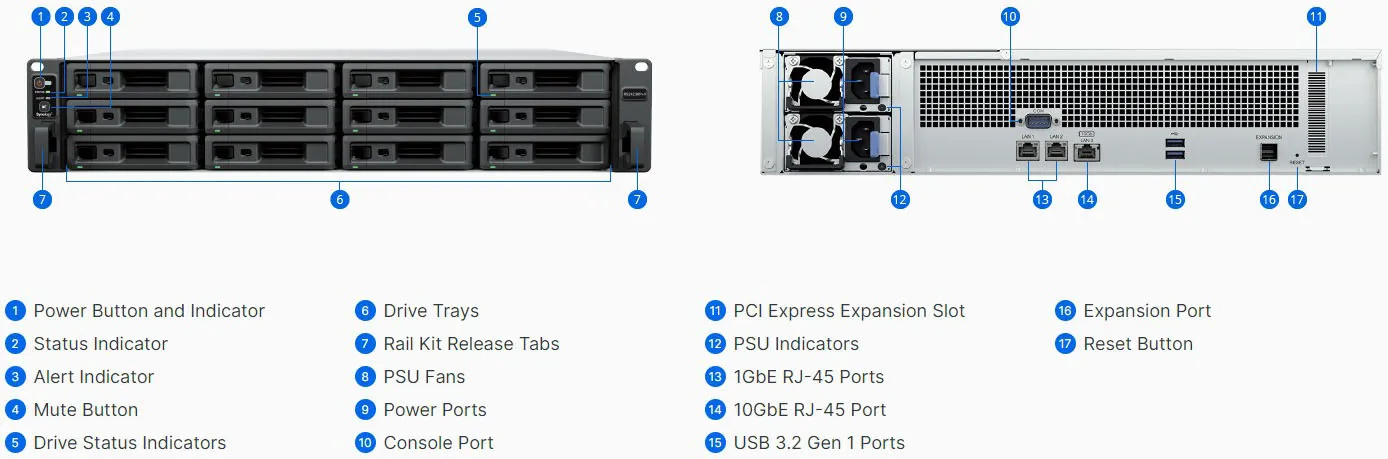

Chassis Details & Features
