Synology SA3400D — 2U 12-Bay Dual Controller High Availability Storage System
Experience uninterrupted enterprise-class services! The Synology SA3400D is a 2U high availability storage system featuring an active-passive dual controller architecture, designed to maintain high availability of enterprise data and uninterrupted services. Powered by an 8-core Intel Xeon processor per controller, it provides your enterprise with extremely reliable data protection and access performance.

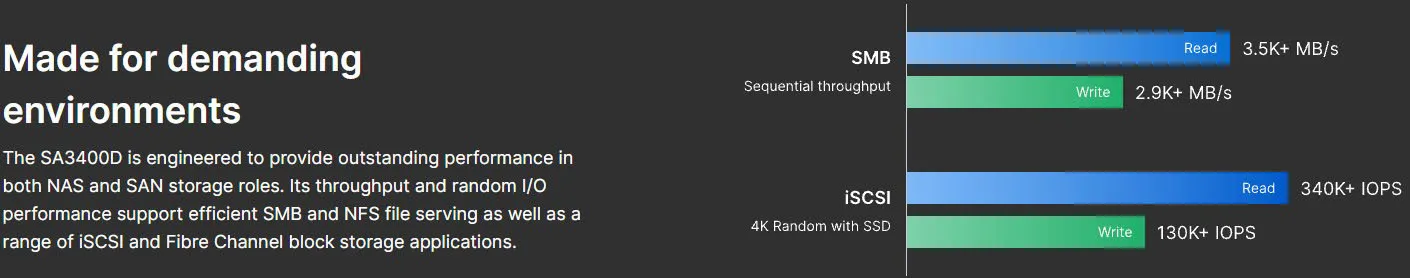

Delivering over 130,000 4K random write IOPS and excellent transmission bandwidth. Equipped with 12 x 3.5" or 2.5" dual-port SAS drive bays, supporting minute-level automatic failover and seamless integration with SAN block storage, the SA3400D is the most solid mission-critical data core for enterprises.
Built for Enterprises
High Availability Dual Controllers
Built-in active-passive dual controller architecture supporting minute-level automatic failover to prevent service interruptions caused by single points of failure, ensuring continuous operation of mission-critical services.
8-Core Intel Xeon Computing Power
Each controller is equipped with an Intel Xeon D-1541 processor and 8 GB DDR4 ECC memory (expandable up to 64 GB) to easily handle heavy workloads.
Flexible High-Speed Networking & Expansion
Each controller features 1 x 10GbE and 2 x 1GbE built-in network ports, plus a PCIe 3.0 x8 slot, supporting expansion with 10/25GbE network cards or Fibre Channel adapters.
Enterprise-Class Reliable Storage
Supports 12 dual-port SAS drives to achieve data access with no single point of failure, and is equipped with 500W dual redundant power supplies to meet the highest enterprise reliability requirements.
Hardware Specifications
| Device Type | 2U 12-Bay Dual Controller High Availability Storage System |
|---|---|
| CPU | Intel Xeon D-1541 (8-Core, 2.1 GHz base clock, up to 2.7 GHz) ※ Per controller configuration |
| Memory |
8 GB DDR4 ECC UDIMM (4 slots, expandable up to 64 GB) ※ Per controller configuration |
| Drive Bays |
12 x 3.5" or 2.5" dual-port SAS HDD/SSD ※ Hot-swappable, expandable up to 36 bays with RXD1219sas |
| Network / External Ports |
1 x 10GbE RJ-45 Port 2 x 1GbE RJ-45 Ports 1 x Mini-SAS HD Expansion Port ※ Per controller configuration |
| PCIe Expansion |
1 x PCIe Gen3 x8 Slot ※ Supports 10/25GbE network cards or Fibre Channel host bus adapters (Per controller) |
| RAID Support | RAID F1, Basic, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10 |
| Form Factor | 2U Rackmount |
| Weight | 19.7 kg |
| Power Supply | 500W Dual Redundant Power Supply (100-240 VAC) |
| Warranty | 5-Year Limited Hardware Warranty |

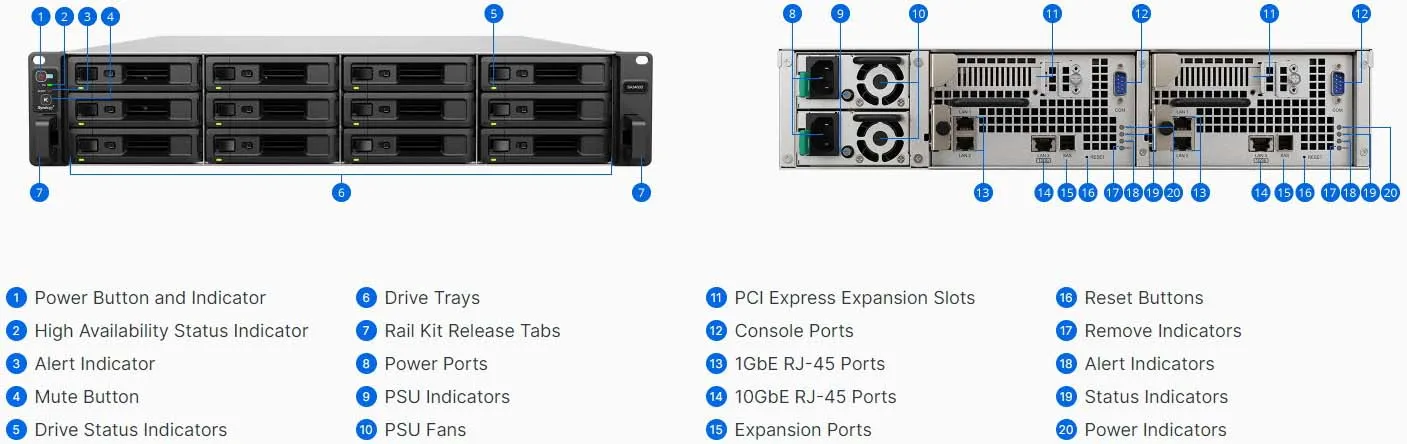

Chassis Details & Features
