Synology RackStation RS11626xs+ — 3U 20-Bay Enterprise High-Performance Storage Server
Experience unparalleled enterprise-class computing performance! The Synology RS11626xs+ is a powerful 3U storage server driven by a robust 16-core AMD EPYC processor and 64 GB of DDR4 ECC memory. It delivers extremely reliable data protection and ultra-high-speed access for large enterprises. A unique OS isolation architecture separates system operations from the data pool, ensuring maximum stability for core services.

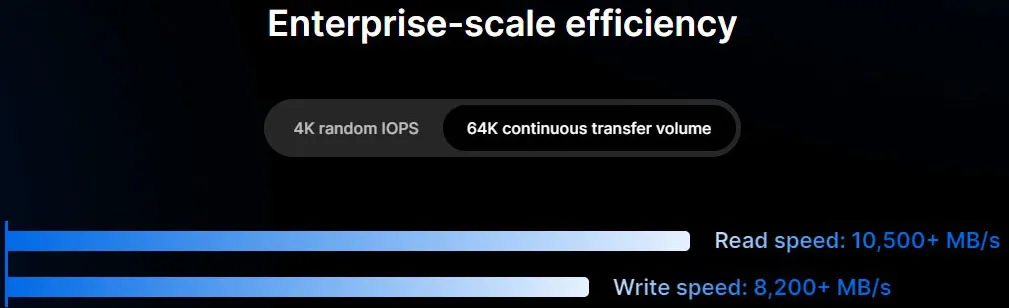

Delivering sequential throughput of over 10,500 MB/s read and 8,200 MB/s write, the RS11626xs+ is ready for any challenge. Equipped with 16 standard drive bays, 4 dedicated SSD bays, and dual M.2 NVMe SSD system drives, it can be expanded to a staggering 116 bays (2.6 PB). It is undoubtedly the most solid backbone for enterprises tackling intensive workloads.
Built for Enterprises
High-Performance AMD EPYC Computing
Powered by an AMD EPYC 7303 16-core processor and 64 GB DDR4 ECC memory (expandable up to 1024 GB) to easily handle heavy virtualization and database workloads.
Massive Petabyte-Scale Expansion
Built with 16 standard drive bays and 4 dedicated SSD bays. It can connect up to 8 RX1222sas expansion units to scale up to 116 bays, achieving seamless capacity expansion.
Top-Tier High-Speed Networking
Features 2 built-in 10GbE ports and 1 dedicated OOB management port, plus 2 PCIe 4.0 x16 slots supporting 10/25GbE network interface cards or Fibre Channel adapters.
Enterprise-Grade Reliability
Utilizes an OS isolation architecture (pre-installed dual M.2 as system drives) and is equipped with 800W dual redundant power supplies and High Availability cluster support to prevent service downtime.
Hardware Specifications
| Device Type | 3U 20-Bay Rackmount Enterprise Storage Server |
|---|---|
| Processor (CPU) | AMD EPYC 7303 * 16-Core, 32-Thread, 2.4 GHz base clock, max boost clock up to 3.4 GHz |
| Memory |
64 GB DDR4 ECC RDIMM (Pre-installed 64 GB x 1) * 16 memory slots in total, expandable up to 1024 GB (64 GB x 16) |
| Drive Bays |
16 x 3.5" or 2.5" SATA HDD/SSD 4 x 2.5" SATA SSD (Dedicated cache / all-flash bays) * Hot-swappable support, expandable up to 116 bays with 8 x RX1222sas |
| System Drive |
2 x M.2 NVMe SSDs (Pre-installed) * OS isolation architecture separates system operations from the data pool |
| Network & External Ports |
2 x 10GbE RJ-45 LAN Ports 1 x Out-of-Band (OOB) Management LAN Port 2 x USB 3.2 Gen 1 Ports 8 x Mini-SAS HD Expansion Ports |
| PCIe Expansion |
2 x PCIe Gen4 x16 slots (x16 link) * Supports 10/25GbE network interface cards or Fibre Channel adapters |
| RAID Support | Synology RAID F1, Basic, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10 |
| Form Factor | 3U Rackmount * 132.3 mm x 482 mm x 724 mm |
| Weight | 19.68 kg |
| System Fan | 4 x (80 mm x 80 mm) fans (Supports Full-Speed/Cool/Quiet modes and easy replacement) |
| Power Supply | 800W Redundant Power Supply (100-240 VAC) |
| Warranty | 5-Year Limited Hardware Warranty |

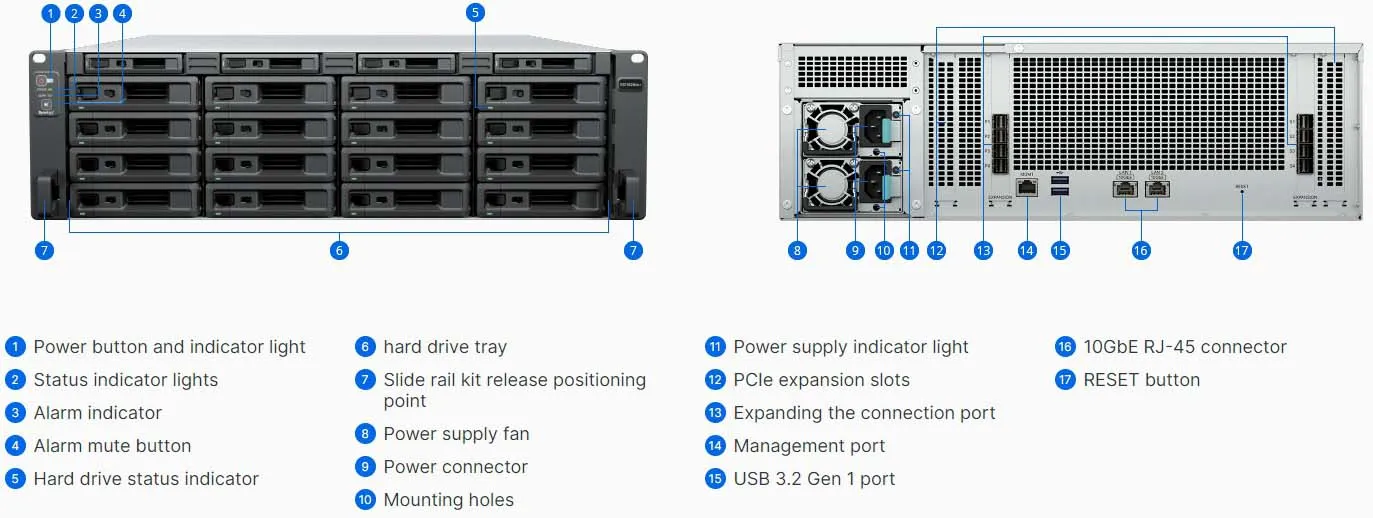

Chassis Details & Features
