- Stock: Available For Order remaining
- Brand: Synology
- Model: FS3420
Synology FlashStation FS3420 — 2U 24-Bay All-Flash Storage Server
Experience ultimate storage performance! Synology FlashStation FS3420 is a high-performance 2U all-flash storage server designed for latency-sensitive and I/O-intensive workloads. Powered by an 8-core Intel Xeon processor, it delivers unparalleled access speeds for your enterprise.

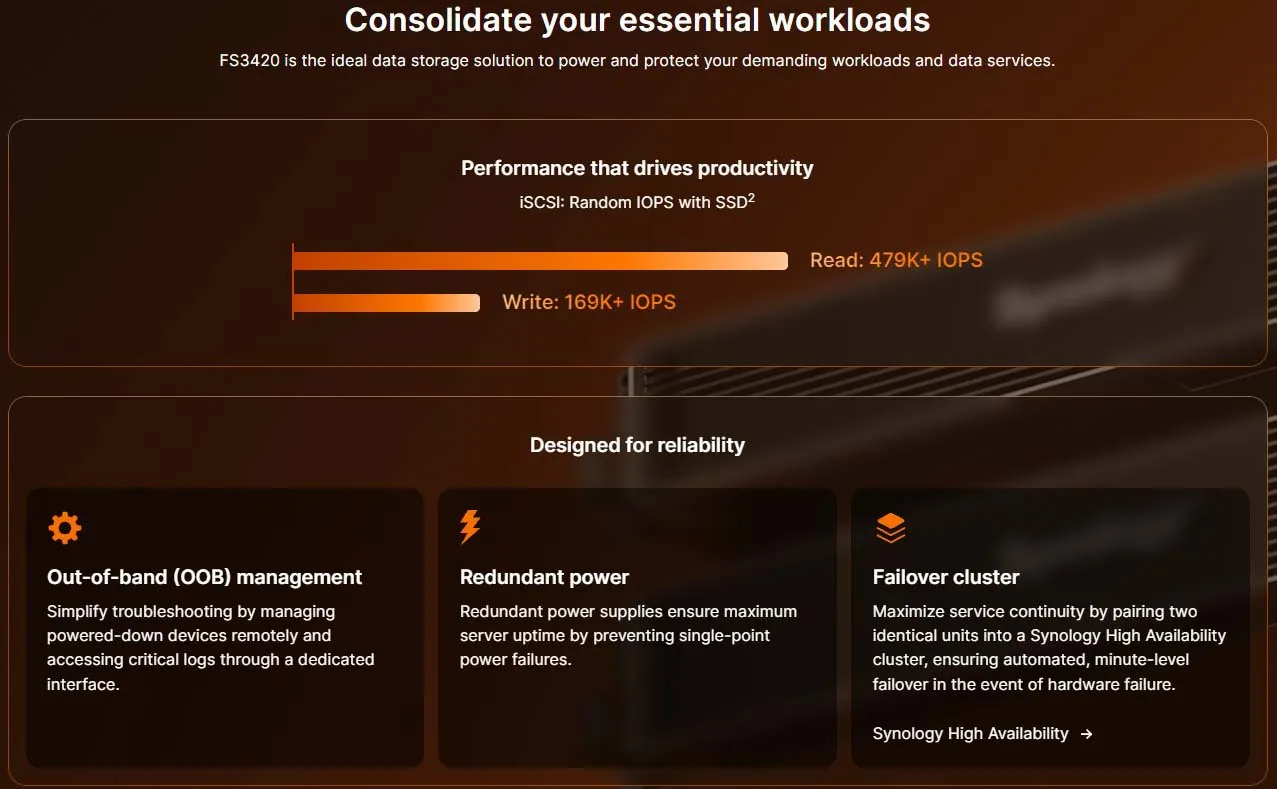

Delivering over 169,000 4K random write IOPS. Whether it's for massive virtual machine clusters, database workloads, or 4K/8K video post-production, the FS3420—equipped with 24 x 2.5" SATA SSD drive bays and supporting 10/25GbE network expansion—serves as the most solid data core for your business.
Built for Enterprise
Extreme All-Flash Performance
Equipped with 24 x 2.5" SATA SSD drive bays, it delivers ultra-low latency access experiences to meet the demands of high-speed storage and virtualization deployments.
8-Core Intel Xeon Computing Power
Powered by an Intel Xeon D-1739 processor and 32 GB DDR4 ECC memory (expandable up to 192 GB) to effortlessly handle heavy workloads.
Flexible High-Speed Networking
Built-in dual 10GbE RJ-45 ports and two PCIe 4.0 x8 expansion slots, supporting 10/25GbE network cards or Fibre Channel host bus adapters.
Enterprise-Grade Reliability
Supports Synology High Availability cluster redundancy, and comes equipped with dual redundant 550W power supplies and a dedicated out-of-band (OOB) management port.
Hardware Specifications
| Device Type | 2U 24-Bay All-Flash NAS |
|---|---|
| Processor (CPU) | Intel Xeon D-1739 (8-Core, 3.0 GHz base clock, up to 3.5 GHz) |
| Memory |
32 GB DDR4 ECC RDIMM (6 slots, expandable up to 192 GB) |
| Drive Bays | 24 x 2.5" SATA SSD (Hot-swappable support) |
| Network / External Ports |
2 x 10GbE RJ-45 ports 1 x Out-of-band (OOB) management port 2 x USB 3.2 Gen 1 ports |
| PCIe Expansion | 2 x PCIe Gen4 x8 slots (Supports 10/25GbE network cards or Fibre Channel adapters) |
| RAID Support | RAID F1, Basic, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10 |
| Form Factor | 2U Rackmount |
| Weight | 15.0 kg |
| Power Supply | Dual Redundant 550W Power Supply (100-240 VAC) |
| Warranty | 5-Year Limited Hardware Warranty |

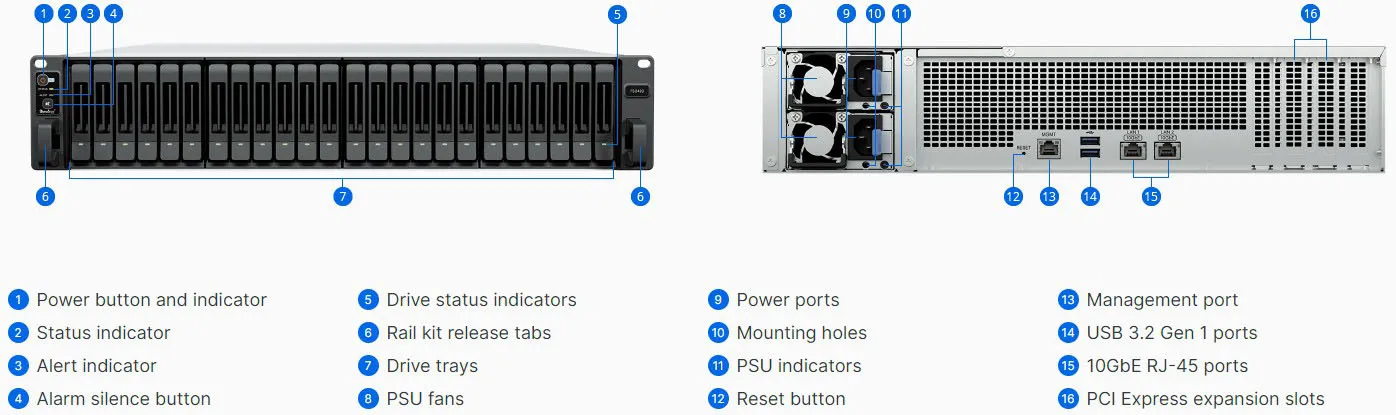

Chassis Details & Features
