- Stock: Available For Order remaining
- Brand: Synology
- Model: DS925neo+
Synology DiskStation DS925neo+ — 4-Bay Desktop Enterprise Network Attached Storage (NAS)
The perfect combination of enterprise-grade performance and flexibility! The Synology DS925neo+ Series is a highly scalable 4-Bay desktop NAS. Powered by an AMD Ryzen V1500B 4-core processor and DDR4 memory, it delivers an exceptional file management, data protection, virtualization, and centralized backup solution for small-to-medium businesses and professional studios.
Equipped with dual built-in 2.5GbE LAN ports, it provides fast and reliable network bandwidth to achieve over 522 MB/s sequential read and 565 MB/s sequential write speeds. It natively features four drive bays supporting 3.5" or 2.5" SATA drives, plus two built-in M.2 2280 NVMe SSD slots for SSD caching or creating all-flash storage pools. By connecting one DX525 expansion unit via the USB Type-C expansion port, you can effortlessly scale up to 9 drive bays (supporting up to 216 TB of raw storage capacity), making it an ideal investment for growing business data needs.
Built for Business
AMD Ryzen Enterprise Performance
Equipped with an AMD Ryzen V1500B 4-core 8-thread processor and DDR4 SODIMM memory (expandable up to 32 GB) to reliably power multitasking applications, virtual machines, and intensive database I/O workloads.
Flexible 4-Bay Desktop Scalability
The compact desktop chassis provides 4 standard drive bays (up to 96 TB raw capacity). Connect 1 DX525 expansion unit via the rear USB Type-C expansion port to flexibly scale up to 9 drive bays (up to 216 TB raw capacity).
Built-in Dual 2.5GbE & M.2 NVMe

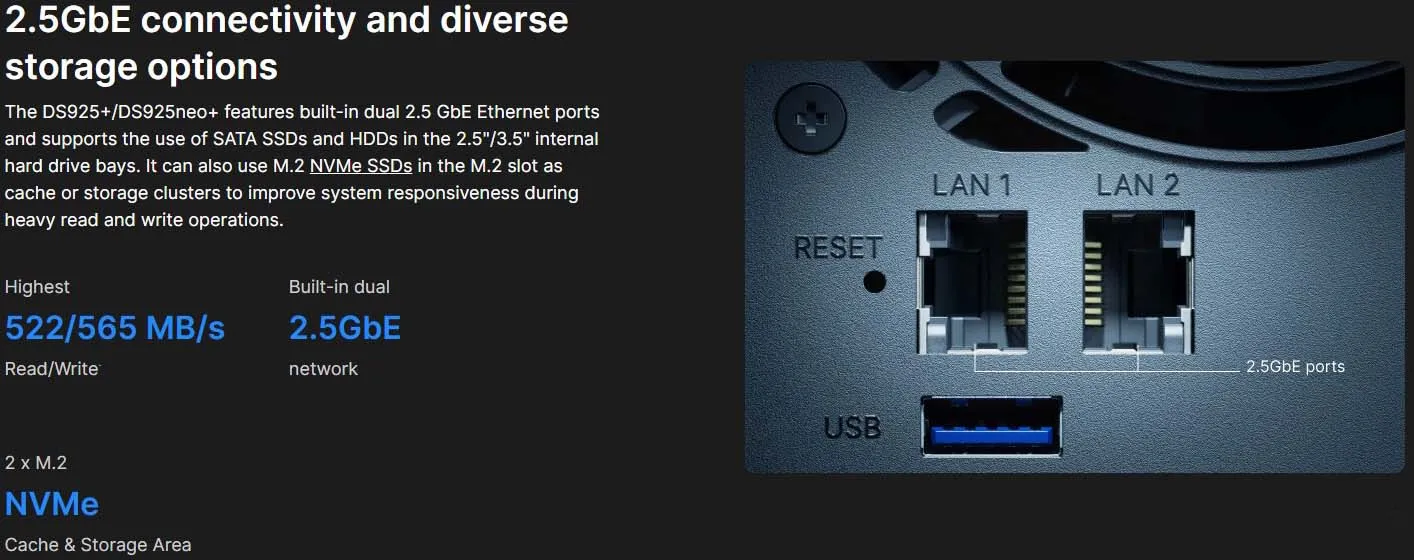

Features two built-in 2.5GbE RJ-45 LAN ports supporting Link Aggregation and failover, plus two M.2 2280 NVMe SSD slots for read/write caching or creating SSD storage pools without occupying front drive bays.
Comprehensive Data Protection & Smart Surveillance
Integrates Synology backup solutions to seamlessly protect physical PCs, virtual machines, and cloud services, defends against ransomware with immutable snapshot technology, and manages up to 40 IP cameras simultaneously.
Hardware and System Specifications
| Hardware Specifications | |
|---|---|
| Device Type | 4-Bay Desktop Enterprise NAS |
| Processor (CPU) |
AMD Ryzen V1500B (CPU Quantity: 1) * 64-bit architecture, 4-core 8-thread, 2.2 GHz base frequency |
| Hardware Encryption Engine | Supported (AES-NI) |
| System Memory |
4 GB DDR4 ECC SODIMM (4 GB × 1 pre-installed) * Note: DS925neo+ comes pre-installed with 4 GB DDR4 non-ECC SODIMM (4 GB × 1); 2 total memory slots, expandable up to 32 GB (16 GB × 2). For multi-module configurations, all modules must be identical and share the same model number. |
| Drive Bays & Expansion |
4 × 3.5" SATA HDD or 2.5" SATA SSD 2 × M.2 2280 NVMe SSD slots (supports cache or storage pool creation) * Expandable up to 9 drive bays with 1 × Synology DX525 expansion unit (supports up to 216 TB maximum raw capacity) |
| Hot Swappable Drive |
Supported * Note: The hot swappable drive feature is not supported by M.2 SSD slots. |
| External Ports |
2 × RJ-45 2.5GbE LAN Ports 2 × USB 3.2 Gen 1 Ports 1 × Expansion Port (USB Type-C) |
| Dimensions (Height × Width × Depth) | 166 mm × 199 mm × 223 mm |
| Weight | 2.26 kg |
| System Fan & Cooling Modes |
2 × (92 mm × 92 mm) Fans * Supported fan modes: Full-Speed Mode, Cool Mode, Quiet Mode |
| Adjustable Front LED Brightness | Supported |
| Power Management |
Supports Power Recovery Supports Wake on LAN / WAN Supports Scheduled Power On / Off |
| Noise Level | 20.5 dB(A) |
| Power Supply Unit / Adapter |
100W / 120W * AC Input Power Voltage: 100V to 240V AC (Power Frequency: 50/60 Hz, Single Phase) |
| Power Consumption |
37.91 W (Access) 12.33 W (HDD Hibernation) |
| British Thermal Unit (BTU) |
129.27 BTU/hr (Access) 42.05 BTU/hr (HDD Hibernation) |
| Operating & Storage Environment |
Operating Temperature: 0°C to 40°C (32°F to 104°F) Storage Temperature: -20°C to 60°C (-5°F to 140°F) Relative Humidity: 8% to 80% RH (Operating) / 5% to 95% RH (Storage) |
| Certifications | FCC, CE, BSMI, VCCI, RCM, UKCA, EAC, CCC, KC, BIS |
| Environmental Standards | RoHS Compliant |
| Packaging Content | Main Unit × 1, Accessory Pack × 1, AC Power Adapter × 1, AC Power Cord × 1, RJ-45 LAN Cable × 2 |
| Optional Accessories |
• DDR4 ECC SODIMM: D4ES04-4G / D4ES03-8G / D4ES03-16G (DS925neo+ also supports DDR4 non-ECC: D4NS01-4G) • Expansion Unit: Synology DX525 • 3.5" SATA HDD: Enterprise Series HAT5300 / Plus Series HAT3300 • 2.5" SATA SSD: Enterprise Series SAT5200 • M.2 2280 NVMe SSD: Enterprise Series SNV3400 & SNV5400 |
| Warranty |
3-Year Hardware Warranty * Extendable up to 5 years with EW201 or Extended Warranty Plus |
| DSM System & Software Specifications | |
| Storage Management |
• Maximum Single Volume Size: 200 TB (at least 32 GB memory required) / 108 TB • Maximum Internal Volume Number: 32 • Advanced SSD Support: M.2 SSD Storage Pool Support, SSD Read / Write Cache, SSD TRIM |
| Supported File Systems |
Internal Drives: Btrfs, ext4 External Drives: Btrfs, ext4, ext3, FAT32, NTFS, HFS+, exFAT |
| Supported RAID Types | Synology Hybrid RAID (SHR), Basic, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10 |
| RAID Migration & Volume Expansion |
• RAID Migration: Basic to RAID 1, Basic to RAID 5, RAID 1 to RAID 5, RAID 5 to RAID 6 • Volume Expansion with Larger HDDs: SHR, RAID 1, RAID 5, RAID 6, RAID 10 • Volume Expansion by Adding a HDD: SHR, JBOD, RAID 5, RAID 6 (with Expansion Unit) • Global Hot Spare Support: SHR, RAID 1, RAID 5, RAID 6 (with Expansion Unit), RAID 10 (with Expansion Unit) |
| File Services & Network Protocols |
• File Protocols: SMB, AFP, NFS, FTP, WebDAV, Rsync • Maximum Concurrent SMB Connections (FSCT-based): 40 • Permissions & Authentication: Windows Access Control List (ACL) Integration, NFS Kerberos Authentication • Supported General Protocols: SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV |
| Account & Shared Folder Limits |
• Maximum Local User Accounts: 512 • Maximum Local Groups: 128 • Maximum Shared Folders: 128 (Maximum Shared Folder Sync Tasks: 8) |
| Backup, Snapshots & High Availability |
• Hyper Backup: Supports folder, package, and entire system backup • Snapshot Replication: Maximum 128 snapshots per shared folder, up to 256 system snapshots • High Availability & Hybrid Cloud: Supports Synology High Availability; up to 10 Hybrid Share folders • Log Center: Up to 800 Syslog events per second |
| Virtualization & SAN Management |
• Virtualization Support: VMware ESXi 6.5 and VAAI, Windows Server 2022, Citrix Ready, OpenStack • SAN Manager: Maximum 2 iSCSI Targets, Maximum 2 LUNs (Supports LUN Clone / Snapshot and Windows ODX) • Virtual Machine Manager: Recommended 8 Virtual Machines, Recommended 8 Virtual DSM instances (includes 1 free license) |
| Collaboration & Add-on Packages |
• Synology Drive: Up to 80 users, up to 500,000 hosted files • Synology Office: Up to 80 users • Synology MailPlus / MailPlus Server: Up to 90 users (includes 5 free email account licenses) • Synology Chat: Up to 150 users • Network & Download: Download Station up to 80 download tasks; VPN Server up to 8 connections • Media & Management: Supports Central Management System (CMS), DLNA-compliant Media Server, and Synology Photos (supports facial and object recognition) |
| Surveillance Station |
• Default Licenses: 2 free camera licenses included (additional licenses sold separately) • Recommended Max IP Cameras and Total FPS (H.264): 1080p: 40 channels (1050 FPS) / 3M: 40 channels (600 FPS) / 5M: 30 channels (360 FPS) / 4K: 20 channels (200 FPS) • Recommended Max IP Cameras and Total FPS (H.265): 1080p: 40 channels (1200 FPS) / 3M: 40 channels (1000 FPS) / 5M: 40 channels (600 FPS) / 4K: 30 channels (300 FPS) |
| Supported Browsers & Languages |
• Supported Browsers: Chrome, Firefox, Edge, Safari • Supported Languages: English, Traditional Chinese, Simplified Chinese, and multiple international languages |

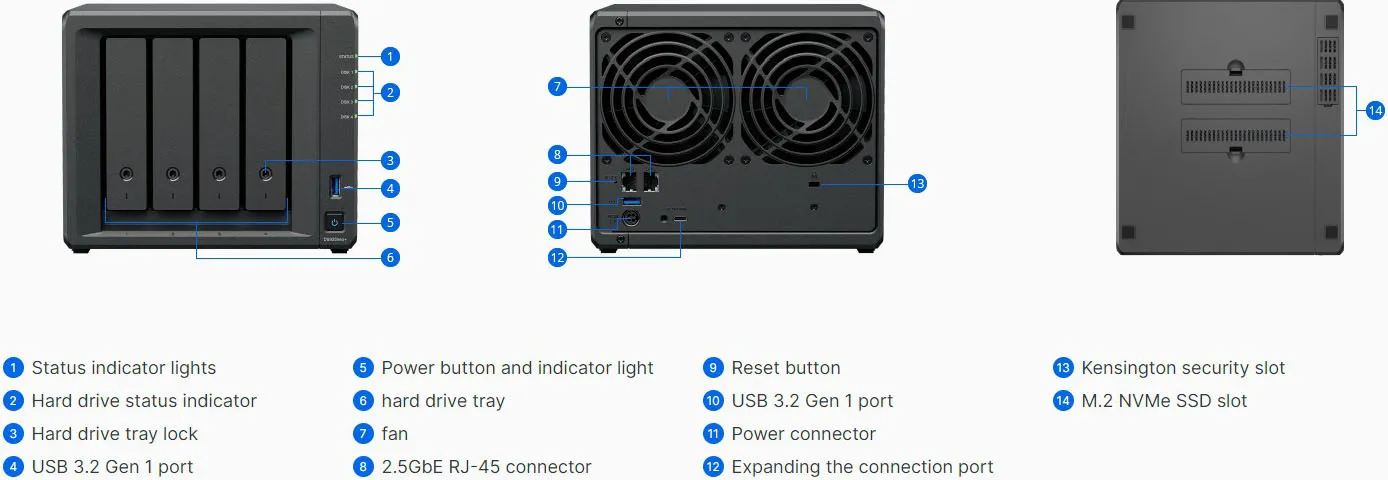

Chassis Details & Features
