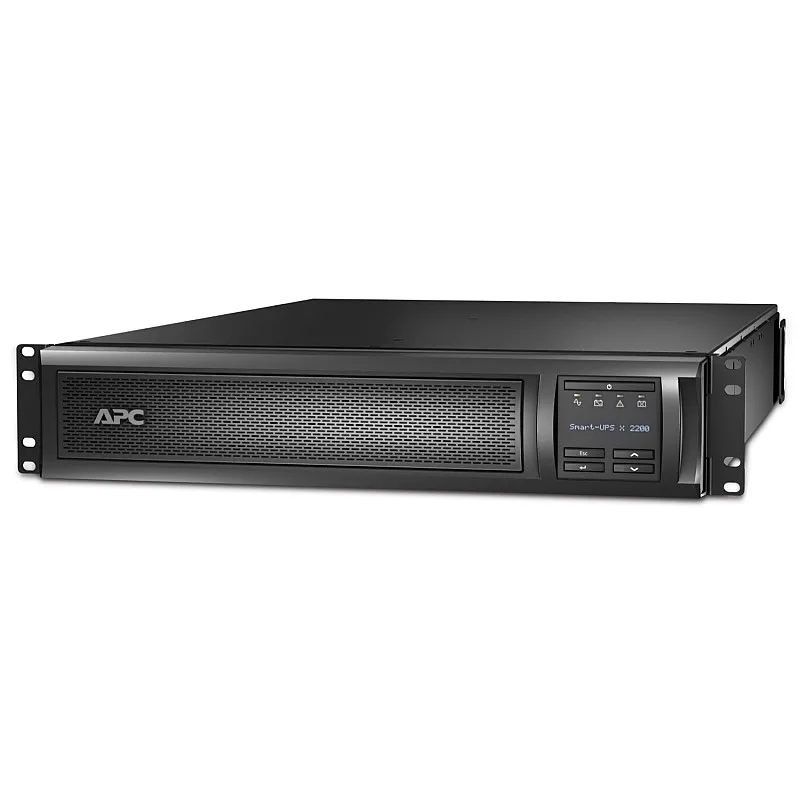

APC Smart-UPS X 2200VA 230V Rack/Tower Convertible (SMX2200RMHV2U) — Reliable Backup Power Tailored for Hong Kong Enterprises and Servers
Provide the most solid backbone for your core network equipment and server rooms! The APC Smart-UPS X Series (SMX2200RMHV2U) features a powerful output capacity of up to 1980W / 2.2kVA and provides 8x IEC 320 C13 and 1x C19 output receptacles. During power instability or sudden outages, it ensures continuous system operation with a pure sine wave output and a rapid 2-4 millisecond transfer time, preventing data loss and hardware damage. Its flexible 2U design supports both Rack and Tower installations.
This model specifically features a built-in SmartSlot and supports Extended Runtime. Whether you need to install a Network Management Card for remote monitoring or daisy-chain up to 10 external battery packs (SMX120RMBP2U) to prolong backup time during outages, it handles it with ease. It is the essential power guardian for medium-to-large enterprises, medical facilities, and financial data centers in Hong Kong.
Localized Application Scenarios (Perfect for Hong Kong)
Stable Output, Fearless of Voltage Dips
Automatic Voltage Regulation (AVR) technology supports an ultra-wide 140-280V input range, correcting high and low voltages without using battery power, effectively extending battery life.
Limitless Expansion, Ultra-Long Backup Time
Supports plug-and-play for up to 10 external battery packs (SMX120RMBP2U), significantly extending system runtime to meet the strict demands of prolonged power outages.
Enterprise-Grade 2200VA Flexible Deployment
Up to 1980W actual load capacity. The 2U form factor can easily convert between Rack and Tower configurations, perfectly adapting to Hong Kong's space-constrained offices or server rooms.
Intuitive LCD & SmartSlot Expansion
Equipped with a clear, multifunctional LCD display for real-time status monitoring; also features a reserved SmartSlot for adding a Network Management Card for advanced environmental monitoring and management.
Detailed Hardware Specifications
| Output Specifications | |
|---|---|
| Output Power Capacity | 1980 Watts / 2.2 kVA |
| Nominal Output Voltage & Frequency | 230V (Configurable for 208V/220V/240V) | 50/60Hz +/- 3 Hz |
| Topology & Waveform | Line Interactive | Pure Sine wave |

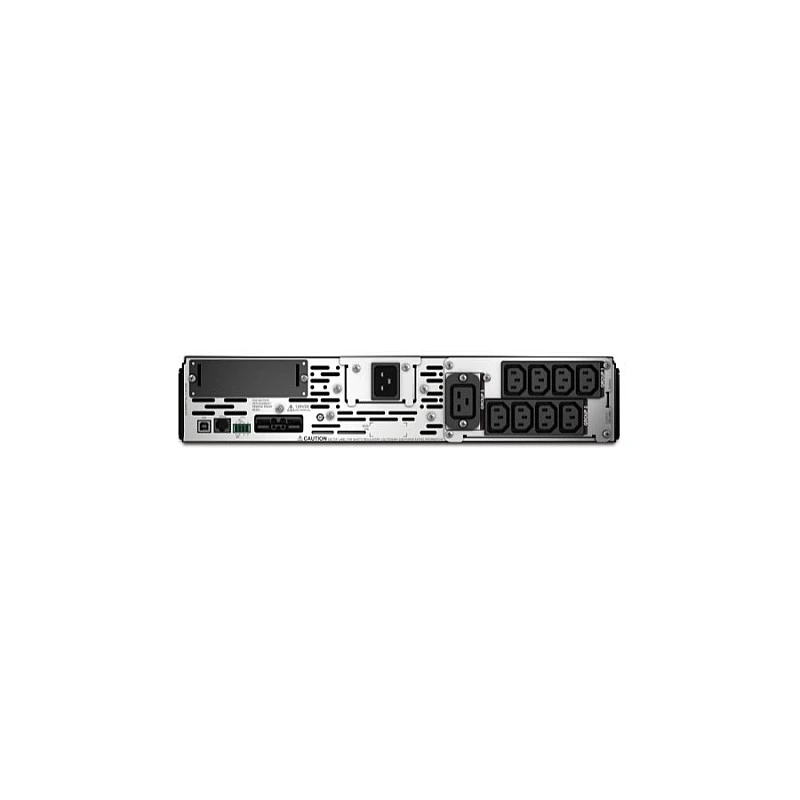

| Output Connections | (8) IEC 320 C13, (1) IEC 320 C19, (2) IEC Jumpers |
| Transfer Time | 2-4 ms typical (10 ms maximum) |
| Input Specifications | |
| Nominal Input Voltage | 208V, 230V |
| Input Voltage Range (Mains Operation) | 140 - 280 V (Adjustable) |
| Input Connections & Frequency | IEC-320 C20, Schuko, BS1363A | 50/60 Hz +/- 3 Hz (Auto-sensing) |
| Battery & Communications | |
| Battery Type & Life | Maintenance-free sealed Lead-Acid battery (leakproof) | Expected life 3 - 5 years (Supports up to 10 external battery packs) |
| Typical Recharge Time | Approx. 3 hours |
| Interface Port(s) | SmartSlot (1 Expansion Slot), USB (Type-B), Serial (RJ45), EPO |
| Control Panel & Alarms | Multifunction LCD status and control console | Audible alarms for battery operation/low battery |
| Physical & Environmental | |
| Physical Dimensions (HxWxD) | 8.5 cm x 43.2 cm x 66.7 cm (2U Rack Height) |
| Net Weight | 37.32 KG |
| Operating Environment & Audible Noise | 0 - 40 °C | 55 dBA at 1 meter from surface |
| International Safety Approvals | CE, CSA, EAC, EN/IEC 62040-1/2, UL 1778, VDE, etc. |
| Hong Kong Local Warranty | 3-year original warranty (parts included), 2 years for battery |
Load Runtime Reference Table (Runtime)
| Load | 500W | 1000W (Half) | 1500W | 1980W (Max) |
|---|---|---|---|---|
| Estimated Time* | Approx. 54 mins | Approx. 24 mins | Approx. 14 mins | Approx. 9 mins 45 secs |
