- Stock: Pre-Order remaining
- Brand: APC
- Model: SMX2200HV
- UPC: 731304292609
Add-on items
| Image | Product | Price | Quantity | Action |
|
APC UPS Replacement Battery Cartridge, APCRBC143 |
HK$4120 |
- + |
Notify Me! |
|
APC Smart-UPS External Battery, SMX48RMBP2U |
HK$4490 |
- + |
Add To Cart |
|
APC Smart-UPS External Battery, SMX120BP |
HK$5680 HK$7737 |
- + |
Notify Me! |
|
IEC C13 Socket to IEC C14 Plug Power Cord, C13-C14, 2Meter |
HK$98 |
- + |
Notify Me! |

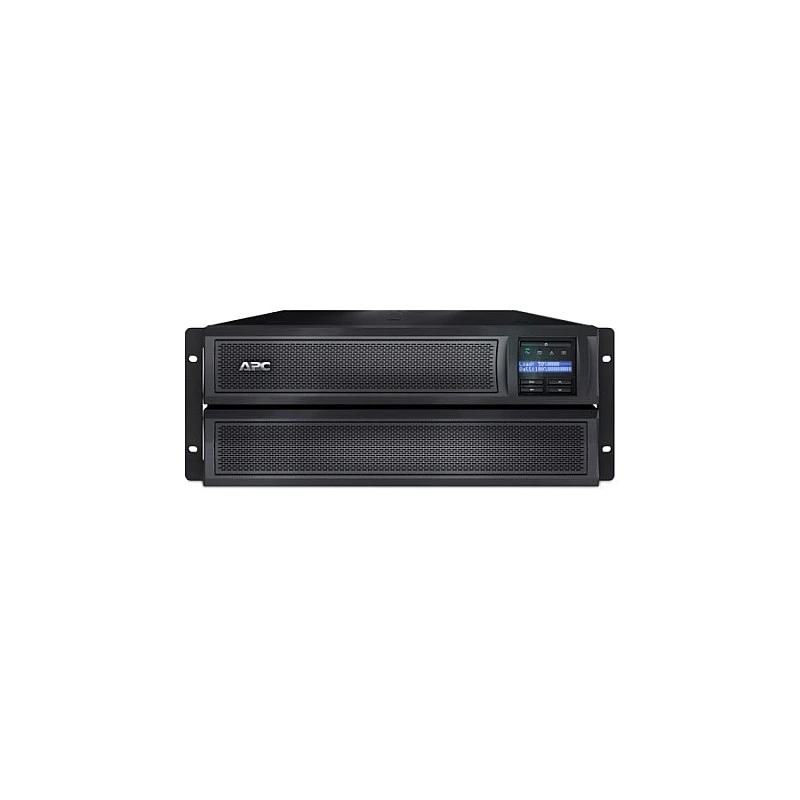

APC Smart-UPS X 2200VA Rack/Tower Convertible 4U (SMX2200HV) — Flexible and Scalable Backup Power Designed for Hong Kong Enterprises and Server Rooms
Provide the strongest backbone for your core network equipment and server rooms! The APC Smart-UPS X Series (SMX2200HV) features a powerful output capacity of 1980W / 2.2kVA and offers 8x IEC 320 C13 and 2x IEC 320 C19 output receptacles. During unstable mains power or sudden outages, it ensures continuous system operation with a pure sine wave and an ultra-fast transfer time of 2-4 milliseconds, preventing data loss and hardware damage.
This model supports a Rack/Tower convertible and short depth design, perfectly adapting to various spatial configurations. It also features Extended Runtime capability, allowing the connection of multiple external battery packs, and includes a built-in SmartSlot. It is an essential power protector for local medium-to-large enterprises and data centers.
Localized Application Scenarios (Perfect for Hong Kong)
Flexible Deployment, Rack/Tower Convertible
The Rack/Tower Convertible 4U short depth design provides extra cable management space, flexibly adapting to the space-constrained server rooms and rack environments in Hong Kong.
SmartSlot Integration
The built-in SmartSlot expansion slot supports the installation of a Network Management Card (NMC), allowing IT administrators to remotely monitor and execute safe system shutdowns at any time.
Infinite Expansion, Extended Runtime
Features Extended Runtime capability, allowing daisy-chaining of up to 10 external battery packs (SMX120BP) to flexibly extend the runtime of mission-critical equipment.
Enterprise-Grade 2200VA Capacity
Up to 1980W actual load capacity, equipped with high-current C19 output ports, robust enough to stably support core switches and servers in high-density racks.
Detailed Hardware Specifications
| Output Specifications | |
|---|---|
| Output Power Capacity | 1980 Watts / 2.2 kVA |
| Nominal Output Voltage & Frequency | 208V, 230V | 50/60Hz +/- 3 Hz (Sync to mains) |
| Topology & Waveform Type | Line Interactive | Pure Sine wave |
| Output Connections | (8) IEC 320 C13, (2) IEC 320 C19, (2) IEC Jumpers |
| Transfer Time | 2 - 4 ms typical (10 ms maximum) |
| Input Specifications | |
| Nominal Input Voltage | 208V, 230V |
| Input Voltage Range (for main operations) | 140 - 280 V |
| Input Connections & Frequency | IEC-320 C20, Schuko CEE 7 / EU1-16P, BS1363A | 50/60 Hz +/- 3 Hz |
| Battery & Communications | |
| Battery Type & Expected Life | Maintenance-free sealed Lead-Acid battery (Expandable) | Expected Life 3 - 5 years |
| Typical Recharge Time | Approx. 3 hours |
| Interface Port(s) | SmartSlot, USB, Serial (RJ45), EPO |
| Control Panel & Audible Alarm | Multi-function LCD status and control console | Alarm when on battery / distinctive low battery alarm |
| Physical & Environmental | |
| Physical Dimensions (H x W x D) | 43.2 cm x 17.8 cm x 48.3 cm (Rack Height: 4U) |
| Net Weight | 38.56 KG |
| Operating Environment & Audible Noise | 0 - 40 °C | 55.0 dBA at 1 meter from surface of unit |
| Approvals | CE, CSA, EN/IEC 62040-1/2, FCC Part 15, UL 1778, VDE, etc. |
| Hong Kong Authorized Warranty | 3-year warranty for unit, 2-year for battery, including replacement parts |
Internal Battery Load Runtime Reference
| Load | 500W | 1000W | 1500W | 1980W (Max) |
|---|---|---|---|---|
| Estimated Time | Approx. 42 mins | Approx. 17 mins | Approx. 10 mins | Approx. 5 mins 30 secs |
Package Contents & Inventory
