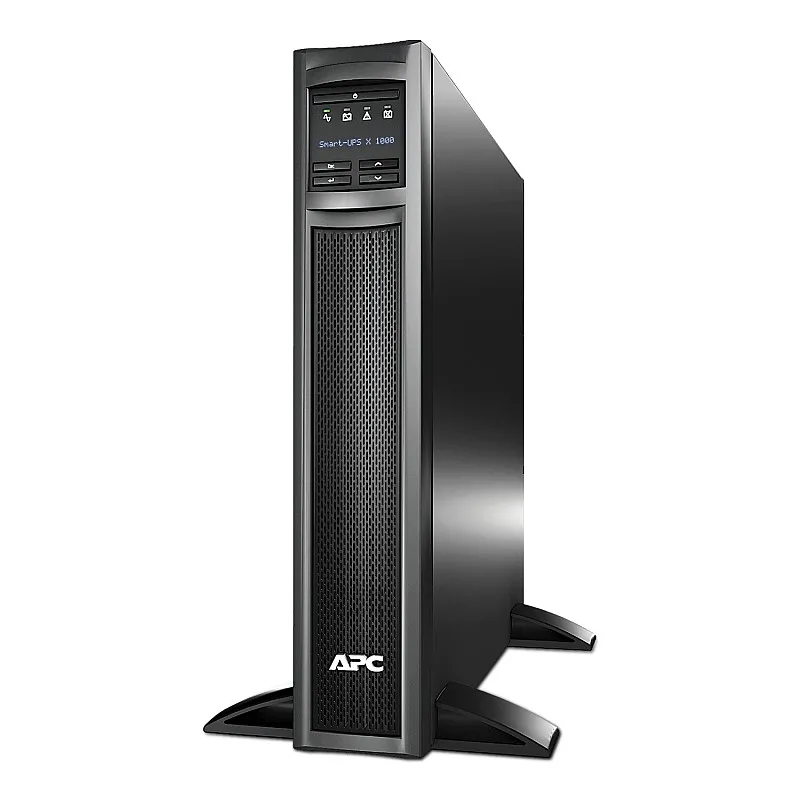

APC Smart-UPS X 1000VA Rack/Tower 230V (SMX1000I) — Reliable Backup Power Tailored for Hong Kong Enterprises and Servers
Provide the most solid backing for your core network equipment and servers! The APC Smart-UPS X Series (SMX1000I) features a powerful output capacity of 800W / 1000VA and provides 8 IEC 320 C13 output receptacles. This model utilizes a flexible 2U Rack/Tower convertible design. In the event of unstable commercial power or sudden outages, it ensures continuous system operation with a pure sine wave, preventing data loss and hardware damage.
This model is specifically built with a SmartSlot, supporting the expansion of advanced network management cards. It also features the powerful advantage of Extended runtime, allowing the addition of up to 5 external battery packs, making it the essential power guardian for extending backup time in local SME offices and server rooms.
Localized Application Scenarios (Perfect for Hong Kong)
Stable Output, Fearless of Voltage Sags
Automatic Voltage Regulation (AVR) technology supports an ultra-wide input range of 160-286V, effectively stabilizing voltage fluctuations common in Hong Kong industrial buildings or older commercial buildings, protecting and extending equipment life.
Flexible Expansion, Ultimate Endurance
Supports Extended runtime capabilities. Users can daisy-chain up to 5 additional battery packs (SMX48RMBP2U) according to business needs, providing ultra-long backup time.
2U Rack and Tower Convertible Design
Features an 800W actual load capacity. Provides a dual-purpose Rack/Tower design, perfectly adapting to rack installation or standalone placement in an office corner.
Intuitive LCD Status Display
The front of the unit is equipped with a clear LCD multi-function display screen, showing real-time voltage, load capacity, and estimated remaining runtime, making on-site management clear at a glance.
Detailed Hardware Specifications
| Output Specifications | |
|---|---|
| Output Power Capacity | 800 Watts / 1.0 kVA (1000VA) |
| Nominal Output Voltage & Frequency | 230V (Configurable for 220V/240V) | 50/60Hz +/- 3 Hz |
| Topology & Waveform | Line Interactive | Pure Sine wave |
| Output Connections | (8) IEC 320 C13, (2) IEC Jumpers |
| Transfer Time | Typical 2-4 ms (Max 8 ms) |
| Input Specifications | |
| Nominal Input Voltage | 230V |
| Input Voltage Range (Mains Operation) | 160 - 286 V (Adjustable) |
| Input Connection & Frequency | IEC-320 C14 | 50/60 Hz +/- 3 Hz (Auto-sensing) |
| Battery & Communications | |
| Battery Type & Expansion | Maintenance-free sealed Lead-Acid battery (leakproof) | Expandable up to 5 external battery packs (SMX48RMBP2U) |
| Typical Recharge Time | Approx. 3 hours |
| Interface Port(s) | SmartSlot, USB, Serial (RJ45) |
| Control Panel & Alarms | Multi-function LCD status console | Alarm when on battery / distinctive low battery alarm |
| Physical & Environmental | |
| Physical Dimensions (HxWxD) | 8.9 cm x 43.2 cm x 49.0 cm (2U Rack Height) |
| Net Weight | 22.86 KG |
| Operating Environment & Audible Noise | 0 - 40 °C | 40.0 dBA at 1 meter from surface of unit |
| Regulatory Approvals | CE, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE |
| Hong Kong Warranty | 2-year warranty, includes parts replacement (labor not included) |
Load Runtime Reference Table (Runtime)
| Load | 200W | 400W | 600W | 800W (Max) |
|---|---|---|---|---|
| Estimated Runtime (Standalone) | Approx. 58 mins | Approx. 24 mins | Approx. 14 mins | Approx. 8 mins |
