- Stock: Available For Order remaining
- Brand: APC
- Model: SMX1500RMI2U
- UPC: 731304268598
Add-on items
| Image | Product | Price | Quantity | Action |
|

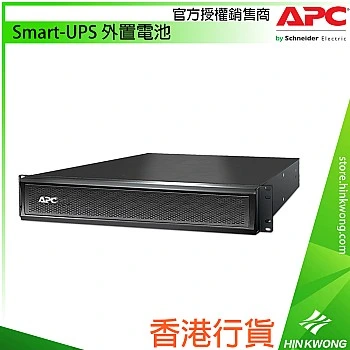

APC Smart-UPS External Battery, SMX48RMBP2U |
HK$4490 |
- + |
Add To Cart |
|
APC Smart-UPS External Battery, SMX120RMBP2U |
HK$6690 |
- + |
Notify Me! |
|
APC UPS Replacement Battery Cartridge, APCRBC115 |
HK$3070 |
- + |
Notify Me! |
|
IEC C13 to UK BS1363 3-Pin Power Cord, 1.8Meters |
HK$58 |
- + |
Add To Cart |
|
|
IEC C13 to UK BS1363 3-Pin Power Cord, 3Meters |
HK$98 |
- + |
Add To Cart |
|
IEC C13 Socket to IEC C14 Plug Power Cord, C13-C14, 2Meter |
HK$98 |
- + |
Notify Me! |
APC Smart-UPS X 1500VA Rack/Tower LCD 230V (SMX1500RMI2U) — Reliable Backup Power Tailored for Hong Kong Enterprises & Server Rooms
Provide the most solid backing for your core network equipment and servers! The APC Smart-UPS X Series (SMX1500RMI2U) features a powerful output capacity of 1200W / 1.5kVA and provides 8x IEC 320 C13 output outlets. Adopting a flexible 2U Rack/Tower convertible design, it ensures continuous system operation with a pure sine wave during power instability or sudden outages, preventing data loss and hardware damage.
This model is specially equipped with a SmartSlot expansion slot, supporting the addition of an NMC (Network Management Card) for advanced remote monitoring. It also features an Extended Runtime capability, allowing daisy-chaining of up to 5 external battery packs (SMX48RMBP2U). Whether for SME offices or large data center server rooms, it is your essential power guardian.
Localized Application Scenarios (Perfect for Hong Kong)
Stable Output, No Fear of Voltage Dips
Automatic Voltage Regulation (AVR) technology supports an ultra-wide 151-302V input range, effectively stabilizing voltage fluctuations common in Hong Kong industrial or older commercial buildings, extending equipment lifespan.
Flexible Expansion with SmartSlot
Built-in SmartSlot supports an optional Network Management Card (NMC), allowing IT administrators to easily monitor UPS operational status and integrate environmental sensing over the network.
1200W Load & Ultimate Expansion
High actual load capacity of up to 1200W and 8 independent output ports. It also supports daisy-chaining up to 5 external battery packs, significantly extending the backup runtime for systems and network equipment.
Intuitive LCD & Flexible 2U Design
The front panel features a clear multi-function LCD displaying real-time voltage and load. It supports 2U rack mounting or tower placement (rails included), perfectly adapting to different server room environments.
Detailed Hardware Specifications
| Output Specifications | |
|---|---|
| Output Power Capacity | 1200 Watts / 1.5 kVA |
| Nominal Output Voltage & Frequency | 230V | 50/60Hz +/- 3 Hz (Sync to mains) |
| Topology & Waveform | Line Interactive | Sine wave |
| Output Connections | (8) IEC 320 C13, (2) IEC Jumpers |
| Transfer Time | Typical 2-6 ms (Max 10 ms) |
| Input Specifications | |
| Nominal Input Voltage | 230V |
| Input Voltage Range (Mains operation) | 160 - 286 V (Adjustable to 151 - 302 V) |
| Input Connection & Frequency | IEC-320 C14 | 50/60 Hz +/- 3 Hz (Auto-sensing) |
| Battery & Communications | |
| Battery Type & Lifespan | Maintenance-free sealed Lead-Acid battery (leakproof) | Expected lifespan 3 - 5 years |
| Extended Runtime | Supports up to 5 external battery packs (SMX48RMBP2U) |
| Typical Recharge Time | Approx. 3 hours |
| Interface Port(s) | SmartSlot, USB, Serial, EPO (Emergency Power Off) |
| Control Panel & Audible Alarms | Multi-function LCD status and control console | Audible alarms for low battery and overload |
| Physical & Environmental Specifications | |
| Physical Dimensions (H x W x D) | 8.9 cm (2U) x 43.2 cm x 49.0 cm |
| Net Weight | 24.82 KG |
| Operating Environment & Audible Noise | 0 - 45 °C | 40 dBA at 1 meter from unit |
| Regulatory Approvals | CE, CSA, EAC, RCM, UK PSTI |
| Hong Kong Authorized Warranty | 3-year UPS, 2-year battery, parts exchange (labor not included) |
Runtime Estimate Reference
| Load | 300W | 600W | 900W | 1200W (Max) |
|---|---|---|---|---|
| Estimated Time | ~ 40 mins | ~ 15 mins | ~ 9 mins | 5 mins 45 secs |
Package Contents & Inventory
