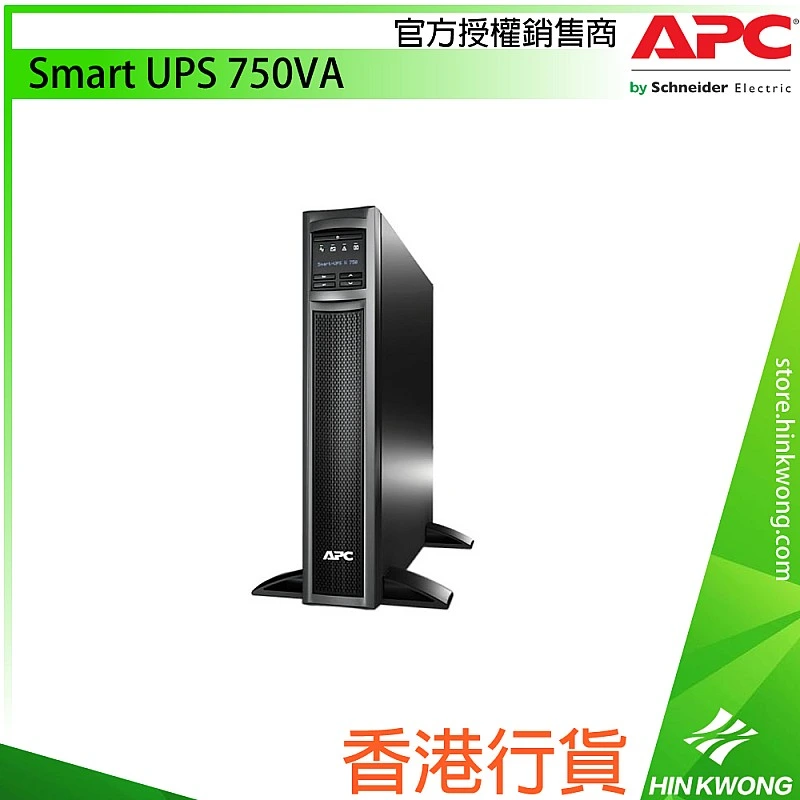

APC Smart-UPS X 750VA Rack/Tower Convertible 2U 230V (SMX750I) — Reliable Backup Power Built for Hong Kong Enterprises & Servers
Provide the most solid backing for your core network equipment and servers! The APC Smart-UPS X Series (SMX750I) features a 600W / 750VA output capacity and offers 8x IEC 320 C13 output receptacles. This model adopts a flexible 2U Rack/Tower Convertible design and supports external battery packs (Extended Runtime) to significantly prolong backup time. During unstable power or sudden outages, it ensures continuous system operation with a pure sine wave, preventing data loss and hardware damage.
Built-in with a SmartSlot, this model allows for an optional Network Management Card for advanced remote monitoring. Combined with its excellent Automatic Voltage Regulation (AVR) feature, it is an essential power guardian for local SME offices, server rooms, and edge computing environments.
Localized Application Scenarios (Perfect for Hong Kong)
Stable Output, Fear No Voltage Drops
Automatic Voltage Regulation (AVR) technology supports an ultra-wide 160-286V input range, effectively stabilizing voltage fluctuations common in Hong Kong's industrial or older commercial buildings, extending equipment lifespan.
2U Rack/Tower Convertible & SmartSlot
Flexibly adapts to different spaces; it can be rack-mounted (2U) or placed upright as a tower. Built-in SmartSlot allows for an easy upgrade with an NMC for comprehensive remote monitoring.
Supports External Batteries for Extended Runtime
The unit provides up to 600W load capacity and allows connection of up to 5 external battery packs (SMX48RMBP2U), meeting the ultra-long backup time requirements for critical equipment.
Intuitive LCD Status Display
The front panel features a clear, multi-function LCD that displays real-time voltage, load capacity, and estimated remaining runtime, making on-site management clear at a glance.
Detailed Hardware Specifications
| Output Specifications | |
|---|---|
| Output Power Capacity | 600 Watts / 750 VA |
| Nominal Output Voltage & Frequency | 230V (Configurable to 220V or 240V) | 50/60Hz +/- 3 Hz |
| Topology & Waveform | Line Interactive | Pure Sine wave |
| Output Connections | (8) IEC 320 C13, (2) IEC Jumpers |
| Transfer Time | 6 ms typical (10 ms maximum) |
| Input Specifications | |
| Nominal Input Voltage | 230V |
| Input Voltage Range (for main operations) | 160 - 286 V (Adjustable to 151 - 302 V) |
| Input Connection & Frequency | IEC-320 C14 | 50/60 Hz +/- 3 Hz (Auto-sensing) |
| Battery & Communications | |
| Battery Type & Life | Maintenance-free sealed Lead-Acid battery (leakproof) | Expected life 3 - 5 years |
| Extended Runtime | Supports up to 5 external battery packs (Model: SMX48RMBP2U) |
| Communications & Management Interface | SmartSlot (Optional Network Card), USB, Serial (RJ45), EPO |
| Control Panel & Alarms | Multi-function LCD | Audible alarms for battery operation/low battery |
| Physical & Environment | |
| Physical Dimensions (HxWxD) | 8.9 cm (2U) x 43.2 cm x 49.0 cm |
| Net Weight | 22.05 KG |
| Operating Environment & Noise | 0 - 40 °C | 40 dBA at 1 meter from unit |
| International Safety Certifications | CE, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE |
| Hong Kong Warranty | 3-year UPS / 2-year battery manufacturer warranty, parts included |
Load Runtime Reference Table *Standalone unit without external battery
| Load | 150W | 300W | 450W | 600W (Max) |
|---|---|---|---|---|
| Estimated Time | ~ 47 mins | ~ 16 mins | ~ 8 mins | ~ 5 mins 30 secs |
