- Stock: Available For Order remaining
- Brand: Synology
- Model: RS6426xs+
Synology RackStation RS6426xs+ — 3U 24-Bay Enterprise High-Performance Storage Server
Built for the demanding environments of modern enterprises! The Synology RS6426xs+ is a high-density 3U 24-bay storage server. Powered by a robust 8-core AMD EPYC processor and 32 GB of DDR4 ECC memory, it provides medium to large enterprises with exceptional virtualization storage performance and data protection. It also features a unique OS isolation architecture (dedicated M.2 system drives), significantly enhancing the availability of core systems.
Delivering outstanding transmission performance with over 10,000 MB/s sequential read and 6,200 MB/s sequential write speeds. Natively supporting 24 x 3.5" or 2.5" SATA drive bays, it can connect to expansion units to reach up to 64 bays (total capacity up to 1.4 PB). The RS6426xs+ strikes the perfect balance between high-capacity storage and high-speed database applications.
Built for Enterprises
AMD EPYC Enterprise Performance
Equipped with an AMD EPYC 7232P 8-core processor and 32 GB DDR4 ECC memory (expandable up to 1024 GB) to stably drive large-scale virtualization and highly intensive I/O tasks.
High-Density 24-Bay Expansion
Provides a high-density storage space with 24 standard drive bays in a single unit. Through dedicated expansion ports, connect expansion units to scale up to 64 bays, accommodating PB-level data growth.
Top-Tier 10GbE & PCIe 4.0

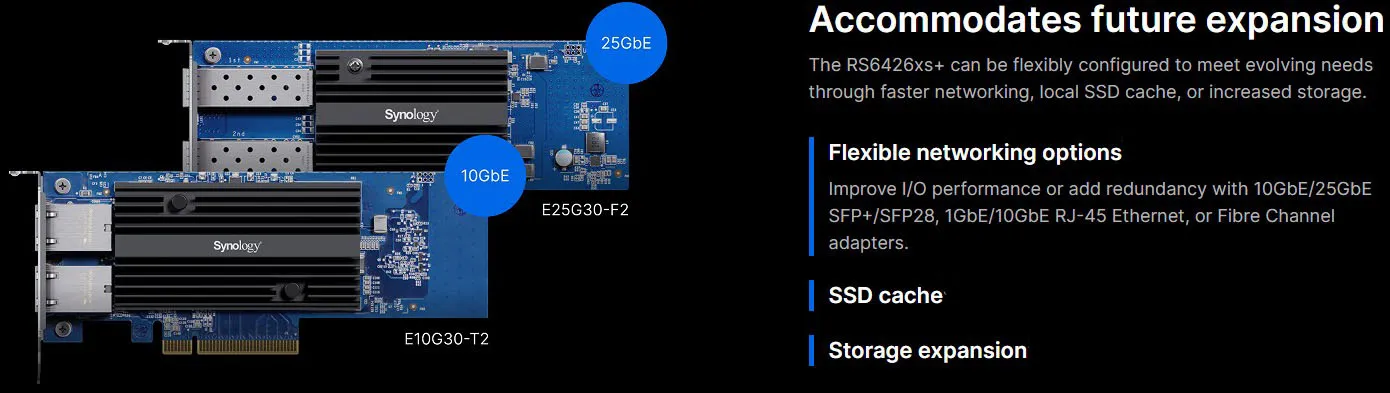

Features 2 built-in 10GbE network ports, 1 OOB management port, and 2 PCIe Gen4 slots, allowing for flexible expansion with 10/25GbE network cards or Fibre Channel to enhance access bandwidth.
Mission-Critical Reliability
Utilizes dual M.2 system drives (OS isolation design), equipped with 1200W dual redundant power supplies, and supports Synology High Availability to minimize downtime risks.
Hardware Specifications
| Device Type | 3U 24-Bay Rackmount Enterprise Storage Server |
|---|---|
| Processor (CPU) | AMD EPYC 7232P * 8-Core, 16-Thread, 3.1 GHz base clock, max boost clock up to 3.2 GHz |
| Memory |
32 GB DDR4 ECC RDIMM (Pre-installed 32 GB x 1) * 16 memory slots in total, expandable up to 1024 GB (64 GB x 16) |
| Drive Bays |
24 x 3.5" or 2.5" SATA HDD/SSD * Hot-swappable support, expandable up to 64 bays (with optional RX1222sas/RXD1219sas units) |
| System Drive |
2 x M.2 NVMe SSDs (Pre-installed) * OS isolation architecture separates system operations from the data pool |
| Network & External Ports |
2 x 10GbE RJ-45 LAN Ports 1 x Out-of-Band (OOB) Management LAN Port 2 x USB 3.2 Gen 1 Ports 2 x Mini-SAS HD Expansion Ports |
| PCIe Expansion |
2 x PCIe Gen4 x16 slots (x16 link) * Supports 10/25GbE network interface cards, Fibre Channel, or M.2 NVMe adapter cards |
| RAID Support | Synology RAID F1, Basic, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10 |
| Form Factor | 3U Rackmount * 132.3 mm x 482 mm x 692 mm |
| Weight | 21.65 kg |
| System Fan | 4 x (80 mm x 80 mm) fans (Supports Full-Speed/Cool/Quiet modes and easy replacement) |
| Power Supply | 1200W Redundant Power Supply (100-240 VAC) |
| Warranty | 5-Year Limited Hardware Warranty |

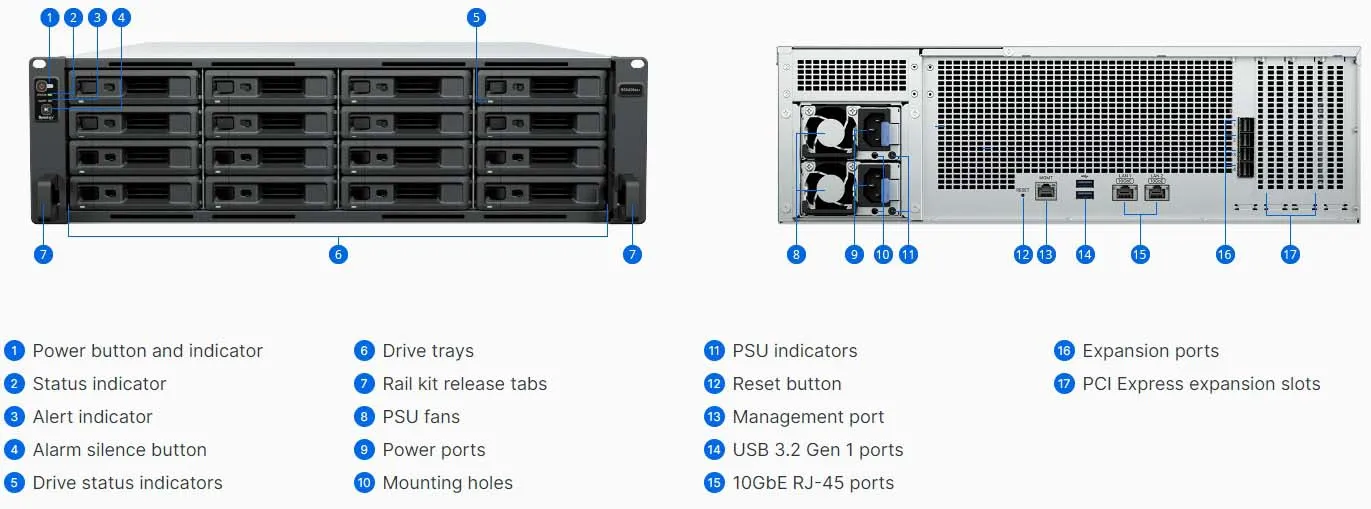

Chassis Details & Features
