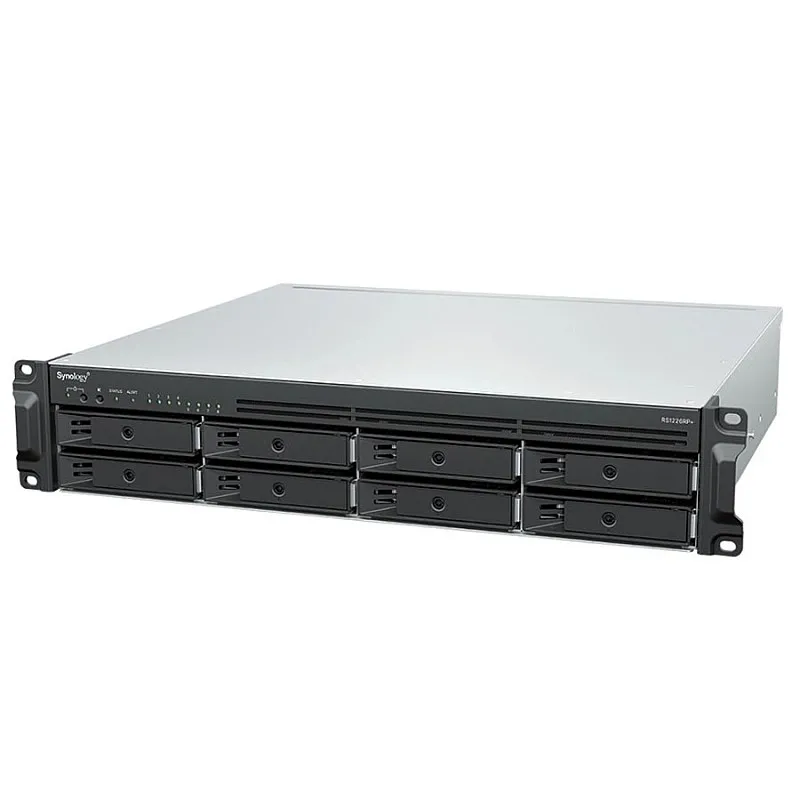

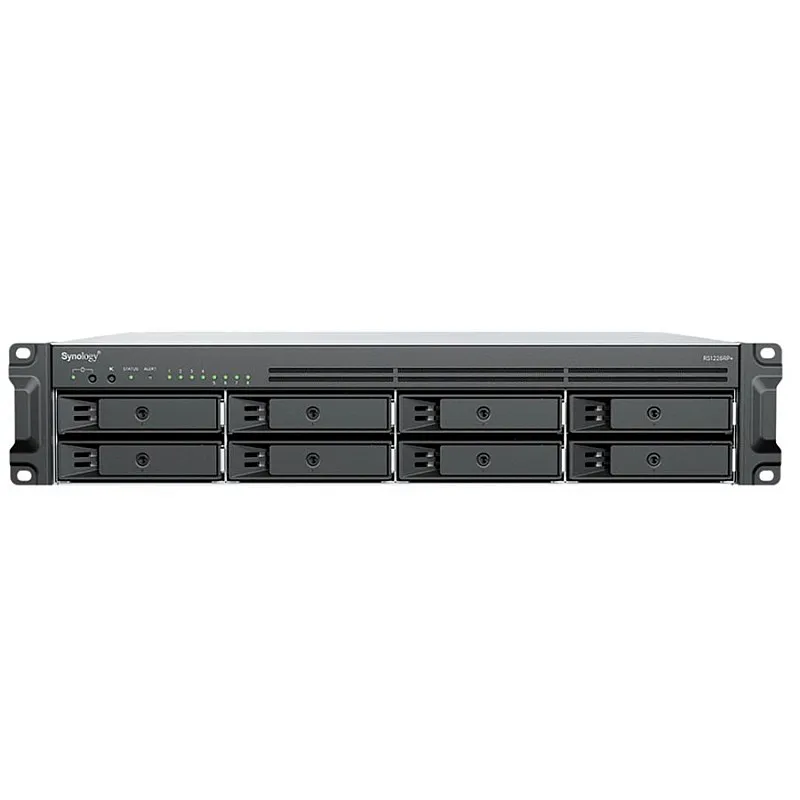

Synology RackStation RS1226RP+ — 2U 8-Bay Enterprise High-Performance Storage Server
The perfect combination of enterprise-grade performance and deployment flexibility! Synology RS1226RP+ is a 2U 8-bay short-depth rackmount storage server designed specifically for space-constrained environments. Powered by a robust AMD Ryzen processor and ECC memory, it provides small and medium-sized businesses with a high-performance, reliable, and cost-effective solution for file management, data backup, and smart surveillance.
Delivering exceptional transfer performance, it natively features eight 3.5-inch or 2.5-inch SATA drive bays, and can be easily expanded to a total of 12 bays by connecting one RX418 expansion unit, fully meeting the growing data storage needs of your business.
Built for Enterprises
Short-depth Design
With a chassis depth of only about 30 cm, it is perfectly suited for 2-post racks or space-constrained wall-mount cabinets, offering excellent deployment flexibility.
2U 8-Bay Flexible Expansion
The compact 2U chassis provides 8 standard drive bays. By connecting an expansion unit (RX418) via the expansion port, it can flexibly expand to a total of 12 drive bays.
High-Speed Networking & PCIe Expansion
Built-in network ports support Link Aggregation, and it features 1 PCIe slot for optionally adding 10/25GbE network interface cards or M.2 NVMe SSD cache adapter cards.
High Availability for Mission-Critical Tasks
Supports automatic network failover and can form an active-passive dual-server cluster via Synology High Availability, maximizing service uptime.
Product Specifications
| 1. Hardware Specifications | |
|---|---|
| Device Type | 2U 8-Bay Rackmount Enterprise Storage Server (Short-depth design) |
| Processor (CPU) |
AMD Ryzen Processor (1 Unit) * 64-bit architecture, Hardware Encryption Engine support (AES-NI) |
| System Memory |
8 GB DDR4 ECC (or equivalent) * Expandable up to 32 GB (16 GB x 2) |
| Drive Bays & Expansion |
8 x 3.5" SATA HDD or 2.5" SATA SSD * Supports Hot Swappable Drives * Expandable up to 12 drive bays with 1 Synology RX418 expansion unit |
| External Ports |
4 x RJ-45 1GbE LAN ports (supports Link Aggregation / Failover) 2 x USB 3.2 Gen 1 ports 1 x eSATA expansion port |
| PCIe Expansion Slot |
1 x PCIe Gen3 x8 slot (x4 link) * Supports 10/25GbE network interface cards or M.2 NVMe SSD adapter cards |
| Dimensions & Rack Support |
2U Rackmount (H 88 mm x W 482 mm x D approx. 306.6 mm) * Short-depth design, supports 2-post or 4-post 19-inch rack installation |
| System Fan & Cooling |
2 x (80 mm x 80 mm) system fans * Fan speed modes: Full-Speed, Cool, Quiet |
| Environment & Certification |
Operating Temperature: 0°C to 35°C (32°F to 95°F) * Certifications: FCC, CE, BSMI, VCCI, RCM, UKCA, EAC, CCC, KC, UL | RoHS Compliant |
| Official Optional Accessories |
• Memory: D4ES02-8G / D4ES02-16G or equivalent • Expansion Unit: RX418 • Compatible Drives: Enterprise 3.5" SATA HDD (HAT5300 series), Plus series 3.5" SATA HDD (HAT3300 series) • M.2 SSD Adapter Card: M2D20 or E10M20-T1 • Network Interface Card: 10GbE / 25GbE NIC |
| Manufacturer Warranty |
3-Year Limited Hardware Warranty * Extendable to 5 years with optional Extended Warranty Plus |
| 2. DSM Operating System & Software Specifications | |
| Storage Management |
Maximum Single Volume Size: 108 TB * Supports SSD Read/Write Cache, SSD TRIM, Btrfs File Self-Healing |
| RAID Support | Synology Hybrid RAID (SHR), Basic, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10 |
| Supported File Systems |
Internal Drives: Btrfs, ext4 External Drives: Btrfs, ext4, ext3, FAT32, NTFS, HFS+, exFAT |
| Backup, Hybrid Cloud & High Availability |
• Synology High Availability: Supports Active-Passive high-availability clusters • Hyper Backup: Supports folder, package, and entire system backup • Active Backup Suite: License-free backup for Windows/Mac, VMware/Hyper-V, and Microsoft 365/Google Workspace |
| 3. Add-on Package Specifications | |
| SAN Manager (Block Storage) | iSCSI Target and LUN configuration supports advanced LUN Clone / Snapshots |
| Snapshot Replication | Supports near-instantaneous snapshots for shared folders and LUNs to protect against ransomware threats |
| Surveillance Station | Default Free Camera Licenses: 2 | Supports dozens of high-definition IP cameras (H.264 / H.265) |
| Virtual Machine Manager | Supports running Windows, Linux, and Virtual DSM (includes 1 free license) |

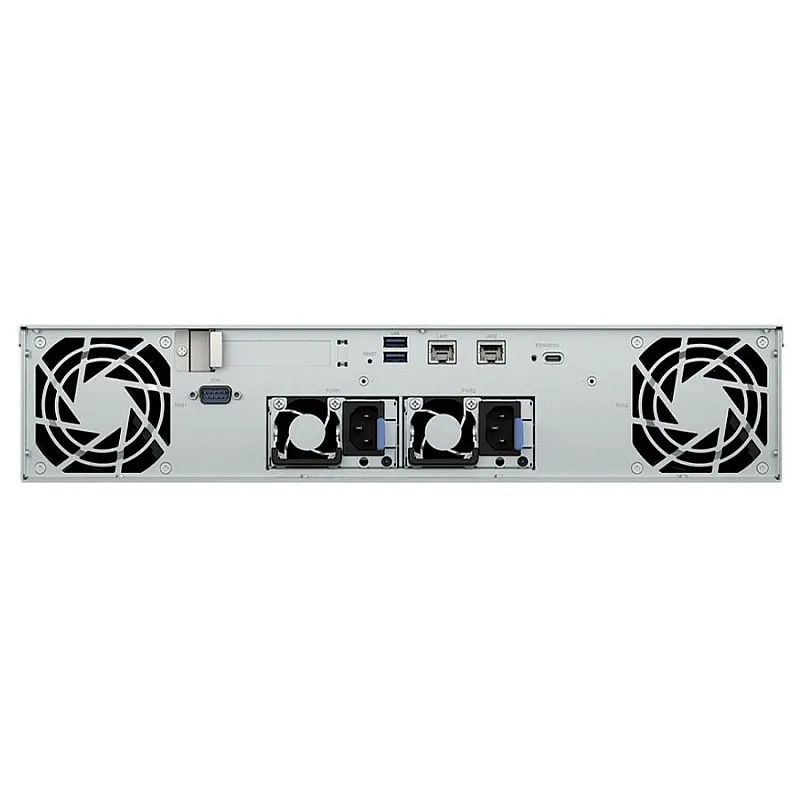

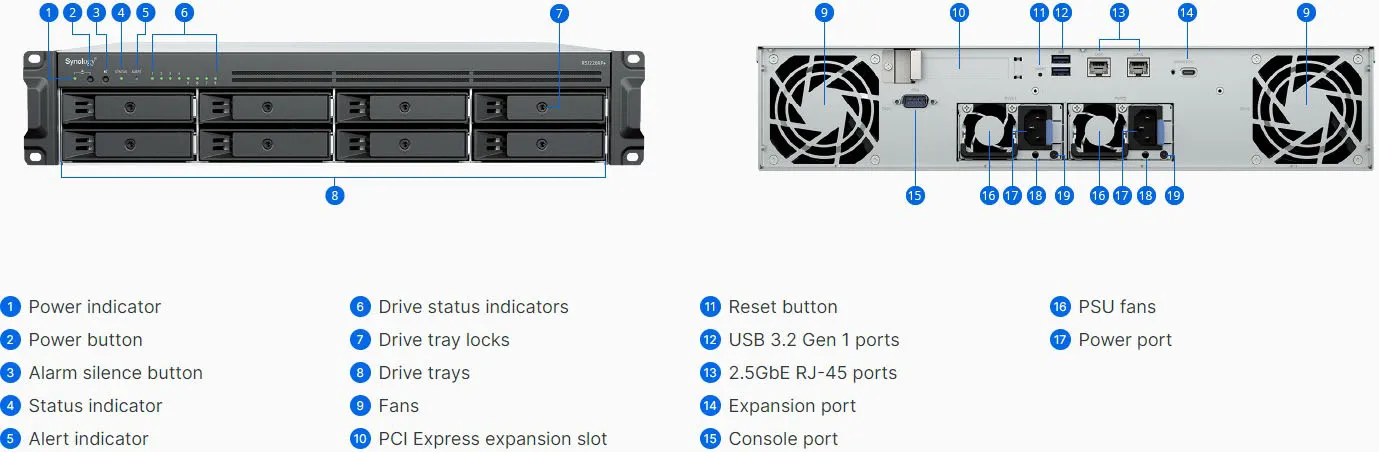

Chassis Details & Features
