- Stock: Available For Order remaining
- Brand: Synology
- Model: FS6420
Synology FlashStation FS6420 — 2U 24-Bay All-Flash Storage Server
Experience ultimate storage performance! The Synology FlashStation FS6420 is a high-performance 2U all-flash storage server specifically designed for latency-sensitive and I/O-intensive workloads. Powered by a 16-core AMD EPYC processor, it delivers unparalleled access speeds for your enterprise.

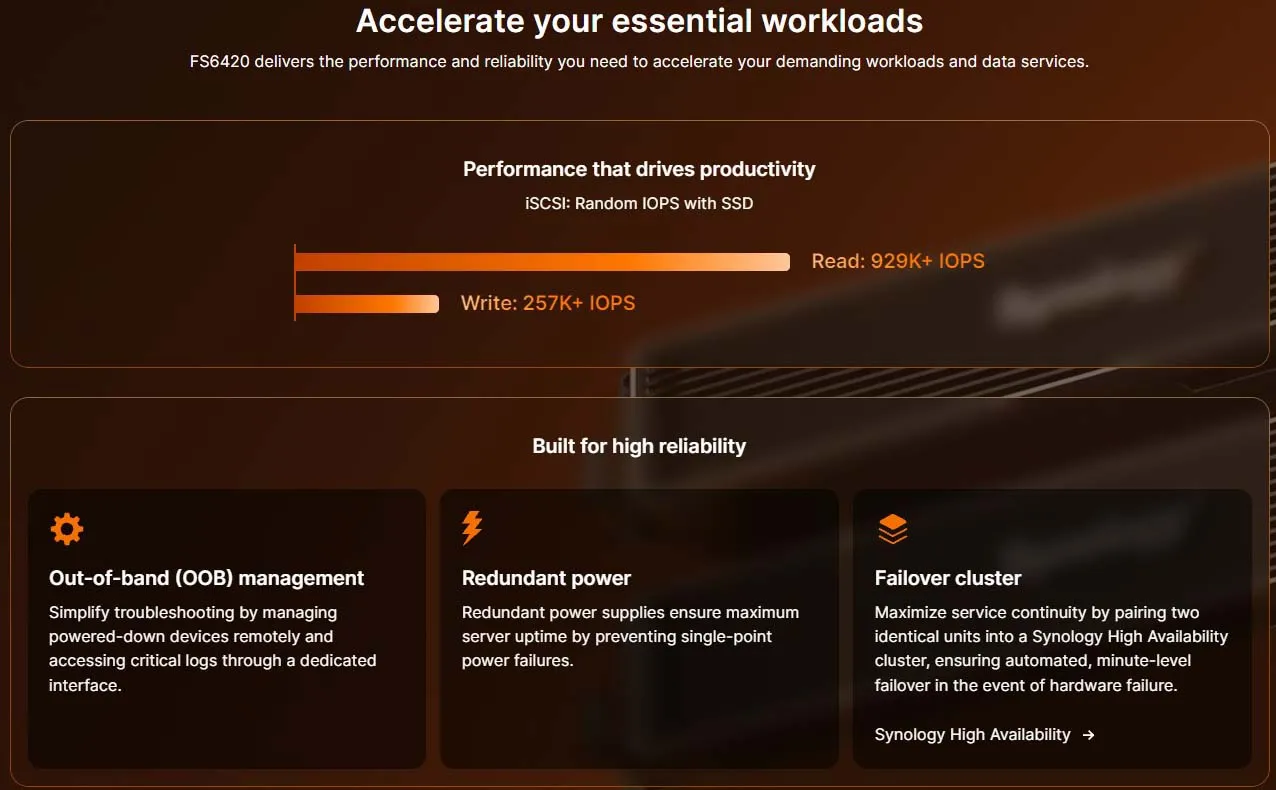

Delivering over 257,000 4K random write IOPS. Whether for massive virtual machine clusters, database workloads, or 4K/8K video post-production, the FS6420—equipped with 24 x 2.5" SATA SSD bays and supporting 10/25GbE network expansion—serves as the most solid data core for any enterprise.
Perfect for Enterprise
Pure Flash Ultimate Performance
Equipped with 24 x 2.5" SATA SSD drive bays, bringing an ultra-low latency access experience to meet the demands of high-speed storage and virtualization deployments.
16-Core EPYC Computing Power
Powered by the AMD EPYC 7303 processor and 64 GB DDR4 ECC memory (expandable up to 1 TB), easily handling heavy workloads.
Flexible High-Speed Networking
Features dual built-in 10GbE RJ-45 ports and two PCIe 4.0 x16 expansion slots, supporting 10/25GbE network cards or Fibre Channel host bus adapters.
Enterprise-Grade Reliability
Supports Synology High Availability cluster backup, and comes with dual redundant 550W power supplies and an independent Out-of-Band (OOB) management port.
Hardware Specifications
| Device Type | 2U 24-Bay All-Flash NAS |
|---|---|
| CPU | AMD EPYC 7303 (16-Core, 2.4 GHz, up to 3.4 GHz) |
| Memory |
64 GB DDR4 ECC RDIMM (16 slots, expandable up to 1 TB) |
| Drive Bays | 24 x 2.5" SATA III SSD (Hot-Swappable) |
| Networking Interface |
2 x 10GbE RJ-45 1 x Out-of-Band (OOB) Management Port |
| PCIe Expansion | 2 x PCIe 4.0 x16 slots (supports 10/25GbE network cards or Fibre Channel cards) |
| RAID Support | RAID F1, Basic, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10 |
| Form Factor | 2U Rackmount |
| Weight | 15.5 kg |
| Power Supply | Dual Redundant 550W PSUs (100-240 VAC) |
| Warranty | 5-Year Limited Hardware Warranty |

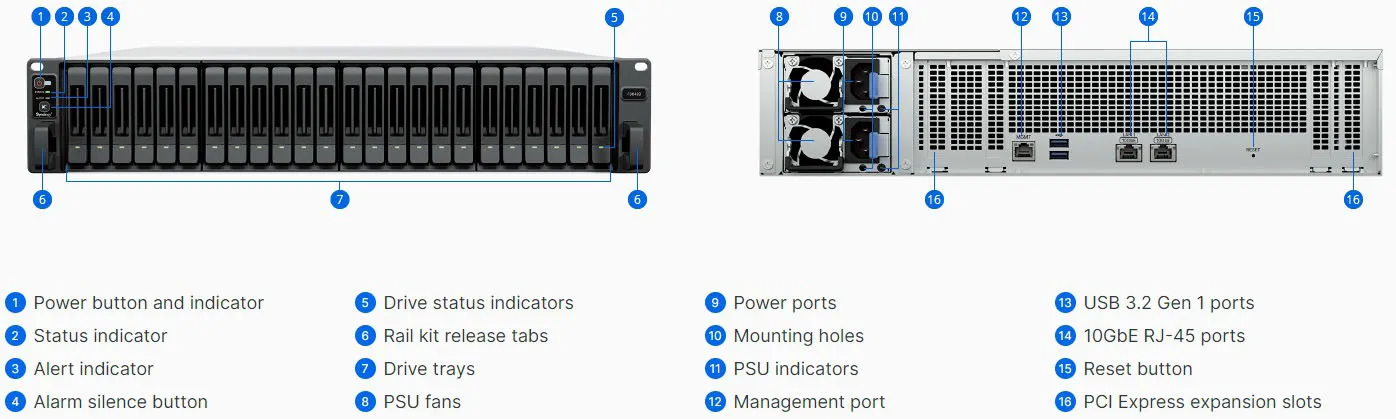

Chassis Details & Features
