- Stock: Available For Order remaining
- Brand: Synology
- Model: RS1226+
Synology RackStation RS1226+ — 2U 8-Bay Enterprise High-Performance Storage Server
The perfect combination of enterprise-grade performance and deployment flexibility! Synology RS1226RP+ is a 2U 8-bay rackmount storage server designed specifically for distributed environments. Powered by a robust AMD Ryzen processor, ECC memory, and a redundant power supply, it delivers a high-performance, reliable, and cost-effective solution for small and medium-sized businesses to handle file management, data backup, and smart surveillance workloads.
Delivering exceptional transfer performance, it natively features dual 2.5GbE ports, M.2 NVMe SSD cache slots, and eight 3.5-inch or 2.5-inch SATA drive bays. It can be easily expanded up to 12 drive bays by connecting one RX426 expansion unit, fully meeting growing business storage demands.
Built for Enterprises
Enterprise Reliability & Redundancy
Equipped with a 550W redundant power supply to ensure seamless operations and maximum service availability even if one power unit fails.
2U 8-Bay Flexible Expansion
The compact 2U chassis provides 8 standard drive bays, easily scalable up to 12 drive bays by connecting an RX426 expansion unit via the dedicated port.
High-Speed Networking & M.2 Caching
Built-in dual 2.5GbE ports, dual M.2 NVMe SSD slots, and a PCIe slot supporting optional 10/25GbE network interface cards for boosted I/O performance.
High Availability for Mission-Critical Tasks
Supports automatic network failover and can form an active-passive high-availability cluster via Synology High Availability to minimize downtime.
Product Specifications
| 1. Hardware Specifications | |
|---|---|
| Device Type | 2U 8-Bay Rackmount Enterprise Storage Server (with Redundant Power) |
| Processor (CPU) |
AMD Ryzen V1500B (Quad-core 2.2 GHz) * 64-bit architecture, Hardware Encryption Engine support (AES-NI) |
| System Memory (RAM) |
4 GB DDR4 ECC SODIMM (Pre-installed 4 GB x 1) * Total 2 memory slots, expandable up to 32 GB (16 GB x 2) |
| Drive Bays & Expansion |
8 x 3.5" SATA HDD or 2.5" SATA SSD (Hot-swappable) 2 x M.2 2280 NVMe SSD Cache Slots * Expandable up to 12 drive bays using 1 Synology RX426 expansion unit |
| External Ports |
2 x RJ-45 2.5GbE LAN Ports (supports Link Aggregation / Failover) 2 x USB 3.2 Gen 1 Ports 1 x Expansion Port (USB Type-C) |
| PCIe Expansion Slot |
1 x PCIe Gen3 x8 slot (x4 link) * Supports 10/25GbE network interface cards |
| Dimensions & Rack Support |
2U Rackmount (H 88.3 mm x W 481.9 mm x D 398.4 mm) / Weight: 8.9 kg * Supports 4-post 19-inch racks (requires Synology Rail Kit RKS-02 sold separately) |
| Power & Cooling |
550W Redundant Power Supply Units (RP) 2 x (80 mm x 80 mm) System Fans * Fan Speed Modes: Full-Speed, Cool, Quiet |
| Environment & Certification |
Operating Temperature: 0°C to 35°C (32°F to 95°F) | Noise Level: 22.8 dB(A) * Certifications: FCC, CE, BSMI, VCCI, RCM, UKCA, EAC, CCC, KC, UL | RoHS Compliant |
| Manufacturer Warranty |
3-Year Limited Hardware Warranty * Extendable to 5 years with optional Extended Warranty Plus |
| 2. DSM Operating System & Software Specifications | |
| Storage Management |
Maximum Single Volume Size: 108 TB * Supports SSD Read/Write Cache, SSD TRIM, Btrfs File Self-Healing |
| RAID Support | Synology Hybrid RAID (SHR), Basic, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10 |
| Supported File Systems |
Internal Drives: Btrfs, ext4 External Drives: Btrfs, ext4, ext3, FAT32, NTFS, HFS+, exFAT |
| Backup & High Availability |
• Synology High Availability: Supports Active-Passive high-availability clusters • Hyper Backup: Supports folder, package, and entire system backup • Active Backup Suite: License-free backup for Windows/Mac, VMware/Hyper-V, and Microsoft 365/Google Workspace |
| 3. Add-on Package Specifications | |
| SAN Manager (Block Storage) | iSCSI Target and LUN configuration supports advanced LUN Clone / Snapshots |
| Snapshot Replication | Supports near-instantaneous snapshots for shared folders and LUNs to protect against ransomware threats |
| Surveillance Station | Default Free Camera Licenses: 2 | Supports up to 40 IP cameras (H.264 / H.265) |
| Virtual Machine Manager | Supports running Windows, Linux, and Virtual DSM (includes 1 free license) |

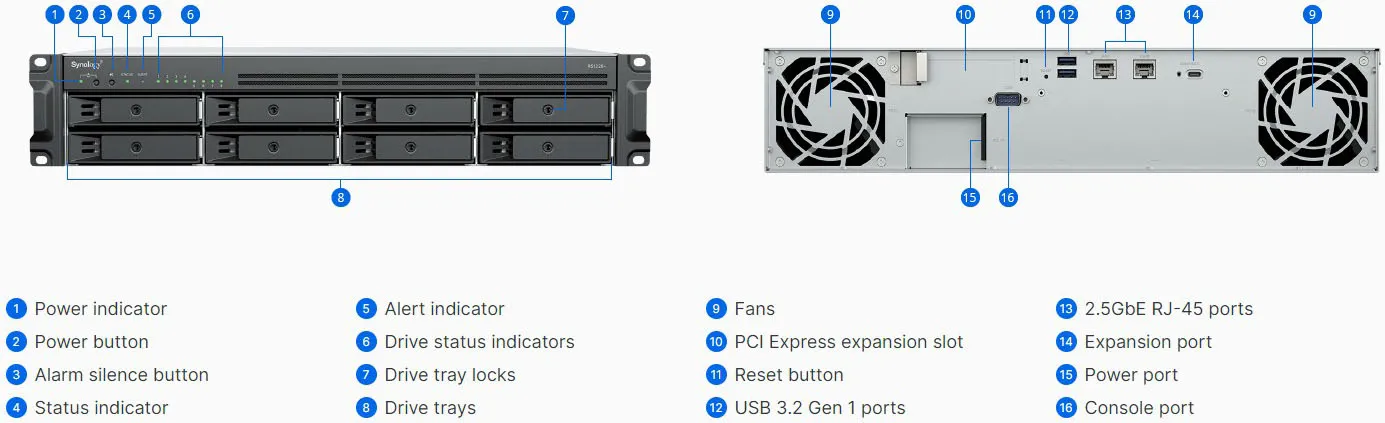

Chassis Details & Features
