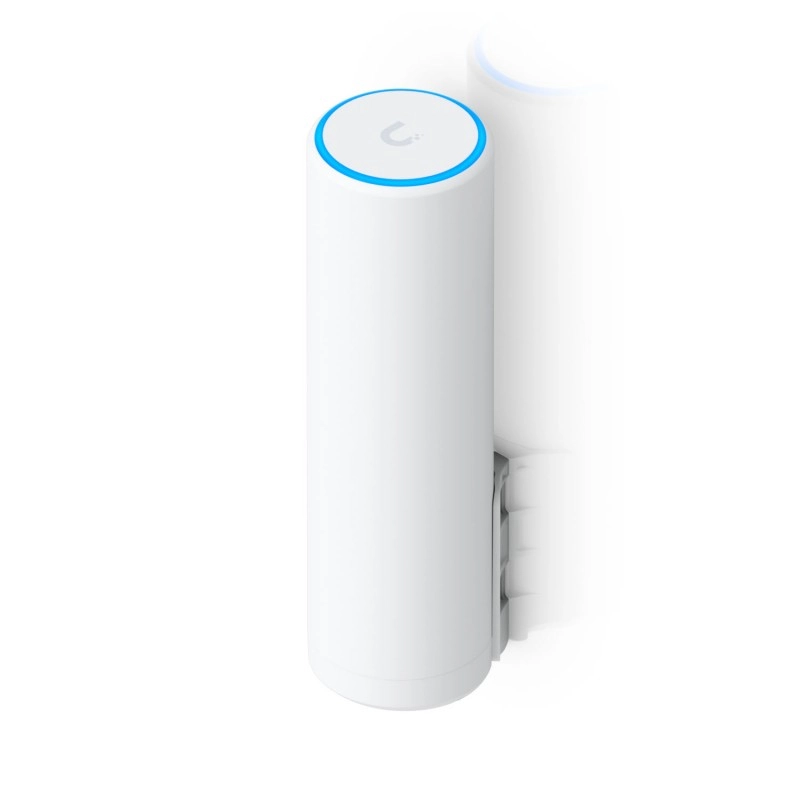

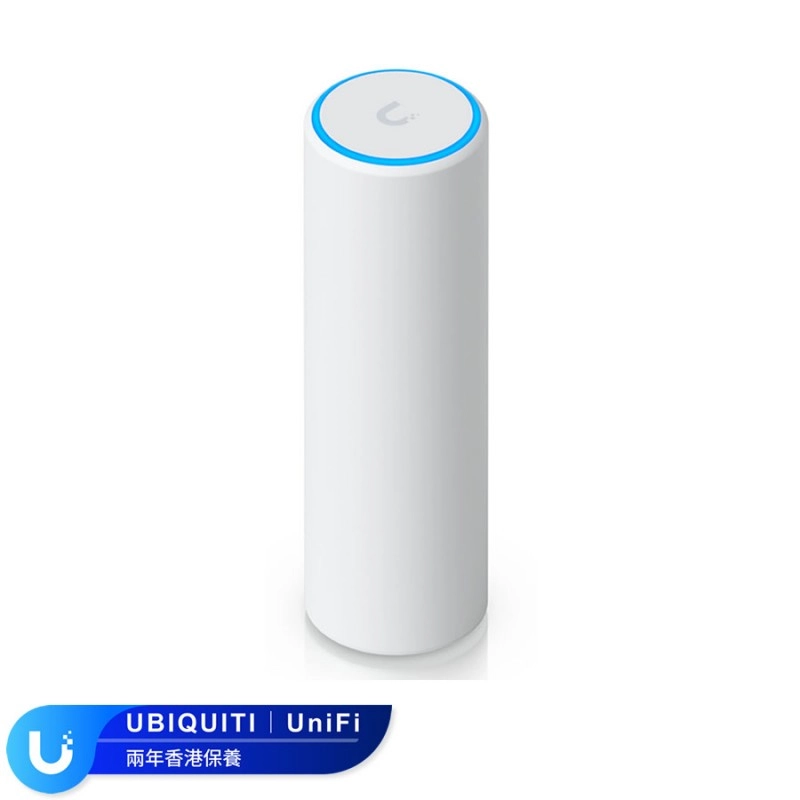

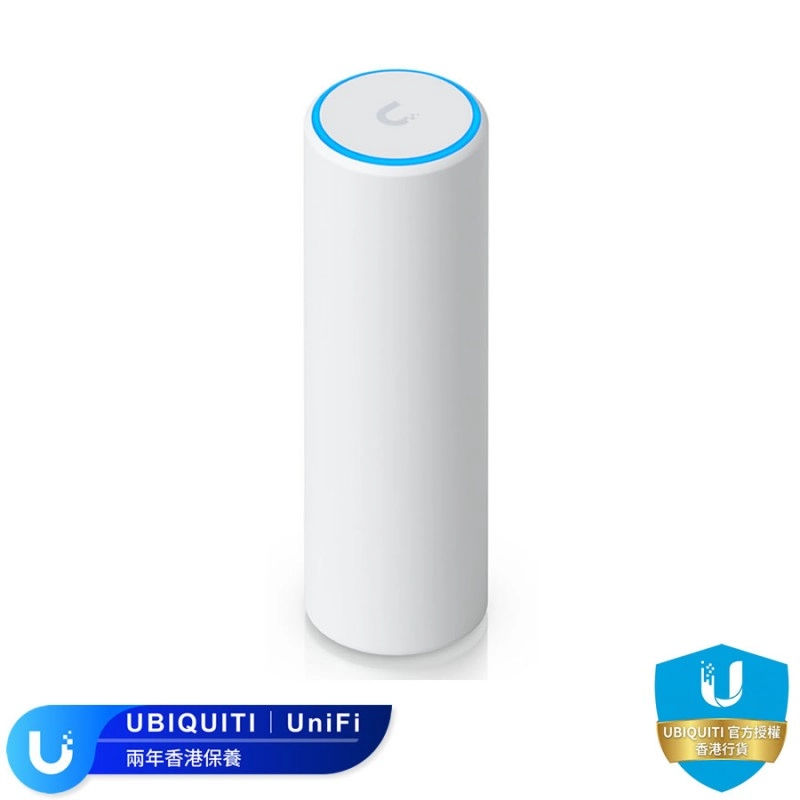

Ubiquiti UniFi U7 Mesh (U7-Mesh) — Ultra-Fast Wi-Fi 7 Access Point Designed for Outdoor and High-Density Environments
Experience the next generation of ultra-fast wireless networking! The UniFi U7 Mesh (U7-Mesh) is an enterprise-grade mesh access point combining the latest Wi-Fi 7 technology with high scalability. Designed for high-density connections and harsh outdoor environments, it provides seamless coverage of up to 140 m² (1,500 ft²) and supports 300+ concurrent high-speed device connections.
Equipped with a 2.5 GbE uplink port, tri-band Wi-Fi 7 (6 GHz / 5 GHz / 2.4 GHz), and an IPX6 weatherproof housing. Whether for large commercial campuses, open-air restaurants, garden courtyards, or high-density indoor office spaces, the U7 Mesh delivers unparalleled blazing-fast transmission and stable signals.
Enterprise Applications (Perfect for Enterprise)
Ultra-Fast Wi-Fi 7 Tri-Band Technology
Supports 6 GHz, 5 GHz, and 2.4 GHz bands. Combined with 320 MHz ultra-wide channels and MLO technology, it achieves ultra-low latency and high-throughput data transmission.
IPX6 Outdoor Protection Design
Features IPX6 robust waterproof, dustproof, and weatherproof specifications, capable of withstanding heavy wind, rain, and harsh climates, effortlessly meeting various outdoor installation requirements.
2.5 GbE Ultra-Fast Wired Uplink

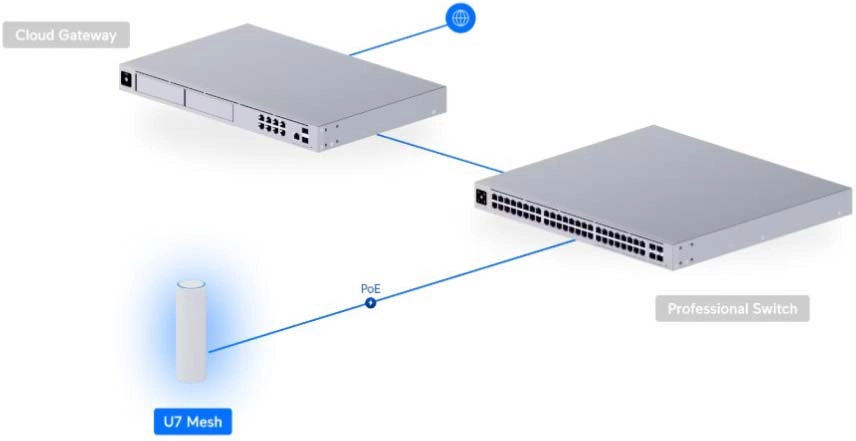

Equipped with 1x 2.5 GbE RJ45 port and supports PoE+ power supply, fully unlocking Wi-Fi 7 wireless speeds and eliminating data bottlenecks of traditional 1G network uplinks.
Flexible Installation and Seamless Mesh Expansion

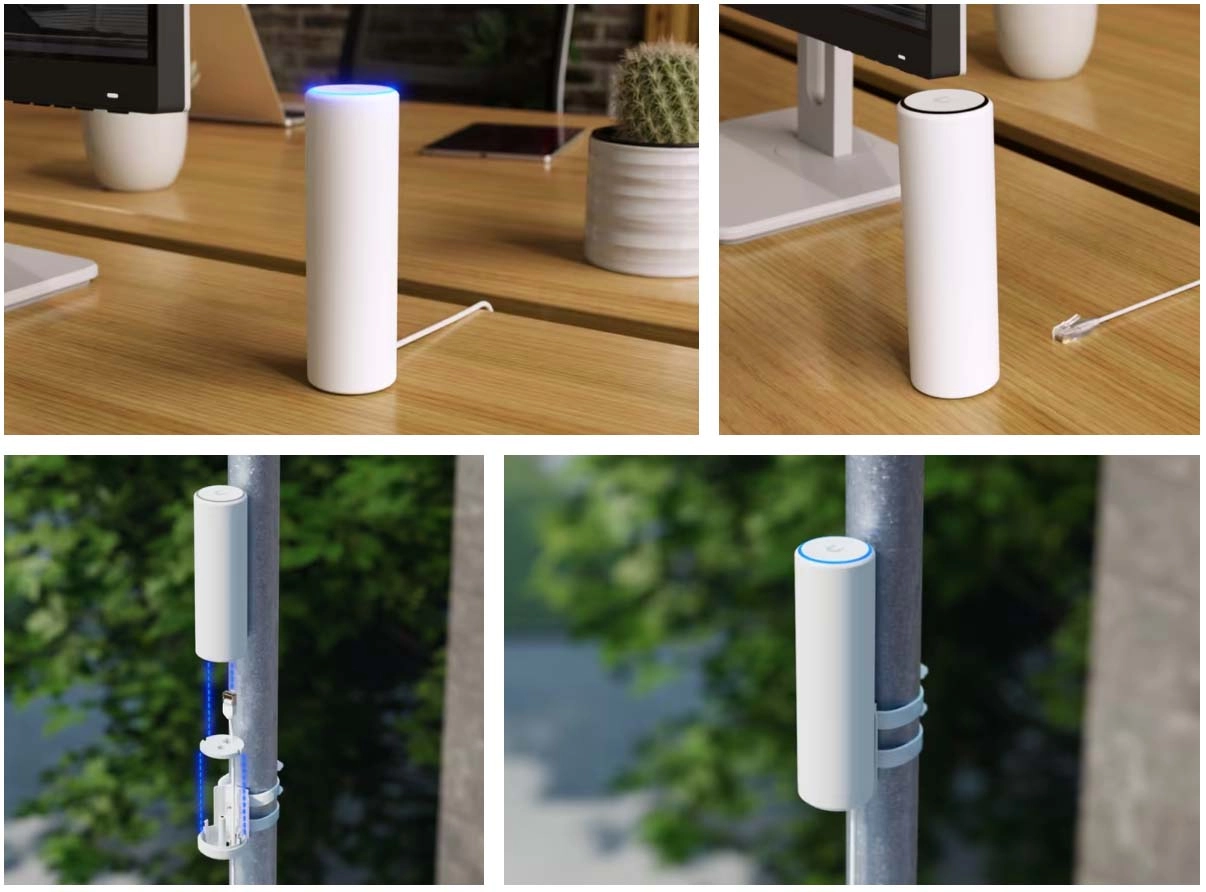

Compact and exquisite body design, supporting various mounting options such as wall or pole mounting. Combined with UniFi Mesh networking, it easily creates a zero-dead-zone coverage.
Hardware Specifications
| Device Type | Outdoor / Indoor Wi-Fi 7 Access Point |
|---|---|
| Networking Interface | 2.5G RJ45: (1) 2.5 GbE RJ45 Port (Supports PoE+ Input) |
| Wi-Fi Standards | 802.11a/b/g/n/ac/ax/be (Wi-Fi 7) |
| Wi-Fi Throughput Rate |
6 GHz: 2x2 MIMO, Up to 5.7 Gbps 5 GHz: 2x2 MIMO, Up to 2.8 Gbps 2.4 GHz: 2x2 MIMO, Up to 688 Mbps |
| Antenna Gain |
2.4 GHz: 3 dBi 5 GHz: 5 dBi 6 GHz: 6 dBi |
| Coverage & Capacity |
Coverage Area: 140 m² (1,500 ft²) Max. Connected Devices: 300+ Devices |
| Weatherproofing | IPX6 Weatherproof Rating |
| Special Features | Multi-Link Operation (MLO), 802.1Q VLAN, Advanced QoS, Guest Traffic Isolation, Seamless Roaming |
| Dimensions | Ø48.5 x 159.5 mm (1.9 x 6.3") |
| Weight | 400 g (14.1 oz) |
| Power Method | PoE+ (48V, 0.5A) |
| Max. Power Consumption | 21W |
| Certifications | CE, FCC, IC |
| Warranty | 2-Year Limited Carry-in Warranty |

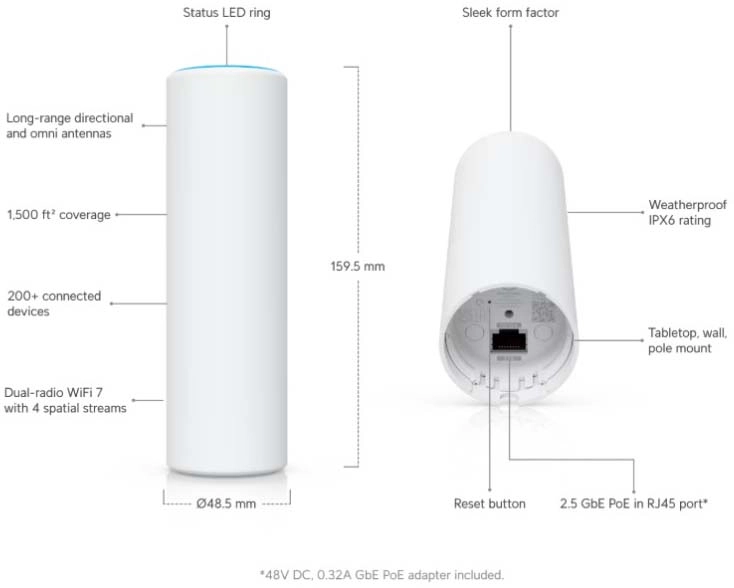

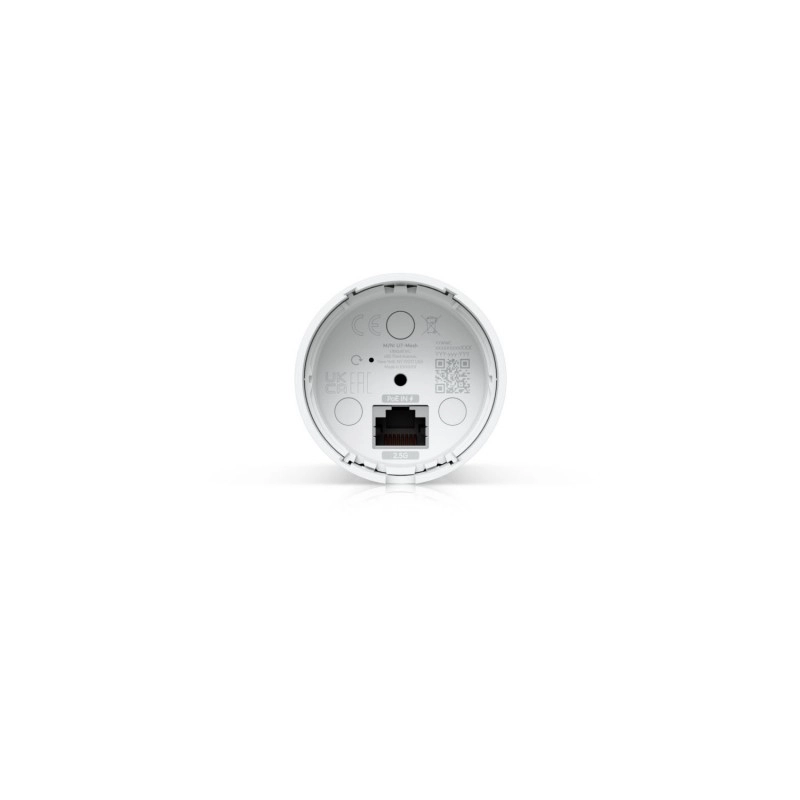

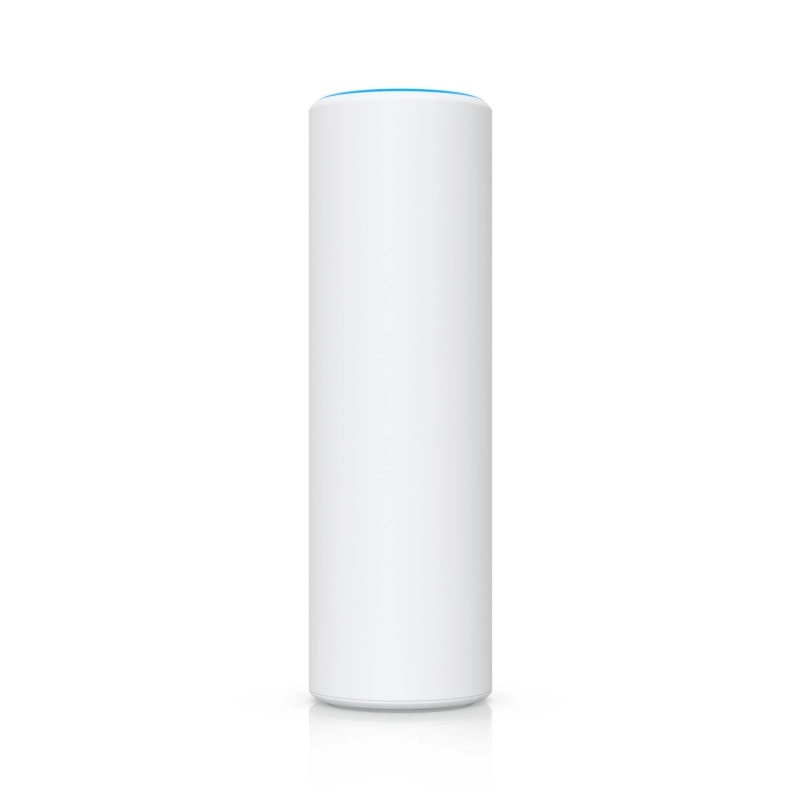

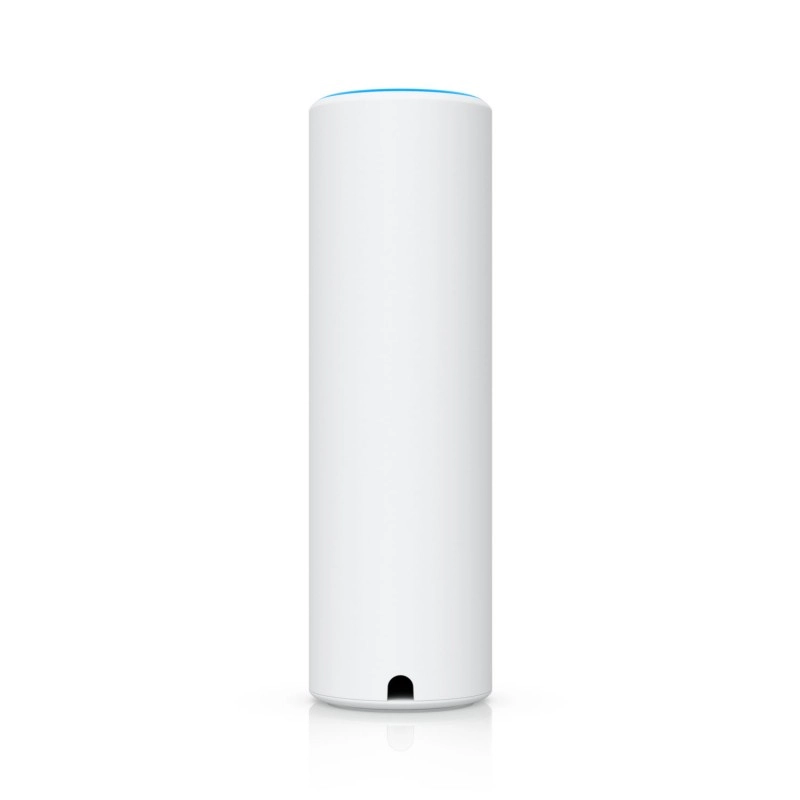

Device Details and Appearance
Package Contents
