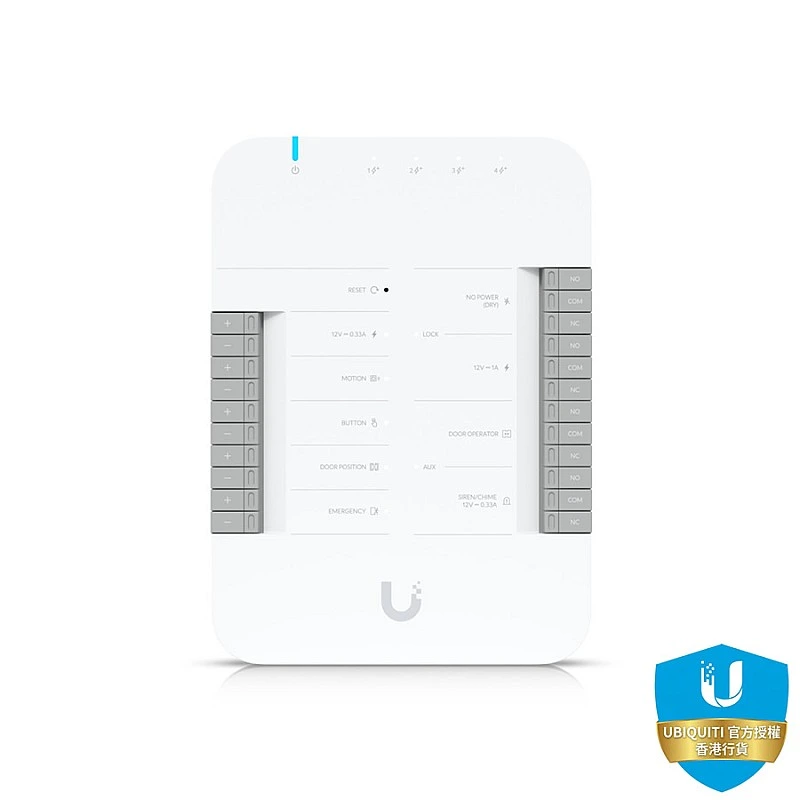

Ubiquiti UniFi Access Door Hub (UA-Hub-Door) — Enterprise-Grade Smart Single-Door Access Controller
Build a modernized enterprise access control system! The UniFi Access Door Hub (UA-Hub-Door) is a powerful single-door smart controller designed to work seamlessly with the UniFi Access system and manage various door access hardware. Powered by a single PoE++ network cable, it supplies power to the controller while offering complete control over door locks and sensors.
The device features 1 PoE++ input port and 4 PoE+ output ports, allowing you to directly connect and power Access readers, Protect surveillance cameras, and other security accessories. Integrated with 12V powered and dry contact lock relays, an AUX alarm output, and comprehensive sensor inputs including REX/REN/DPS/EMG, it serves as the ultimate access core for enterprise offices and commercial facility management.
Enterprise-Grade Application Scenarios (Perfect for Enterprise)
Single-Door Smart Control & Lock Compatibility
Provides both 12V DC powered and dry contact (Dry Relay) lock interfaces, perfectly compatible with various Fail-Safe and Fail-Secure magnetic locks and electric strikes.
PoE++ Powered with 4x PoE+ Expansion
Requires only a single PoE++ (802.3bt) network cable for power while providing 4 PoE+ RJ45 output ports to directly power Access readers and Protect cameras.
Rich Sensors & Emergency Integration
Fully supports REX/REN buttons, Door Position Sensors (DPS), and Emergency input (EMG), automatically unlocking doors during fire emergencies or critical situations to meet building safety standards.
Standard DIN-Rail Flexible Mounting
Compact and rugged enclosure featuring DIN-rail mounting brackets for easy installation inside standard low-voltage cabinets or enclosures, keeping wiring and maintenance neat and structured.
Hardware Specifications
| Device Type | Single-Door Smart Access Controller (Single-Door Access Hub) |
|---|---|
| Networking Interface |
Uplink: (1) 10/100/1000 GbE RJ45 (Supports PoE++ 802.3bt input) PoE Output (Downlink): (4) 10/100/1000 GbE RJ45 (Supports PoE+ 802.3at output for readers and cameras) |
| Lock Relays |
Powered Lock Output: 12V DC, Max. 1A (Compatible with Fail-Safe / Fail-Secure locks) Dry Relay Output: 30V DC, Max. 1A |
| AUX Relays | AUX Relay: (1) 30V DC, Max. 1A (Supports Siren, Strobe, or Automatic Door linkage) |
| Sensors & Control Inputs |
REX (Request to Exit): (1) Exit button / sensor input REN (Request to Enter): (1) Entry request button input DPS (Door Position Sensor): (1) Door magnetic sensor input EMG (Emergency Input): (1) Emergency signal input (Automatic unlock triggered on fire alarm) Remote Release: Supported |
| Power Method | PoE++ 802.3bt (Max. 50W, recommended to use with a UniFi PoE++ enterprise switch) |
| Power Budget |
Max. Power Consumption: 50W (including PoE output) PoE+ Power Budget: Max. 40W (Up to 30W PoE+ output per port) |
| Mounting & Enclosure | Standard DIN-Rail Mounting, aluminum alloy and high-strength polycarbonate enclosure |
| Dimensions | 190 x 126 x 32.5 mm (7.48 x 4.96 x 1.28") |
| Weight | 363 g (0.8 lb) |
| Operating Environment |
Temperature: -10°C to 40°C (14°F to 104°F) Humidity: 5 to 90% non-condensing |
| Certifications | CE, FCC, IC |
| Warranty | 1-Year Limited Warranty (Carry-In) |

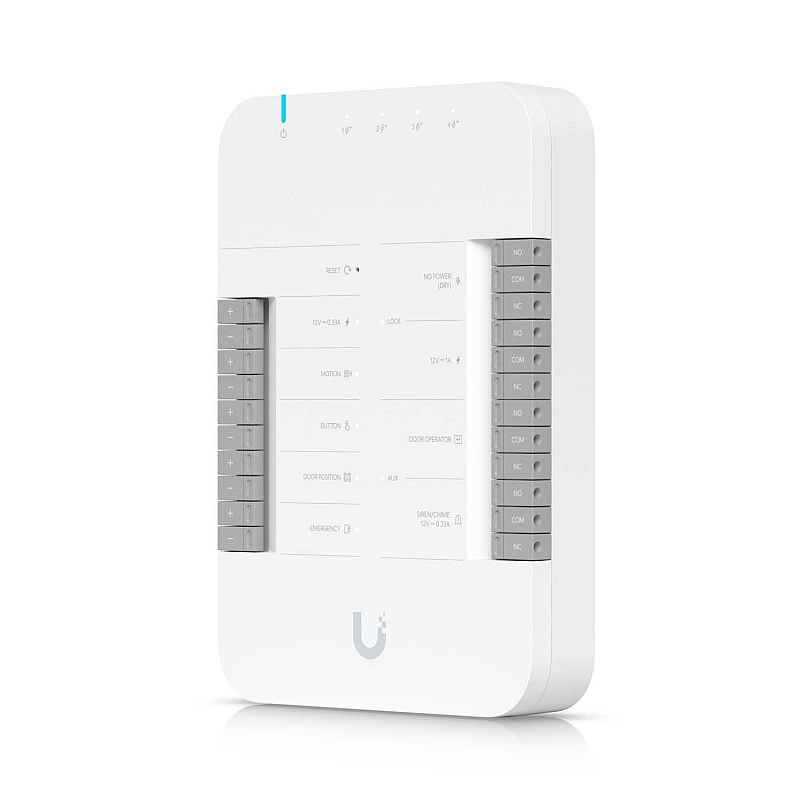

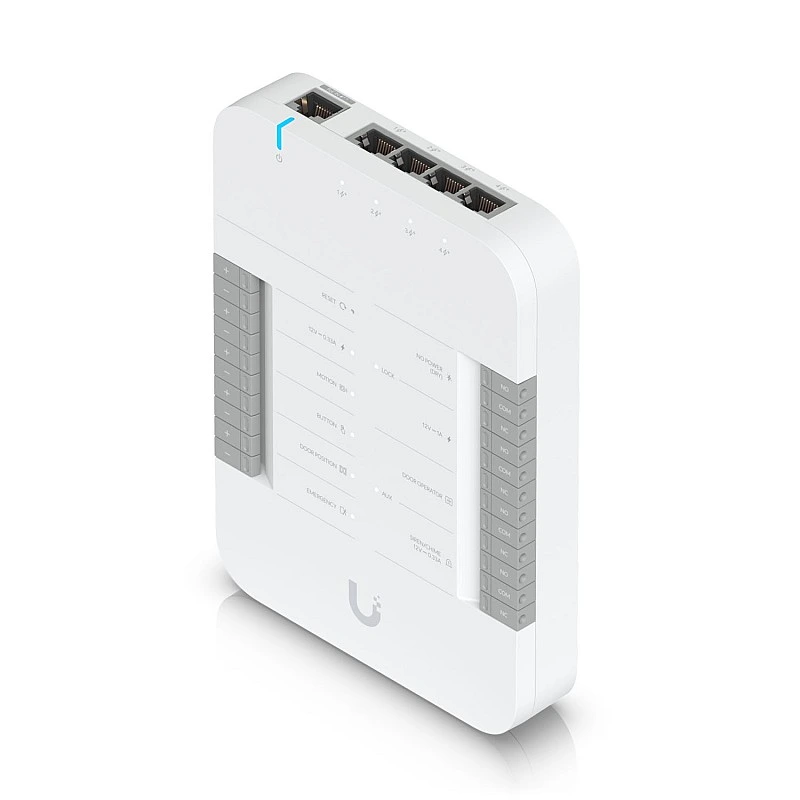

Device Details & Exterior
Package Contents
