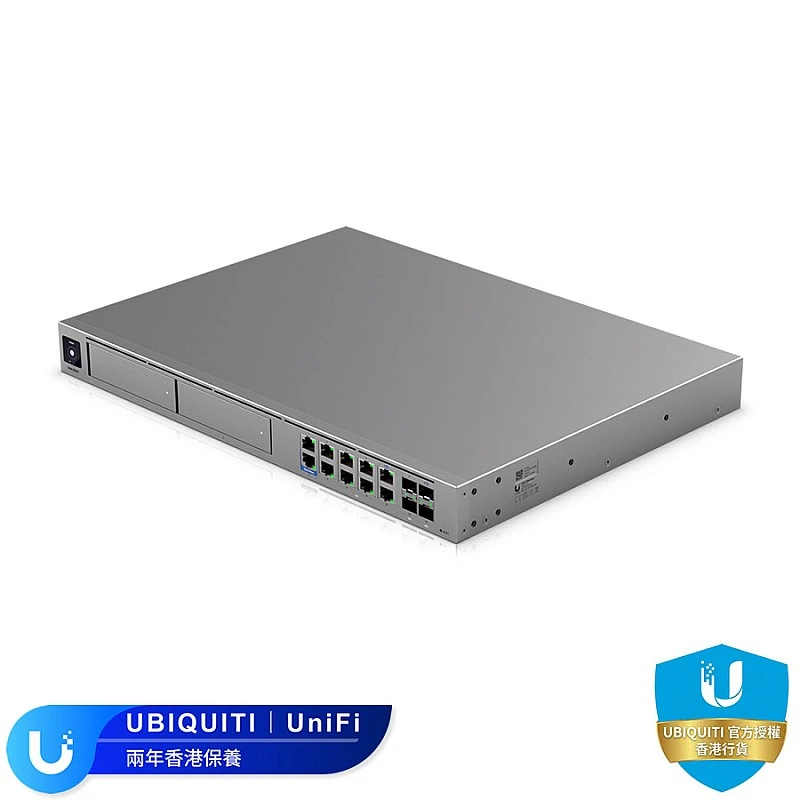

Ubiquiti UniFi Dream Machine Beast (UDM-Beast) — Hyperscale Cloud Gateway Built for Enterprise Backbones
Experience ultra-fast enterprise networking! The UniFi Dream Machine Beast (UDM-Beast) is a powerful hyperscale-class Cloud Gateway designed to push the boundaries of modern enterprise networks. Delivering up to 25 Gbps of IDS/IPS threat protection throughput and supporting over 7,500 concurrent connected users, it provides an unparalleled backbone networking and security experience.
It integrates the complete UniFi application suite (Network, Protect, Access, Talk, Connect) and features dual 3.5" NVR HDD expansion bays in a single device. Equipped with two 25G SFP28, two 10G SFP+, eight 10G RJ45, and two 1G RJ45 network ports. Whether you are building a high-density large office network, a campus, or handling ultra-high bandwidth data center connections, the UDM-Beast provides the ultimate core network solution for your enterprise.
Perfect for Enterprise
25 Gbps Ultra-Fast Security Protection
Delivers up to 25 Gbps of IDS/IPS throughput with 55,000+ built-in CyberSecure threat signatures, providing ultimate network security filtering and protection for enterprises without sacrificing performance.
Hyperscale Device Management

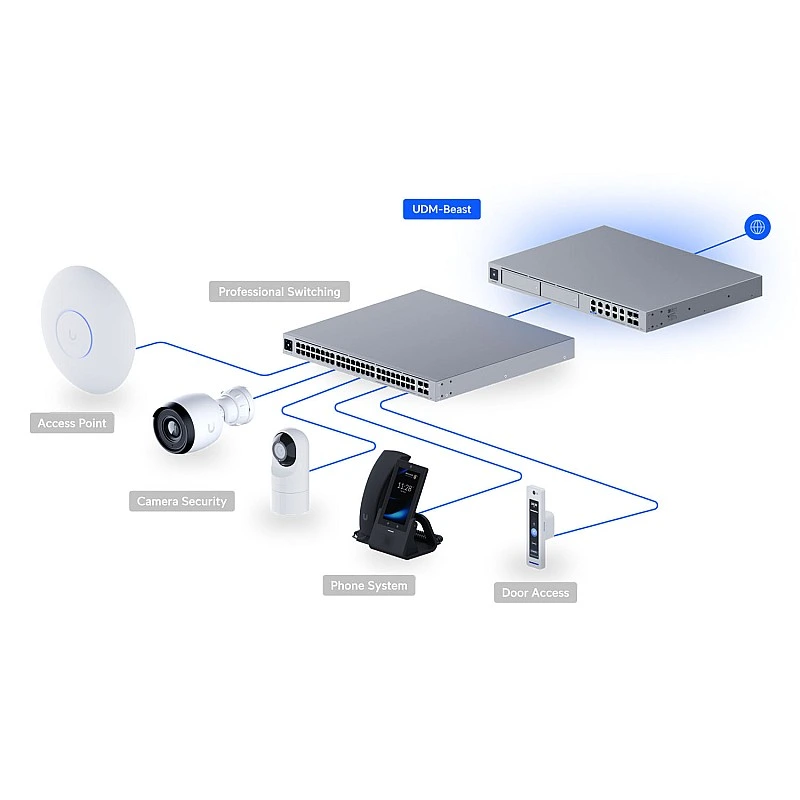

Manages over 750 UniFi devices and 7,500+ concurrent users. Featuring a complete built-in UniFi application suite, it handles networking, surveillance, and access control all in one device for comprehensive centralized management.
Shadow Mode High Availability
Supports Shadow Mode (VRRP) Gateway Failover and USP-RPS redundant power input, ensuring your enterprise's core backbone network never goes down by providing seamless redundancy.
Rich High-Density Ports & Expansion
Features the ability to map up to 8 WAN ports, equipped with 25G/10G fiber and 10G RJ45 interfaces. The chassis also features dual 3.5" NVR HDD bays to easily expand massive storage capacity for UniFi Protect.
Hardware Specifications
| Device Type | Hyperscale-class Cloud Gateway |
|---|---|
| CPU & Memory |
Processor: Octa-core ARM® v9 @ 2.1 GHz Memory: 16 GB RAM |
| Networking Interface |

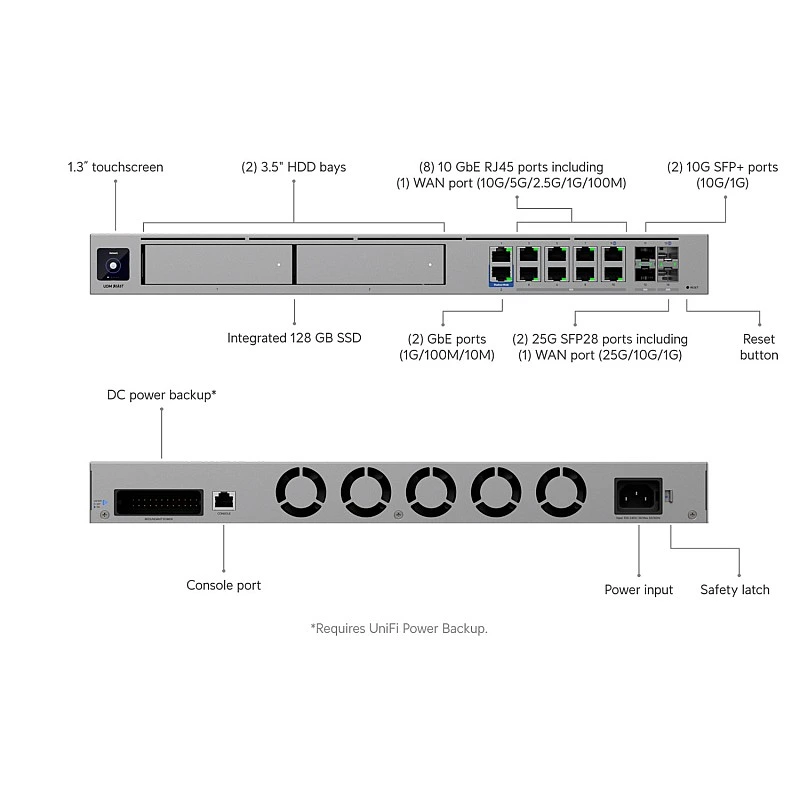

1G RJ45: (2) 1 GbE (1G/100M/10M) 10G RJ45: (8) 10 GbE (10G/5G/2.5G/1G/100M) 10G Fiber: (2) 10G SFP+ (10G/1G) 25G Fiber: (2) 25G SFP28 (25G/10G/1G) |
| Capacity & Performance |
IDS/IPS Threat Protection Throughput: 25 Gbps Concurrent Users: 7,500+ Manageable UniFi Devices: 750+ MAC Address Table: 32,000 |
| Security & Routing | Stateful / Layer 7 Firewall, 55,000+ Built-in IDS/IPS Signatures, License-Free SD-WAN, Site Magic, Shadow Mode High Availability |
| Storage | Built-in 128 GB SSD + (2) 3.5" NVR HDD expansion bays (Supports Protect video recording) |

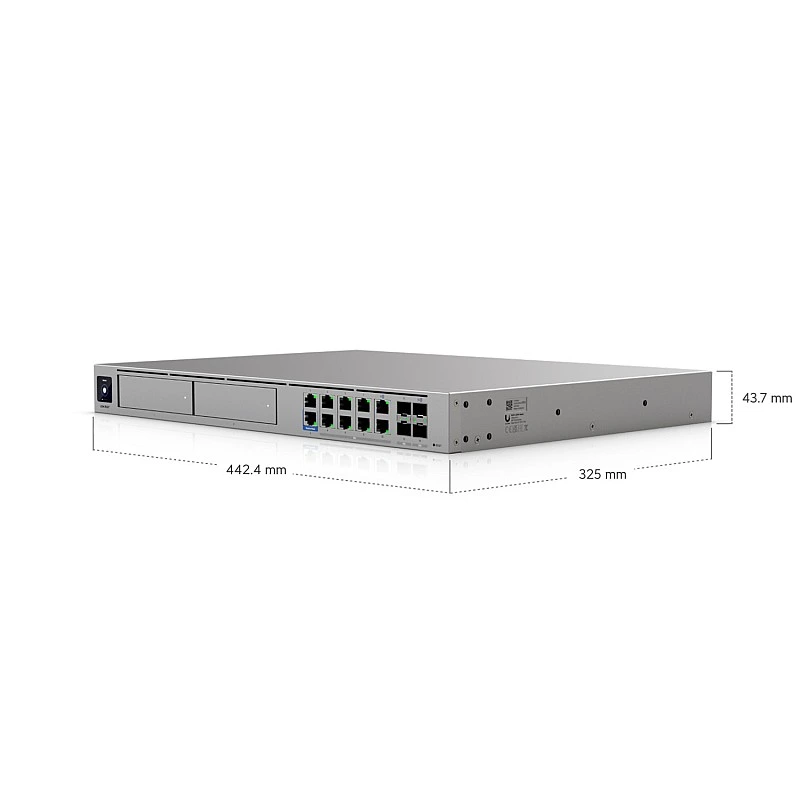

| Dimensions | 442.4 x 43.7 x 325 mm (Standard 1U Rackmount) |
| Weight | 5.5 kg (12.13 lb) |
| Power Method | (1) 100-240V AC, 3A Max 50/60 Hz Universal Input (1) USP-RPS DC Redundant Power Input (11.5V DC, 13.05A) |
| Power Supply | AC/DC, Internal, 150W |
| Max. Power Consumption | 100W |
| Certifications | CE, FCC, IC |
| Warranty (Authorized Goods) | 2-Year Limited Carry-in Warranty |
Device Details & Appearance
Package Contents
