- Stock: Pre-Order remaining
- Brand: MikroTik
- Model: CRS812-8DS-2DQ-2DDQ-RM

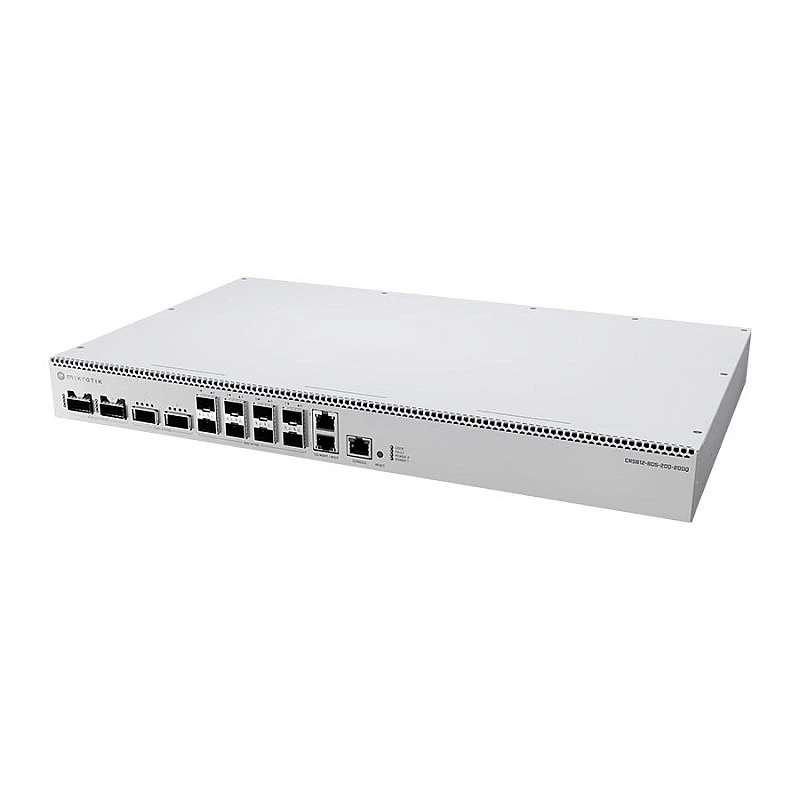

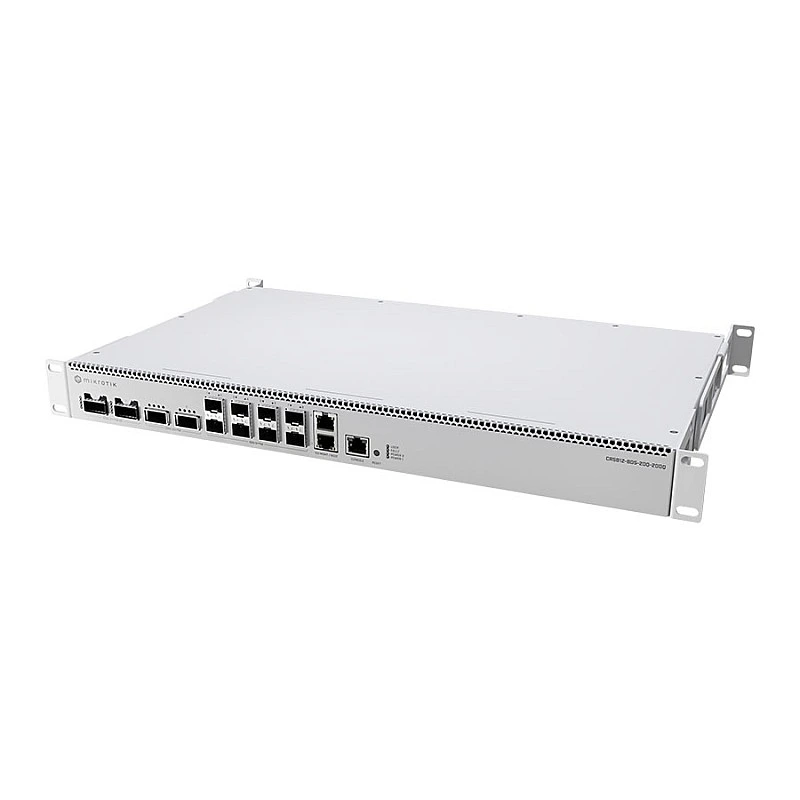

MikroTik CRS812 DDQ — Enterprise-grade 50G/200G/400G Backbone Network Switch
Experience ultimate performance and throughput for modern data centers! MikroTik CRS812 DDQ is a high-end rackmount switch built for future networks, providing a highly cost-effective way to bring 50G, 200G, and even 400G into your rack. It perfectly fits as a top-of-rack / leaf switch with 400G uplinks to the spine, or for labs, AI clusters, and media workflows where fast "east-west" traffic is critical.
This device features a powerful quad-core 2 GHz ARM CPU, a Marvell enterprise switch chip, dual-redundant hot-swap power supplies, and 4x hot-swap cooling fans. Combined with the fully-featured RouterOS v7 without subscription paywalls, you can easily configure advanced routing, switching, and traffic management rules. The CRS812 DDQ changes the narrative that 400G used to mean expensive and complex, delivering the most flexible solution for modern high-bandwidth demands.
Perfectly Suited for Data Centers & Core Networks
400G Support & Break-out Modes

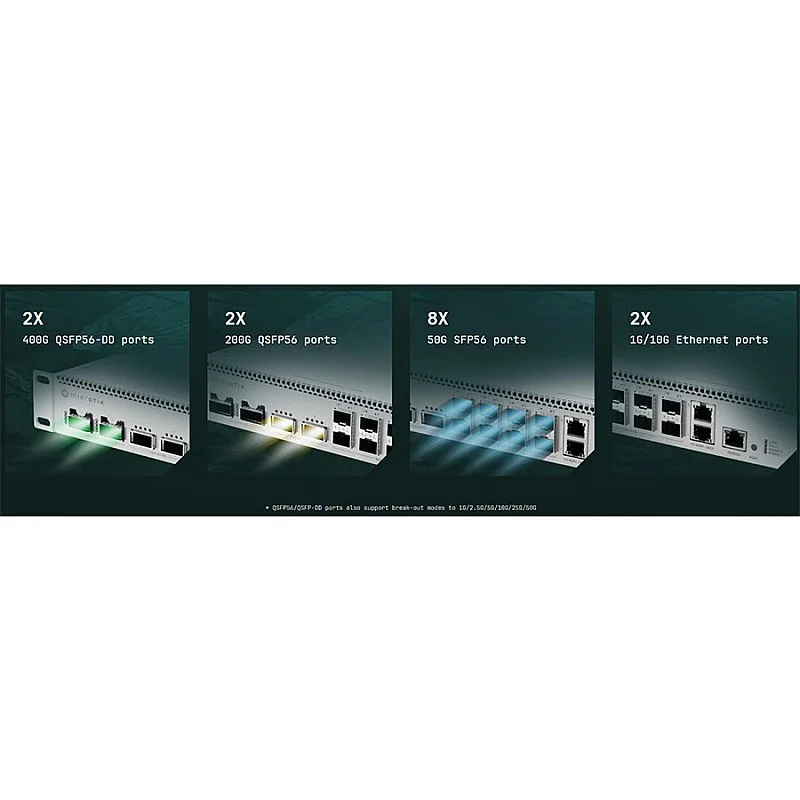

Equipped with 2x 400G QSFP56-DD, 2x 200G QSFP56, and 8x 50G SFP56 ports. The QSFP ports also support break-out modes to 1G/2.5G/5G/10G/25G/50G, allowing seamless connection with legacy devices.
Powerful Core & Non-blocking Switching
Powered by a Quad-core AL52400 CPU and Marvell 98DX7335 switch chip, providing up to 3.2 Tbps of non-blocking Layer 2 capacity and powerful Layer 3 hardware offloading (L3HW) performance.
Enterprise High Availability

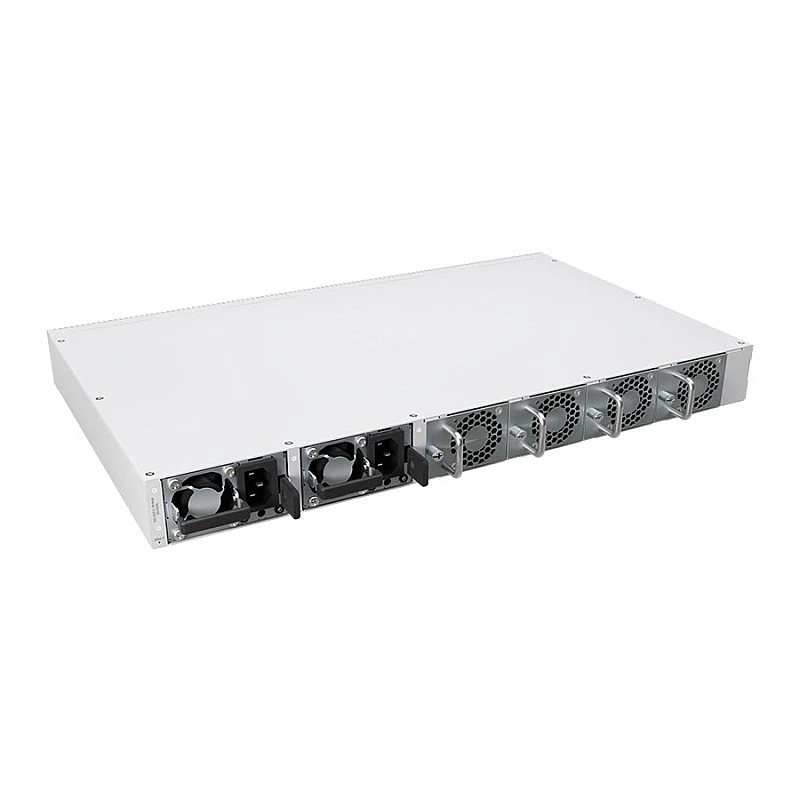

Designed for demanding server room environments, featuring dual-redundant hot-swap power supplies (PSU) and 4 hot-swap cooling fans to ensure stable operation and zero downtime during maintenance.
Full-Featured RouterOS System
Runs on the highest tier RouterOS v7 (License Level 6) with no subscription limits. Trusted in millions of deployments, it provides advanced routing protocols, VLANs, and traffic control.
Hardware Specifications
| Product Code | CRS812-8DS-2DQ-2DDQ-RM |
|---|---|
| Processor (CPU) | AL52400 Quad-core ARM 64bit (2000 MHz) |
| Memory & Storage | 4 GB RAM / 512 MB NAND Storage |
| Switch Chip Model | Marvell 98DX7335 |
| Ethernet Ports | (2) 1G/10G Ethernet ports (supports 10M/100M/1G/10G) |
| Fiber Interfaces | (8) 50G SFP56 ports (2) 200G QSFP56 ports (2) 400G QSFP56-DD ports |
| Console Port | (1) RJ45 serial console port |
| Other Features | CPU temperature monitor, PCB temperature monitor, Voltage monitor |
| Operating System | RouterOS v7 (License Level 6) |
| Power Method | (2) AC inputs (100-240V), Dual-redundant hot-swap modules |
| Max. Power Consumption | 134W (81W without attachments) |
| Cooling & Temp | 4x hot-swap cooling fans / Tested ambient temperature: -10°C to 50°C |
| MTBF | Approx. 200,000 hours at 25°C |
| Certification | CE, EAC, ROHS (IP 20) |
| Warranty | 1-Year Limited Carry-in Warranty |

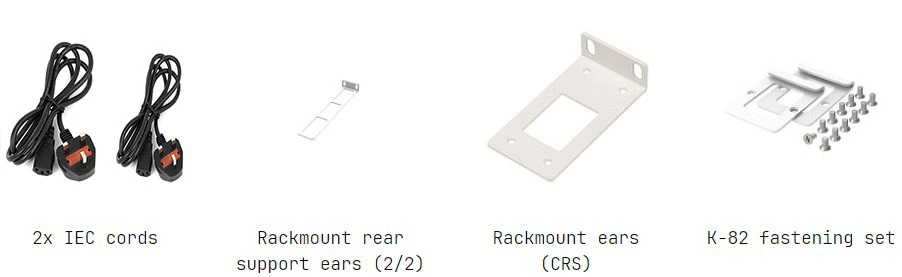

Included Parts
