- Stock: 4 remaining
- Brand: Ubiquiti
- Model: UACC-Lock-Magnetic-270kg
- UPC: 810010076502

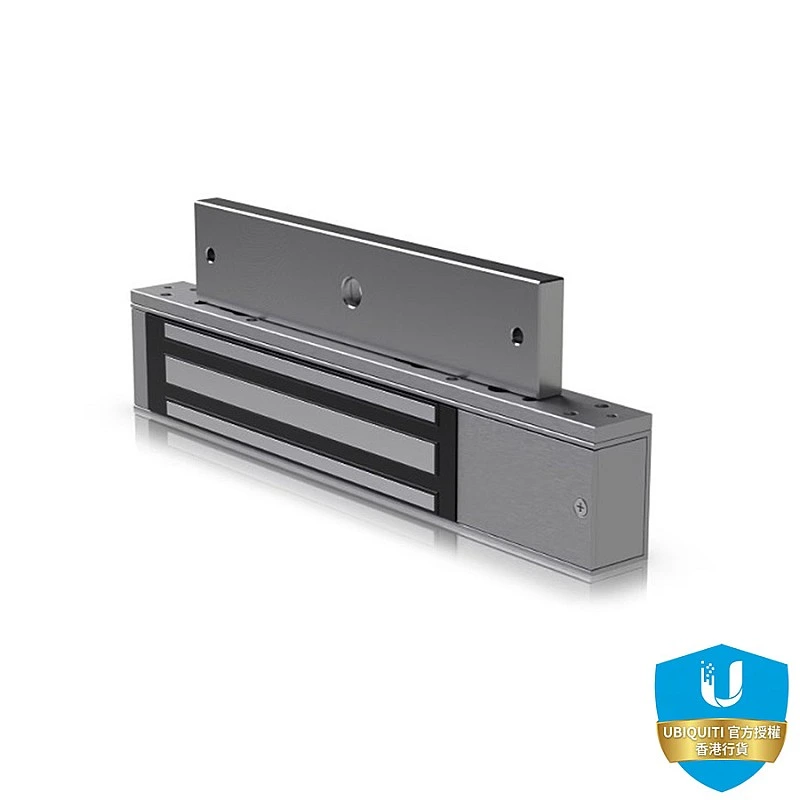

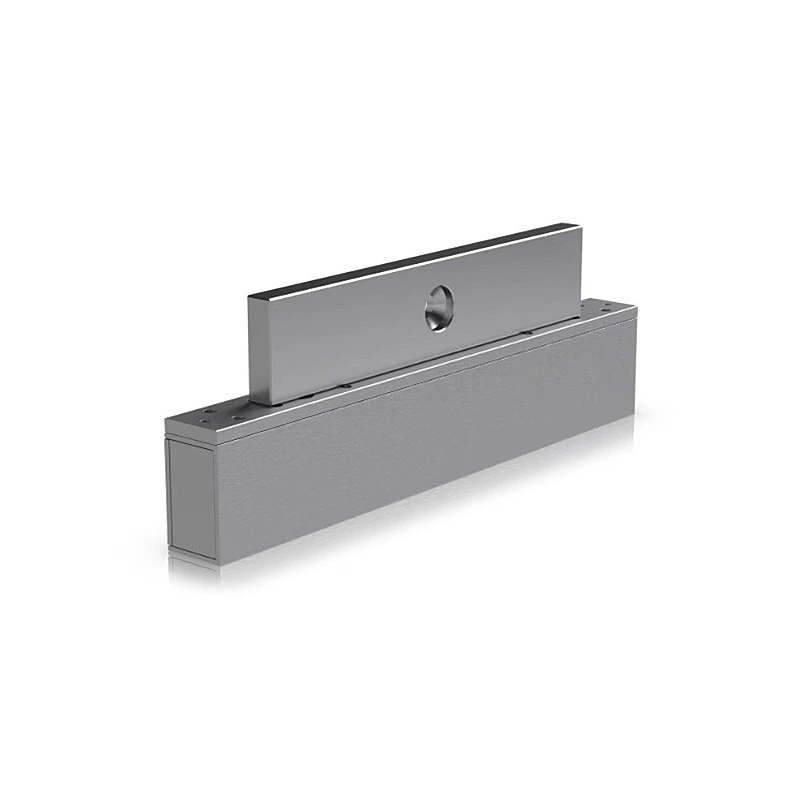

Ubiquiti UniFi Access Magnetic Lock (UACC-Lock-Magnetic) — High-Holding-Force Magnetic Lock Built for UniFi Access Control
Provide uncompromising door access protection for your office and commercial spaces! The UniFi Access Magnetic Lock is an enterprise-grade security magnetic lock featuring a Fail-Safe (unlocks on power loss) design that integrates seamlessly into the UniFi Access smart access control ecosystem to deliver reliable, highly durable entry security.
Available in two high-holding-force options: 270 kg (600 lb) and 540 kg (1,200 lb). Fully supports both inswing and outswing door installations, with the 270 kg model also compatible with full glass door structures. It connects directly to various UniFi Access Hub controllers to provide ultimate security control for enterprise main entrances and vital access corridors.
Perfect for Enterprise Applications
High Holding Force Protection
Delivers powerful electromagnetic holding force of up to 270 kg (600 lb) or 540 kg (1,200 lb), effectively preventing unauthorized forced entry and safeguarding your assets.
Fail-Safe Operational Mode
Engineered with a fail-safe (unlocks on power loss) safety mechanism. In the event of a building power outage or emergency evacuation broadcast, the lock releases instantly to ensure clear evacuation routes in full compliance with fire safety regulations.
Seamless UniFi Access Integration
Fully compatible with core UniFi Access controllers including UA-Hub-Door, EAH-8, and UA-Hub-Door-Mini. Manage access schedules and permissions centrally via the UniFi Access platform.
Broad Door Structure Compatibility
Supports installation on both inswing and outswing doors. The 270 kg version is also compatible with full glass doors commonly found in modern office environments.
Hardware Specifications
| Device Type | Access Control Magnetic Lock |
|---|---|
| Holding Force Options |
270 kg Model (UACC-Lock-Magnetic-270kg): Up to 270 kg (600 lb) 540 kg Model (UACC-Lock-Magnetic-540kg): Up to 540 kg (1,200 lb) |
| Operating Mode | Fail-Safe (Unlocks on power loss) |
| Compatibility | UA-Hub-Door, EAH-8, UA-Hub-Door-Mini, UA-Ultra, UA-Hub-Gate, UA-Retrofit-Hub-2 |
| Supported Door Types |
270 kg Model: All door types, including full glass 540 kg Model: All door types, excluding full glass Swing Direction: Supports both inswing and outswing doors |
| Power Method | 12V DC (Connects directly to the Lock / Dry Relay port on a UniFi Access Hub) |
| Power / Current |
Operating Current: 12V DC, 500 mA Max. Power Consumption: Approx. 6W |
| Materials | Corrosion-resistant high-strength aluminum alloy housing, professional-grade galvanized steel armature plate |
| Operating Environment |
Operating Temperature: -10°C to 55°C (14°F to 131°F) Operating Humidity: 10% to 90% non-condensing |
| Certifications | CE, FCC, IC |
| Warranty | 1-Year Limited Carry-In Warranty |

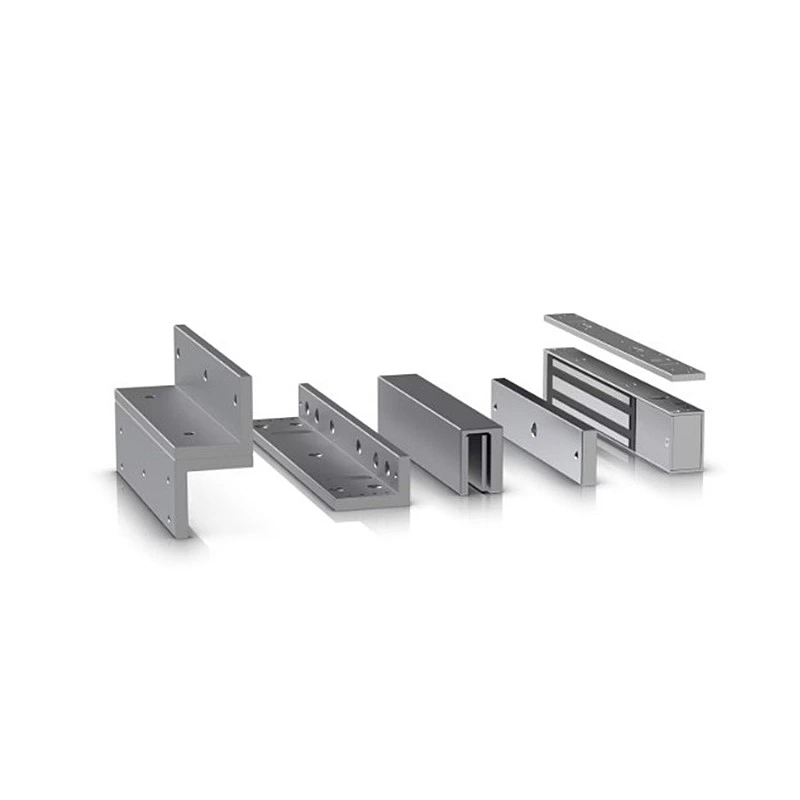

Lock Design and Installation Reference
