- Stock: 2 remaining
- Brand: TP-Link
- Model: ES220GMP

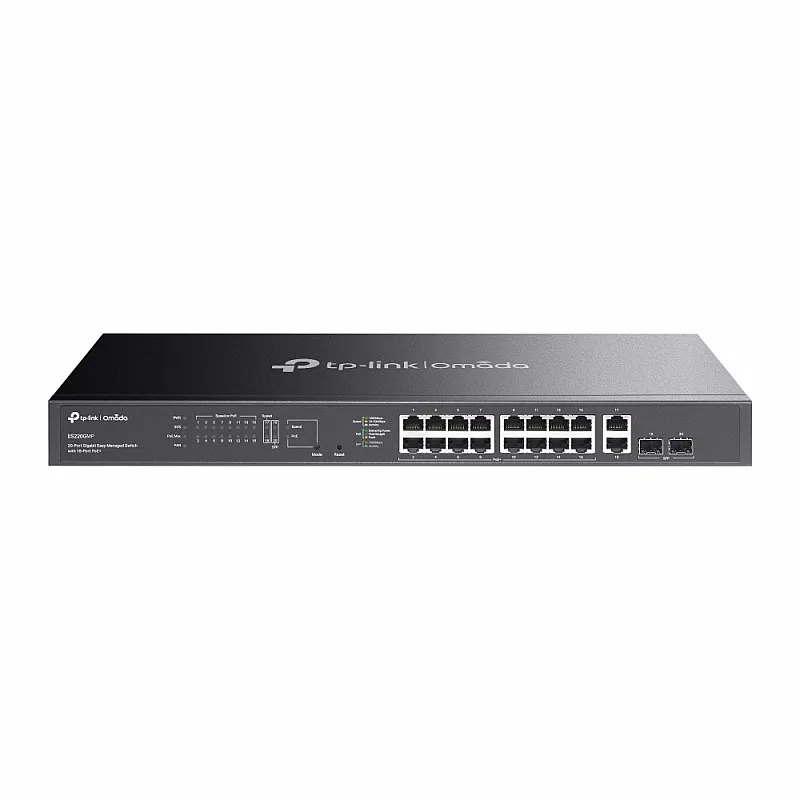

TP-Link Omada ES220GMP — Omada 20-Port Gigabit Easy Managed Switch with 16-Port PoE+
Upgrade your enterprise or surveillance network! The TP-Link Omada ES220GMP is a 20-Port Gigabit Easy Managed Switch tailored for SMBs and surveillance systems. Featuring a robust metal casing, dual cooling fans, and a 250W PoE power budget, it supports Omada SDN centralized cloud management to deliver stable, efficient, and secure network connectivity.
Provides 16× 10/100/1000 Mbps PoE+ RJ45 ports, 2× Gigabit RJ45 ports, and 2× Gigabit SFP slots. It supports up to 250m long-range PoE transmission and PoE Auto Recovery. Whether you are building a surveillance system, expanding an office network, or configuring VLAN traffic isolation and QoS prioritization, the ES220GMP paired with the Omada App or Cloud management platform serves as your most cost-effective and reliable network hub solution.
Perfect for Enterprise
20-Port Connectivity & 250W PoE+ Power
Provides 16 802.3af/at compliant PoE+ Gigabit ports, plus 2 Gigabit RJ45 and 2 SFP slots. Features a 250W total PoE budget with up to 30W per port, ideal for powering multiple access points and IP cameras.
Metal Casing & Rackmountable Design
Constructed with a premium metal housing and dual cooling fans to ensure stable operation under heavy loads. Supports standard rackmount installation for flexible deployment in enterprise server rooms.
Advanced Omada SDN Centralized Management
Fully integrates into the Omada SDN ecosystem. Easily achieve Zero-Touch Provisioning, centralized management, and unified network monitoring via Cloud Controllers (including the free Omada Cloud Essentials) or the Omada App.
Surveillance Optimization & Long-Range PoE
Supports long-range PoE transmission up to 250 meters and PoE Auto Recovery. Combined with 802.1Q VLAN, IGMP Snooping, and QoS features, it guarantees ultra-stable surveillance footage and data transmission.
Hardware Specifications
| Device Type | Omada 20-Port Gigabit Easy Managed Switch with 16-Port PoE+ |
|---|---|
| Interface |
(16) 10/100/1000 Mbps PoE+ RJ45 Ports (2) 10/100/1000 Mbps RJ45 Ports (2) Gigabit SFP Slots (Supports Auto-Negotiation and Auto MDI/MDIX) |
| Performance |
Switching Capacity: 40 Gbps Packet Forwarding Rate: 29.76 Mpps MAC Address Table: 8K Jumbo Frame: 15 KB |
| PoE Features |
Standard: 802.3af/at compliant PoE Power Budget: 250W (Supports 16 PoE+ ports, up to 30W per port) Features: PoE Auto Recovery, Up to 250m long-range transmission |
| Software Features | Supports 802.1Q Tag VLAN (up to 32 groups), Port-based/802.1p/DSCP QoS, IGMP Snooping (v1/v2/v3), Static Link Aggregation, Loop Prevention / Loopback Detection, Port Mirroring, and 802.3x Flow Control. |
| Management | Supports Omada App, Omada Cloud-Based Controller (includes free Omada Cloud Essentials), Omada Hardware/Software Controllers, Web GUI, Centralized Cloud Management, and Zero-Touch Provisioning (requires cloud controller). |
| Hardware Design |
Fans: 2 Surge Protection: ±6 kV |
| Dimensions | 440 × 180 × 44 mm (17.3 × 7.1 × 1.7 in) |
| Installation | Rackmountable |
| Power Supply | 100–240V AC, 50/60Hz (Internal Power Supply) |
| Package Contents | ES220GMP Switch, Power Cord, Mounting Brackets, Rubber Feet, Screws, Installation Guide |
| Certification | FCC, CE, RoHS |
| Warranty | 5-Year Limited Carry-in Warranty |
Device Details & Appearance
Original Package Contents
