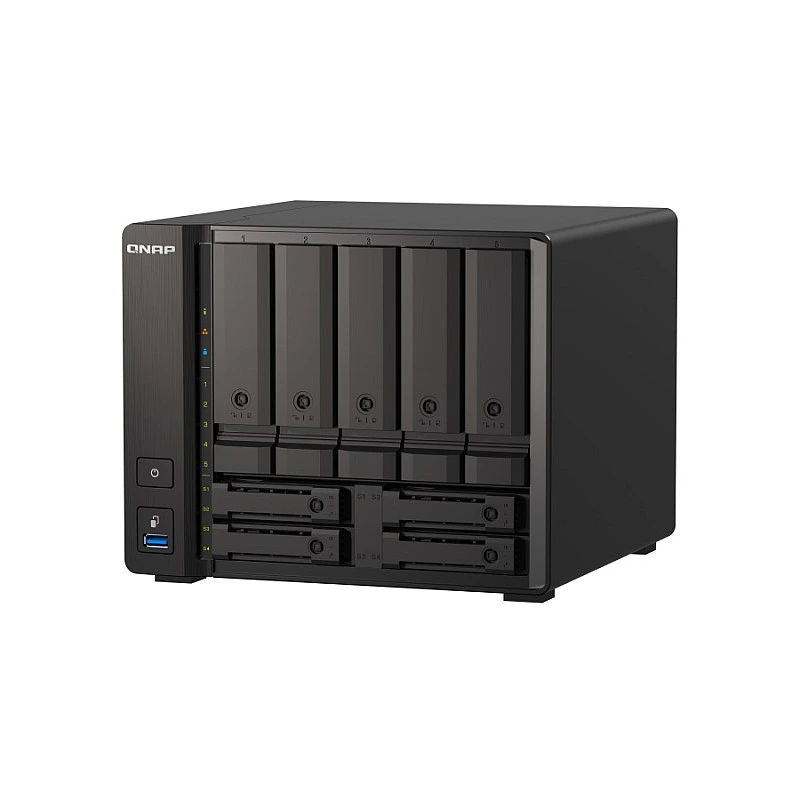

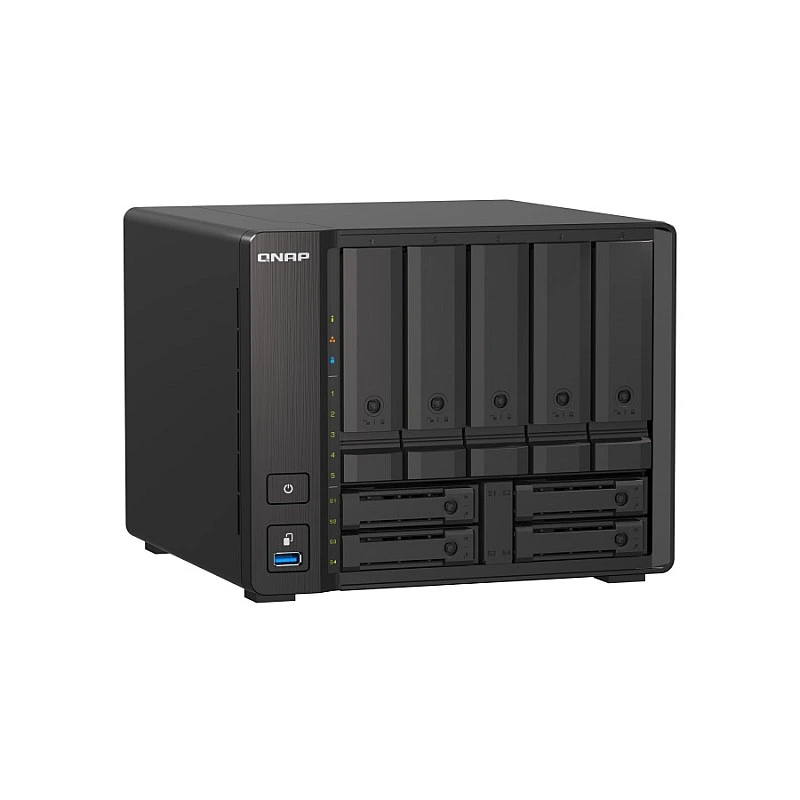

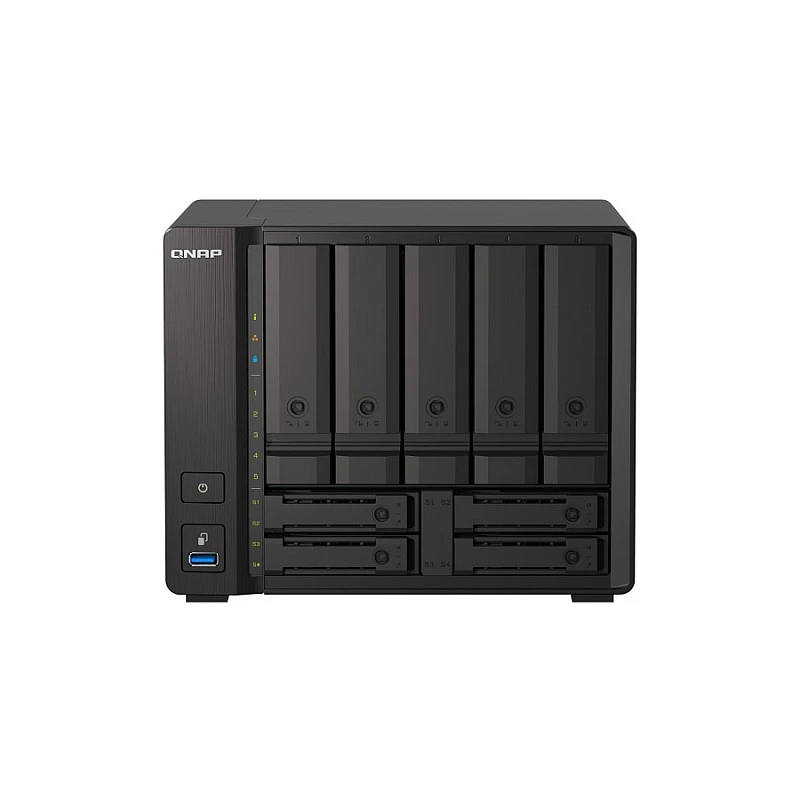

QNAP TS-h973AX-8G NAS

Featuring an AMD Ryzen™ V1000 series V1500B quad-core processor and 10GbE/2.5GbE connectivity, the 9-bay TS-h973AX packs a high-capacity hybrid storage infrastructure into a compact physical footprint. With five 3.5-inch SATA 6Gbps drive bays, two 2.5-inch U.2 NVMe SSD slots (Slot 1 & 2 support both U.2 NVMe and SATA SSDs ), and two 2.5-inch SATA 6Gbps SSD slots, the TS-h973AX can benefit from SSD caching to boost IOPS-intensive applications. With the ZFS-based QuTS hero operating system, the TS-h973AX ensures data integrity and supports block-level inline data deduplication and compression, near-limitless snapshots, and real-time SnapSync to satisfy mission-critical file servers, virtualization servers, collaborative video editing, and efficient data backup and recovery with business-class performance, job reliability, and lower overall cost.

Tech Specs:

Benefits:

• Install high-performance U.2 NVMe PCIe Gen 3 x4 SSDs or SATA 6Gb/s SSDs in the dedicated SSD slots for cache acceleration and improved random I/O.
• One 10GBASE-T Multi-Gig and two 2.5GbE LAN ports accelerate virtualization, intensive file access, large backup/restoration tasks, and media transfer.
• Experience a business-class backup center, supporting backup/restore of cloud data and VMs (including Google™ Workspace, Microsoft 365®, VMware® and Hyper-V).
• Host multiple virtual machines and containers to run a wide range of applications on the TS-h973AX.
• Cloud storage gateways realize hybrid cloud applications by working with the cache space reserved on NAS to ensure low-latency data access to the cloud.
• Flexibly scale your total storage capacity to match your business growth by connecting USB expansion enclosures (TR series JBOD).

Product Details:

Absolute performance with AMD Ryzen™ and up to 64 GB RAM
Powered by an AMD Ryzen™ Embedded V1000 series V1500B 4-core/8-thread, 2.2 GHz processor with up to 64 GB DDR4 RAM (ECC memory is supported)*, the TS-h973AX delivers aggressive yet power-smart performance for compute-demanding applications. AES-NI encryption support boosts encryption performance while also maintaining the security of your NAS data. SSDs can be flexibly installed for cache acceleration to maximize network and storage performance for data-intensive applications.
* Using ECC memory requires the removal of pre-installed memory, as you cannot use non-ECC memory with ECC memory.

Test Environment:
NAS: TS-h973AX-32G, QuTS hero h4.5.0, 5 x Seagate 1TB ST1000NM0033 HDD RAID 5, 2 x Samsung 850
Pro 512GB SSD, 2 x Kioxia U.2 SSD, compression = On, deduplication = Off
Client PC: Windows 10 Pro, Intel Core i7-6700 3.4 GHz, 64GB RAM, LAN-10G2T-X550

Dual U.2 NVMe PCIe Gen 3 x4 SSD slots for optimal I/O and low latency
The TS-h973AX has four 2.5-inch SSD slots - with slots 1 & 2 supporting both high-performance U.2 NVMe PCIe Gen 3 x4 SSDs or economical SATA 6Gb/s SSDs. For tackling latency-sensitive applications, you can take advantage of U.2 NVMe PCIe Gen 3 x4 SSDs that supply up to 32Gb/s bandwidth to attain optimized performance and efficiency. You can also use QNAP’s QDA-UMP adapter to replace U.2 NVMe SSDs with cost-efficient M.2 NVMe Gen 3 x4 SSDs to maintain high-level performance while saving more costs.
Note: U.2 SSDs cannot be installed in the SATA drive bays (including the 3.5-inch bays and SSD Slots 3 & 4).

Extend hardware warranty up to 5 years
The TS-h973AX is backed by a 3-year warranty at no additional cost. You can also purchase a warranty extension that extends your warranty coverage up to 5 years.
