- Stock: Order 1-2 Days remaining
- Brand: APC
- Model: SRT192BP2
- Weight: 91.00kg
- Dimensions: 68.27cm x 13.00cm x 43.20cm
- UPC: 731304292746
Add-on items
| Image | Product | Price | Quantity | Action |
|
APC Smart UPS On-Line 8000VA, SRT8KXLI |
- + |
Ask For Price | |
|
APC Smart UPS On-Line 10000VA, SRT10KXLI |
- + |
Ask For Price |

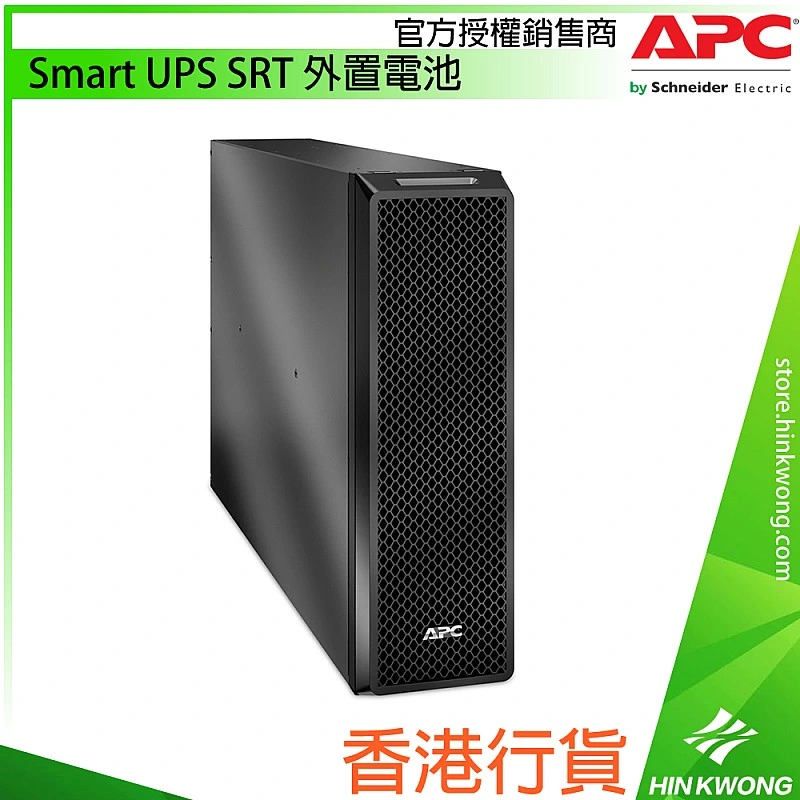

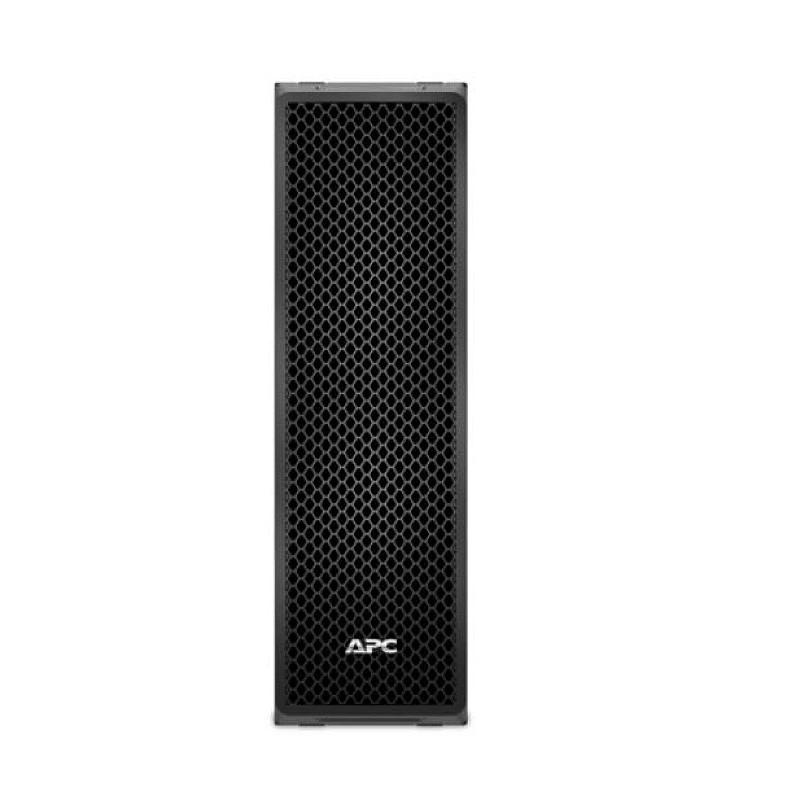

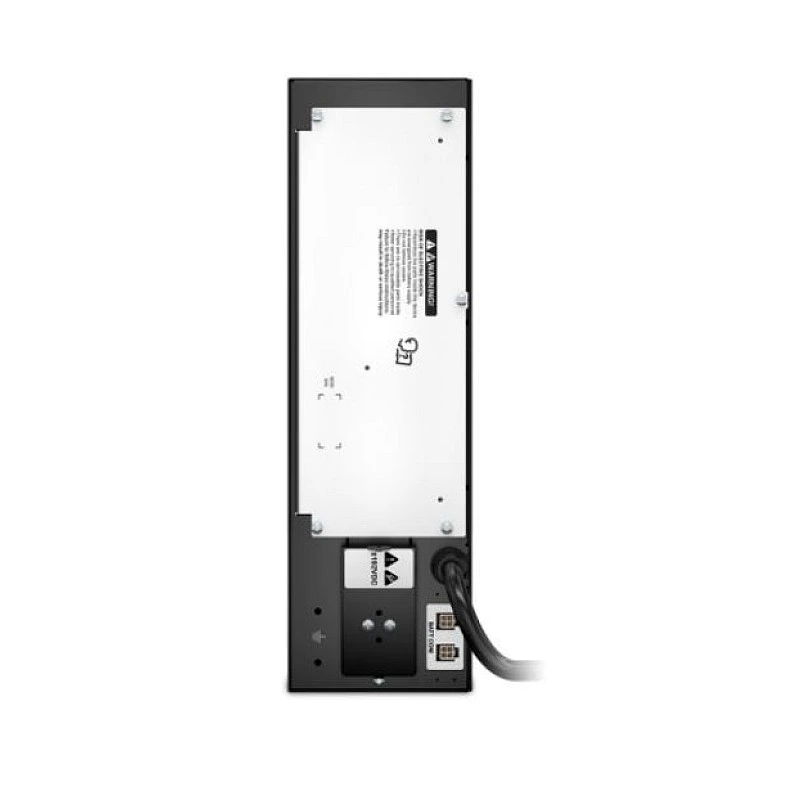

APC Smart-UPS On-Line SRT Battery Pack (SRT192BP2) — Extended Backup Power Built for 8/10kVA UPS
Provide ultimate runtime for your enterprise-grade core equipment! The APC Smart-UPS On-Line SRT Battery Pack (SRT192BP2) is designed specifically for 8kVA and 10kVA SRT series double-conversion online UPS. It features a highly efficient +/- 192V battery architecture and includes 2 built-in APCRBC140 sealed lead-acid battery modules. It supports plug-and-play hot-swappable technology, allowing seamless expansion of backup power without interrupting system operations to prevent data loss and hardware damage.
This expansion module supports powerful daisy-chaining capabilities. A single UPS unit can connect up to 10 external battery packs, significantly extending runtime. Whether deployed in tower or rack-mounted configurations, it provides predictable and stable long-lasting power protection for data centers, medical laboratories, and core network rooms.
Localized Application Scenarios (Perfect for Hong Kong)
Seamless Hot-Swappable Expansion (Hot-Swappable)
Supports online hot-swapping, allowing IT administrators to safely install or replace battery modules without interrupting the power to servers and network equipment.
Flexible Daisy-Chaining up to 10 Units (Scalable Runtime)
Exceptional scalability. A single UPS system can connect up to 10 external battery packs, providing ample backup power for the future business growth of Hong Kong enterprises.
Enterprise-Grade Dual Module Design
Built-in 2 sets of high-quality APCRBC140 original sealed lead-acid batteries. The +/- 192V high-voltage architecture is tailor-made for 8/10kVA heavy workloads.
Flexible Rack and Tower Installation (Rack/Tower)
The chassis design supports multiple installation modes. Place it as a tower or install it in a standard rack using a kit, perfectly fitting into Hong Kong's space-constrained server room layouts.
Detailed Hardware Specifications
| Battery & Communications | |
|---|---|
| Battery Type & Lifespan | Maintenance-free sealed Lead-Acid battery (leakproof) | Expected lifespan 3 - 5 years |
| Nominal Battery Voltage | +/- 192 V |
| Replacement Battery Model & Quantity | APCRBC140 | Quantity: 2 sets |
| Hot-Swappable Support | Supported (Can be installed and replaced without interrupting equipment operation) |
| Maximum Expansion Quantity | Up to 10 units (per single UPS unit) |
| Physical & Environmental Specifications | |
| Physical Dimensions (H x W x D) | 43.2 cm x 13.0 cm x 68.27 cm (Tower mode) |
| Net Weight | 91.0 KG (200.6 lbs) |
| Operating Temperature | 0 - 40 °C |
| Relative Humidity & Elevation | 0 - 95 % (non-condensing) | Operating elevation 0 - 3,000 meters |
| Equipment Mounting Mode | Tower / Rack-mounted (requires separate kit) |
| Hong Kong Authorized Goods Warranty | 2-year warranty, includes parts replacement (labor not included) |
Runtime & Compatibility
| Supported UPS Systems | Compatible Host Model Examples | Extension Effect |
|---|---|---|
| 8kVA Capacity Models | SRT8KXLI, SRT8KRMXLI, etc. | Maximizes backup runtime |
| 10kVA Capacity Models | SRT10KXLI, SRT10KRMXLI, etc. | Maximizes backup runtime |
| Maximum Expansion Limit | A single system can daisy-chain up to 10 external battery packs | |
Product Accessories & Package Contents
