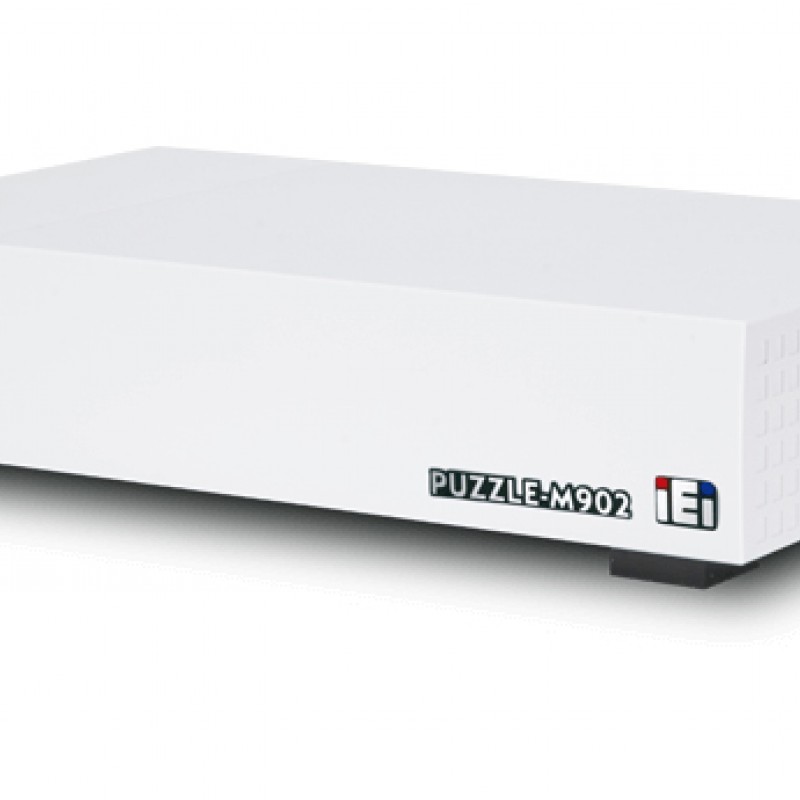

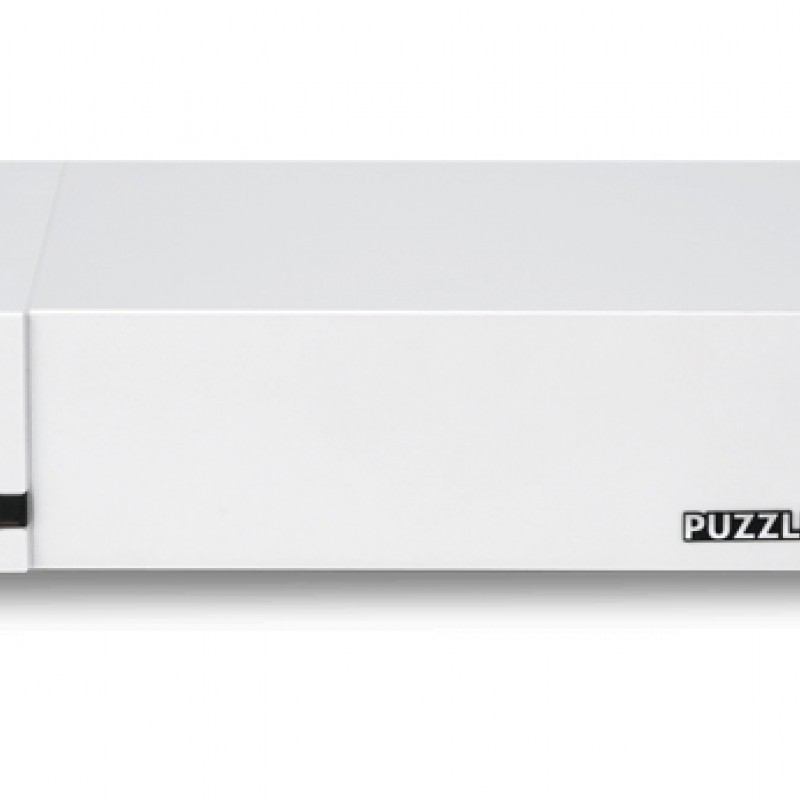

iEi Software Defined Router, PUZZLE-M902-CN1-R10

Get Your Office Ready for New Gen. Software Defined Router
The growing number of connected personal and IoT devices has led to an overall increase in network density. The PUZZLE-M902 is IEI‘s latest product series – Software Defined Router, which is pre-installed with OpenWrt and features high speed and high flexibility to optimize your network performance.
This series is integrated with 2.5GbE and 10GbE ports and the interfaces can be defined with various combination to meet your demands. Moreover, its function can also be expanded by open source applications supported in the OpenWrt community. It is ideally suited for a wide range of applications, such as SOHO a nd SMB networking infrastructure.

Tech Specs:

Benefits:

• Marvell® CN9130 quad-core Armv8 Cortex-A72 @ up to 2200 MHz

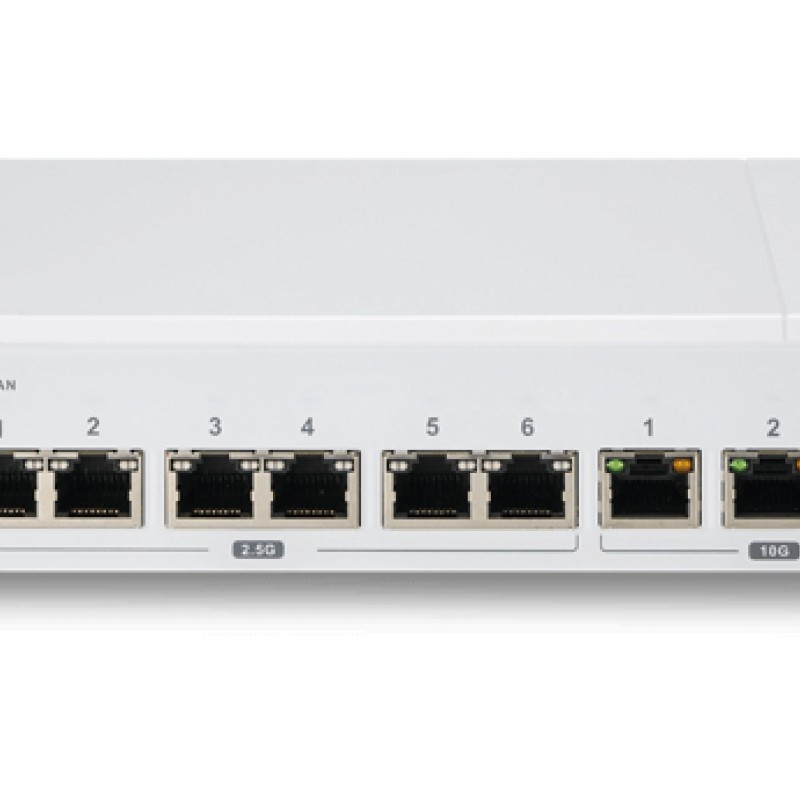

• Six 2.5GbE RJ-45 ports (two via Marvell CN9130; four via Marvell 88F8215)
• Three 10GbE RJ-45 ports (one via Marvell CN9130; two via Marvell 88F8215)
• 4 GB eMMC; one console port (pin-header); one reset button
• LED indicators: status/power & WAN/LAN interface indicator
