The high-capacity TVS-h1288X features a powerful Intel® Xeon® W processor and allows for installing two QNAP QXP-T32P Thunderbolt™ 3 PCIe expansion cards (sold separately) to attain four Thunderbolt™ 3 ports, making it a perfect match for Thunderbolt™-equipped Mac® and Windows® users for high-speed media collaboration. The built-in 10GbE and 2.5GbE connectivity supports Port Trunking and failover to further satisfy bandwidth and reliability demanding business applications. Running the ZFS-based QuTS hero operating system, the TVS-h1288X supports block-level inline data deduplication and compression, near-limitless snapshots, real-time SnapSync, and read/write cache technologies, helping your business achieve reliable service-level agreement performance, from creative workflows to file server, virtualization server, and efficient file backup and recovery applications.

Tech Specs:

Benefits:

• Attain quad-port Thunderbolt™ 3 connectivity by installing two QXP-T32P expansion cards in the PCIe Gen 3 x4 slots. Note: QXP-T32P expansion cards are sold separately
• Two 10GBASE-T and four 2.5GbE LAN ports accelerate virtualization, intensive file access, large backup/restoration tasks, and media transfer.
• PCIe slots allow for installing 5/10/25/40GbE adapters, QM2 cards, or graphics cards to increase application performance.
• 4K media playback and real-time transcoding; directly output videos to an HDMI display (up to 4K @30Hz).
• Supports virtual machines and containerized apps, centralized storage, backup, sharing, disaster recovery, and storage expansion.
• Cloud storage gateways realize hybrid cloud applications by working with the cache space reserved on NAS to ensure low-latency data access to the cloud.

Product Details:

Six cores up to 4.7 GHz with up to 128 GB DDR4 ECC memory
Intel® Xeon® W processors are designed for a wide range of creative professionals. Powered by an Intel® Xeon® W-1250 6 cores/12 threads 3.3 GHz processor (Burst up to 4.7 GHz), the TVS-h1288X has enormous processing power to drive virtual machine performance. The integrated Intel® AES-NI encryption engine boosts encryption performance while also maintaining the security of NAS data. With dual-channel modules and 4 Long-DIMM slots, the TVS-h1288X’s DDR4 ECC memory can be upgraded up to 128 GB for memory-intensive and complex multitasking workloads.

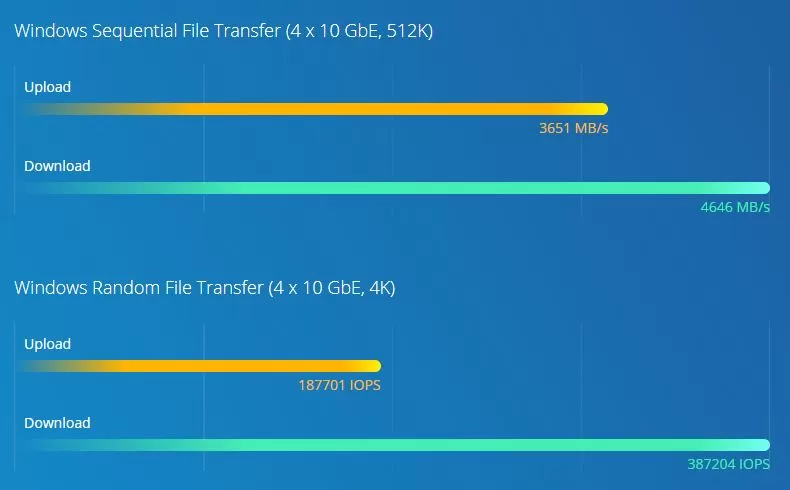

NAS: TVS-h1288X (25GbE CX4 x2 running at 10GbE x4 port)
OS: QuTS hero h4.5.0
Volume Type: 8 x Seagate ST6000VN0033 6TB HDD (RAID 5) + 2 x Samsung 960 PRO 2TB SSD cache
Client PC: Windows Server 2016, Intel Core i7-7700 3.6 GHz, 32 GB RAM
IOmeter: 4GB, 30-sec ramp up time, 3-min random run time, 8 workers, 16-outstanding

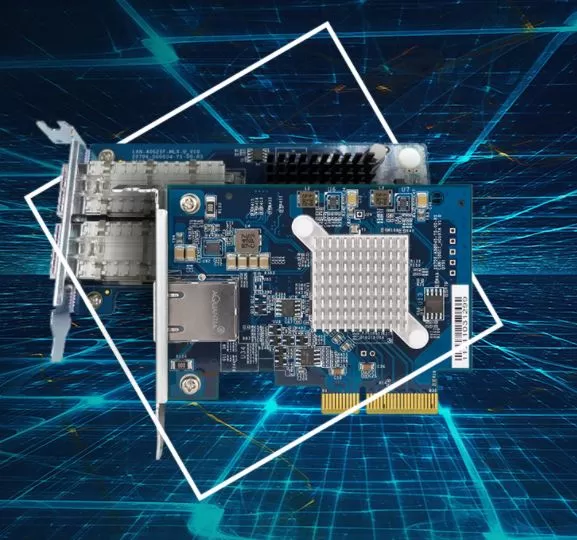

PCIe expansion for 40GbE connectivity or graphics cards
Install various expansion cards based on your needs to fulfill greater I/O capability.

Extend hardware warranty up to 5 years
The TVS-h1288X is backed by a 3-year warranty at no additional cost. You can also purchase a warranty extension that extends your warranty coverage up to 5 years.

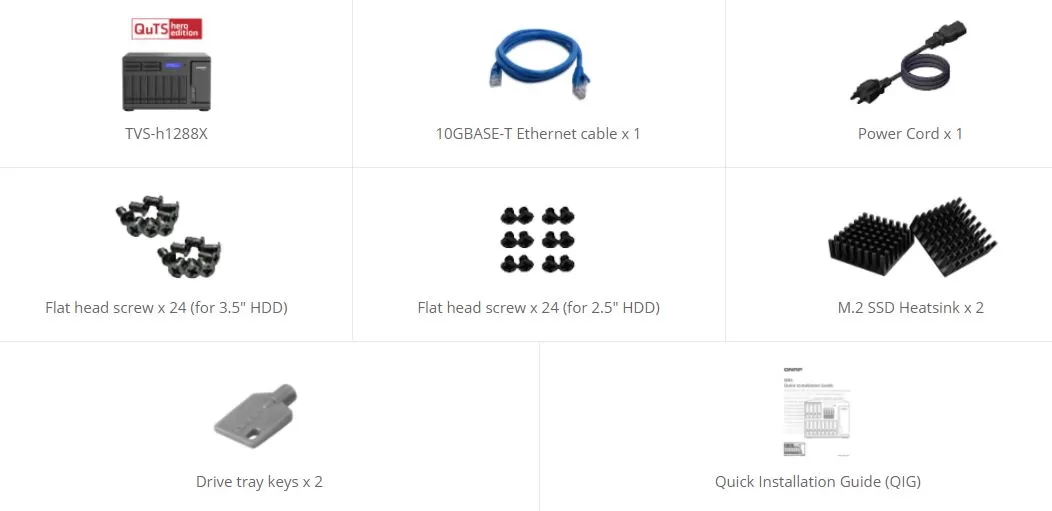

Package Contents:
